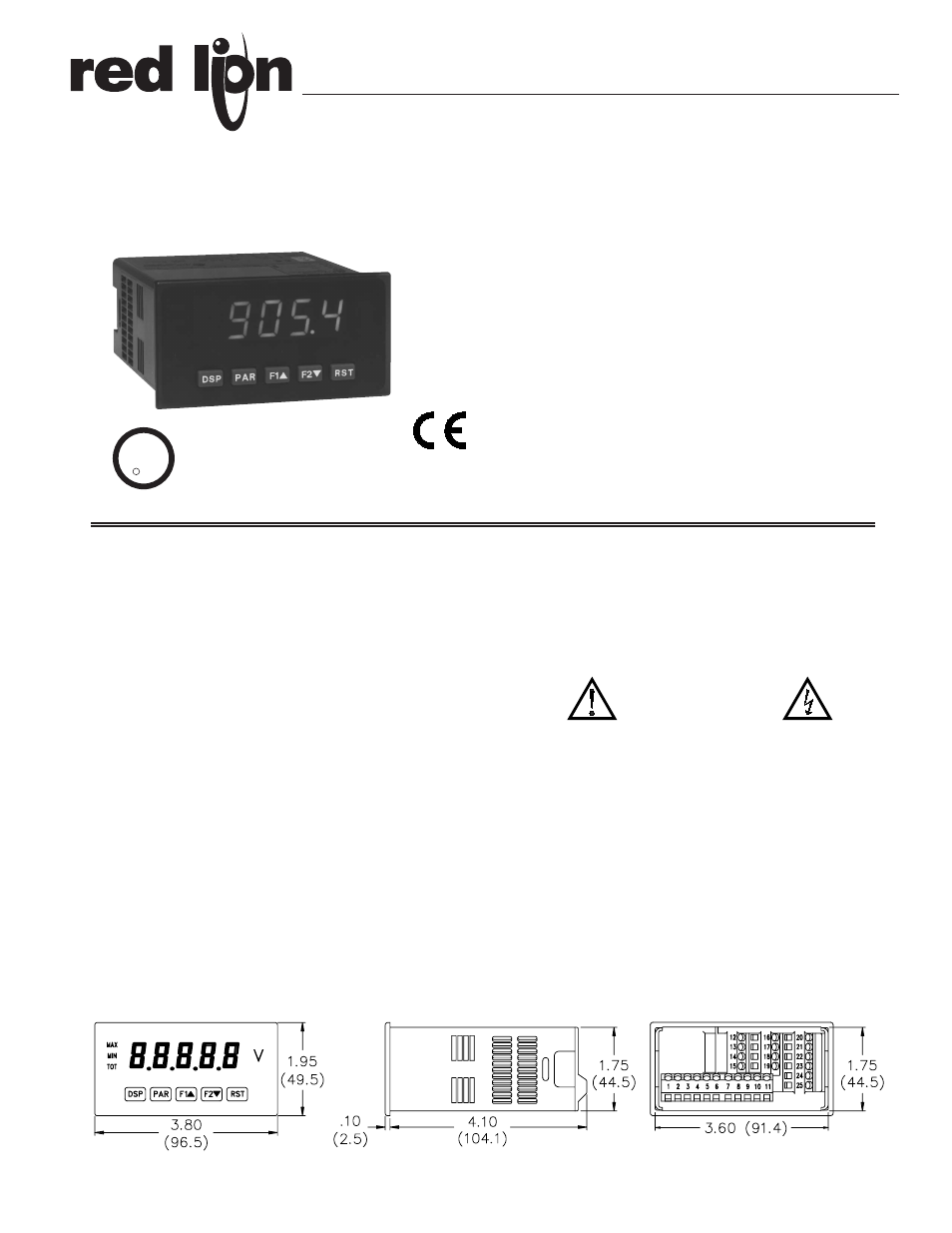

background image

1

O

PROCESS, VOLTAGE, CURRENT, AND TEMPERATURE INPUTS

O

5-DIGIT 0.56" HIGH LED DISPLAY

O

PROGRAMMABLE FUNCTION KEYS/USER INPUT

O

9 DIGIT TOTALIZER (INTEGRATOR) WITH BATCHING

O

OPTIONAL CUSTOM UNITS OVERLAY W/BACKLIGHT

O

NEMA 4X/IP65 SEALED FRONT BEZEL

GENERAL DESCRIPTION

The DP5 Panel Meters offer many features and performance capabilities to

suit a wide range of industrial applications. These meters are available in three
different models to handle various analog inputs, including DC Voltage/Current,
Process, and Temperature Inputs. Refer to pages 4 and 5 for the details on the
specific models.

The meters provide a MAX and MIN reading memory with programmable

capture time. The capture time is used to prevent detection of false max or min
readings which may occur during start-up or unusual process events.

The signal totalizer (integrator) can be used to compute a time-input product.

This can be used to provide a readout of totalized flow, calculate service
intervals of motors or pumps, etc. The totalizer can also accumulate batch
weighing operations.

Once the meters have been initially configured, the parameter list may be

locked out from further modification.

The meters have been specifically designed for harsh industrial environments.

With NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE
requirements, the meter provides a tough yet reliable application solution.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in this

literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.

MODEL DP5 – 1/8 DIN ANALOG INPUT PANEL METERS

DIMENSIONS In inches (mm)

Note: Recommended minimum clearance (behind the panel) for mounting clip installation is

2.1" (53.4) H x 5.0" (127) W.

Bulletin No. DP5-E
Drawing No. LP0546
Released 12/07

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

CAUTION: Risk of electric shock.

C

US LISTED

US LISTED

UL

4

IND. CONT. EQ.

51EB
