HMP230 SERIES
M210225en-B
User's Guide
75
9.7.
Mechanics
Housing material
G-AlSi12 (DIN 1725)
Housing classification
IP 65 (NEMA 4)
Bushing
for 7...10 mm diameter cable
(8 x 0.5 mm
2
shielded cable)
Sensor protection
stainless steel sintered filter
(part no. 16452)
PPS grid with stainless steel
netting (part no. 16720)
PPS grid (part no. 16562)
Housing dimensions
145 x 120 x 65 mm
Sensor head dimensions
See figures 34 to 37.
HMP233 cable diameter
+80 °C cable
6 mm
+120 °C cable
5.5 mm
HMP234/235/237/238 cable diameter
5.5 mm
Weight (without display cover and power supply module):
HMP231
970 g
with
2 m cable
5 m cable
10 m cable
HMP233 (+ 80°C cable)
1100 g
1200 g
1450 g
HMP233 (+ 120°C cable)
1100 g
1300 g
1600 g
HMP234
1300 g
1600 g
2100 g
HMP235
1300 g
1600 g
2100 g
HMP238
1380 g
1550 g
1820 g
Weight of display cover
420 g
Weight of power supply module
240 g

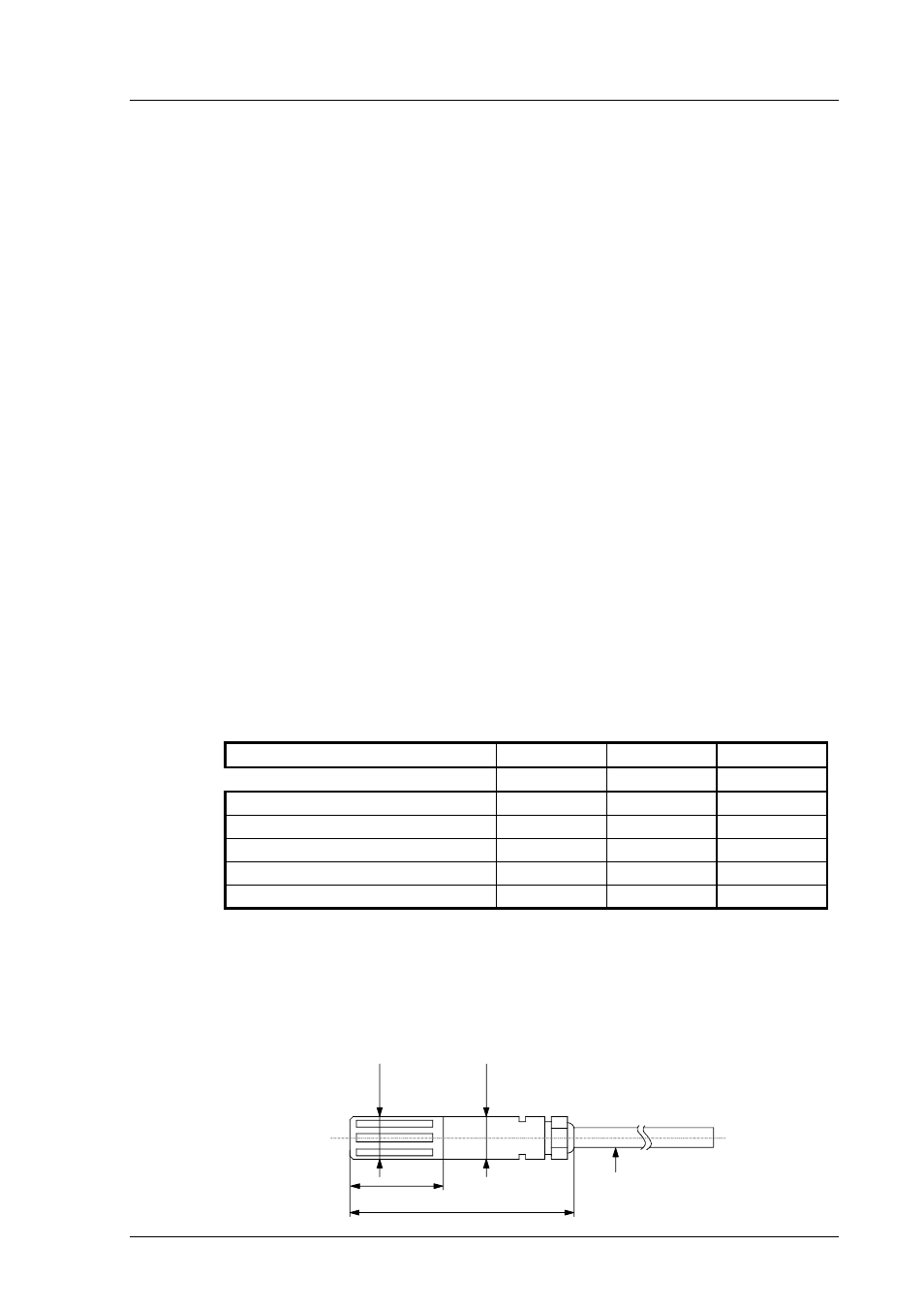

Ш
1
3
.5
Ш
1
3
.5
cable length 2000,
5000 or 10 000 mm
29
70
