Vaisala HMP230 User Manual
Page 31
HMP230 SERIES
M210225en-B
User's Guide
25
OPENED COVER OF THE HMP 230
X15
CHANGE OF SETTINGS
DISABLED
Figure 22

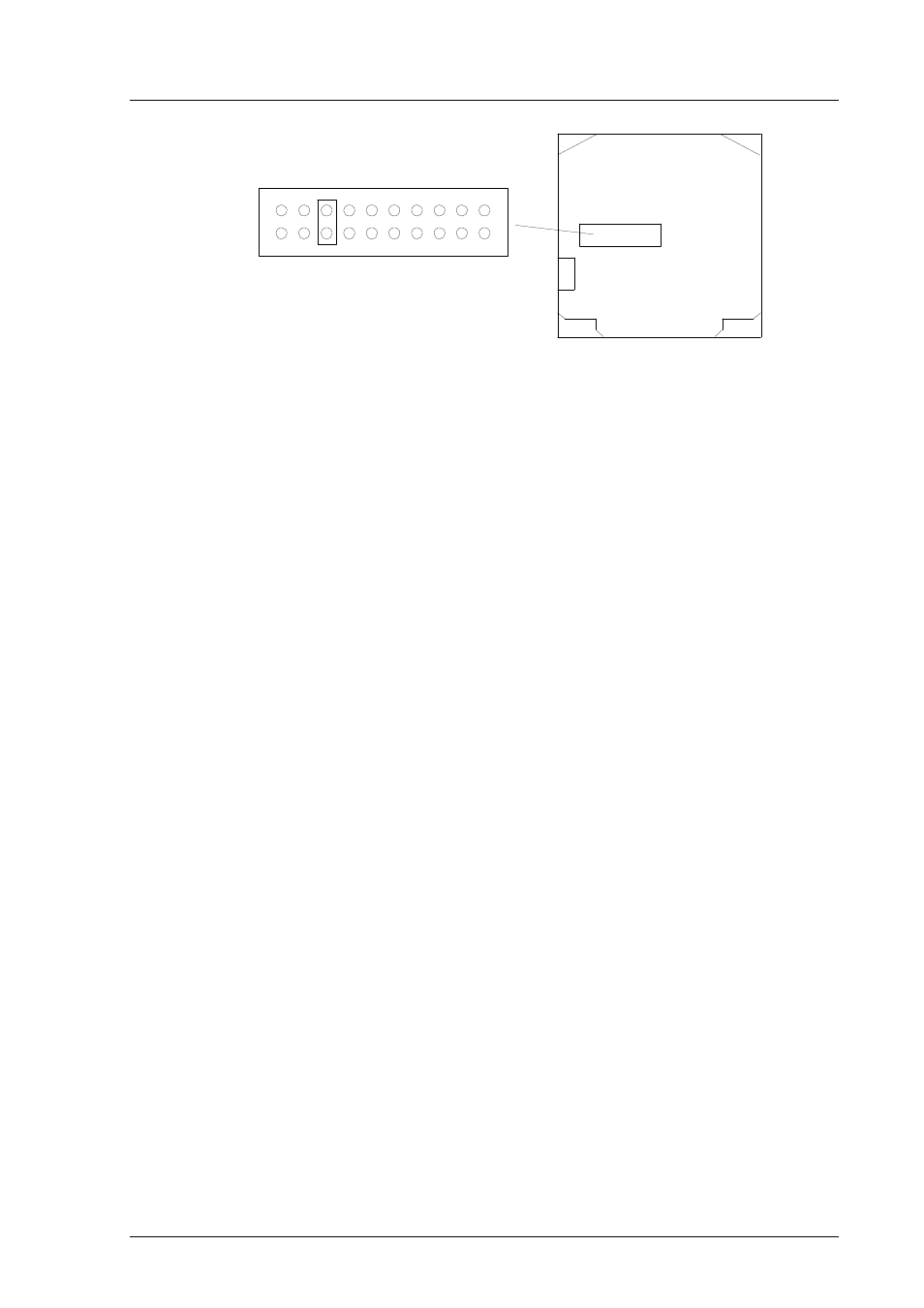

Location of the security lock jumper
When the security lock jumper is connected, some commands cannot be used,
see Chapter 5.
If you wish to take into use variables that are not included in the configuration
of your transmitter, contact Vaisala or a Vaisala representative.
4.3.
Selecting the analogue outputs
The HMP230 transmitters can be ordered with the required current or voltage
outputs already selected. If the outputs need to be changed, move the jumpers
in connector X15 into positions as shown in Figure 23.
