HMP230 SERIES
M210225en-B Appendix 8: Connectors
143
1.4 Instructions for connecting and mounting the counter pieces
The counter piece has to be grounded as shown in Figure 1.4 in order to
maintain a complete EMC protection. The recommended cable is a shielded
cable with an outer diameter of 4 - 6 mm, e.g. PFSK 6 x 0.22 mm.
1 4
3
2
5
wire connections:
see tables
bend the sheath
over the pole piece
no strands on
the O-ring
O-ring
first tightening second tightening

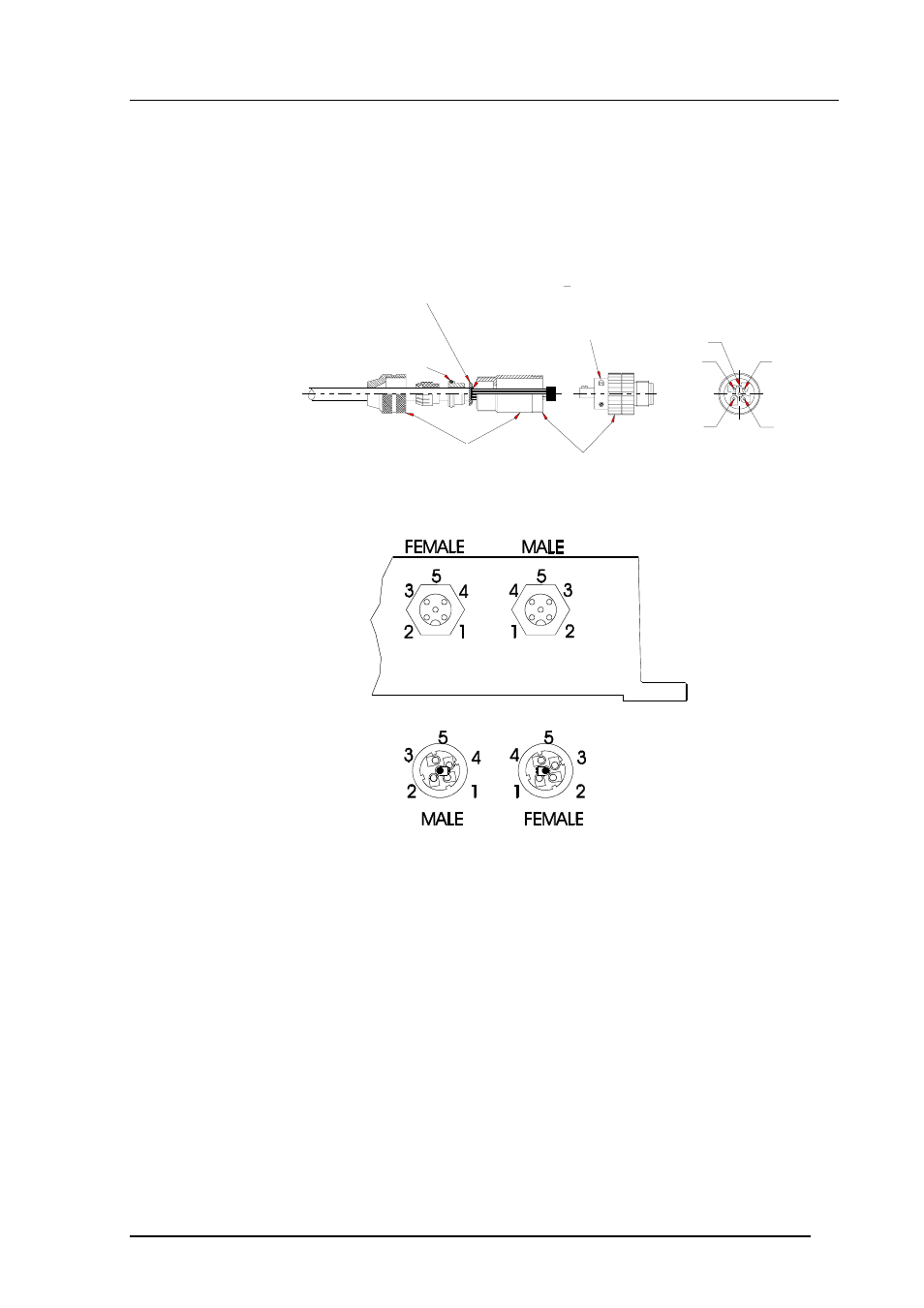

Figure 1.4 Connecting and grounding the connector
Figure 1.5 Counter piece numbering and their connection
