Console Location
5
Table & Shelf Placement
The console comes with a kickstand so that the console can be displayed on any flat
surface. To install the kickstand:
1. Locate the two keyholes on the back of the console.
2. Place the two round tabs on the kickstand into the
to keyholes and slide the kickstand up into place.
3. Install the two round rubber feet on the bottom of
the console.
4. Install the two rubber channel feet on the kickstand.
Wall Mounting
The console mounts to the wall using two keyholes located on the back of the case (the
same two keyholes are used to hold the console kickstand in place) and two #6 x 1'' pan
head self-threading screws included in the hardware kit.
To mount the console on a wall:
1. Use a ruler to mark two mounting
hole positions on the wall 4
15
/
16
''
inches (125 mm) apart. Use the guide
holes on the kickstand as a template
for the keyhole spacing.
2. Use a drill and a
3
/
32
” or
7
/
64
'' (2.4 or
2.8 mm) drill bit to drill two pilot
holes for the screws.
3. Using a screwdriver, drive the two #6
x 1'' pan head self-threading screws
into the wall. Leave at least
1
/
8
'' (3
mm) between the wall and the heads
of the screws.
4. Guide the two keyholes on the back
of the console over the two screws.

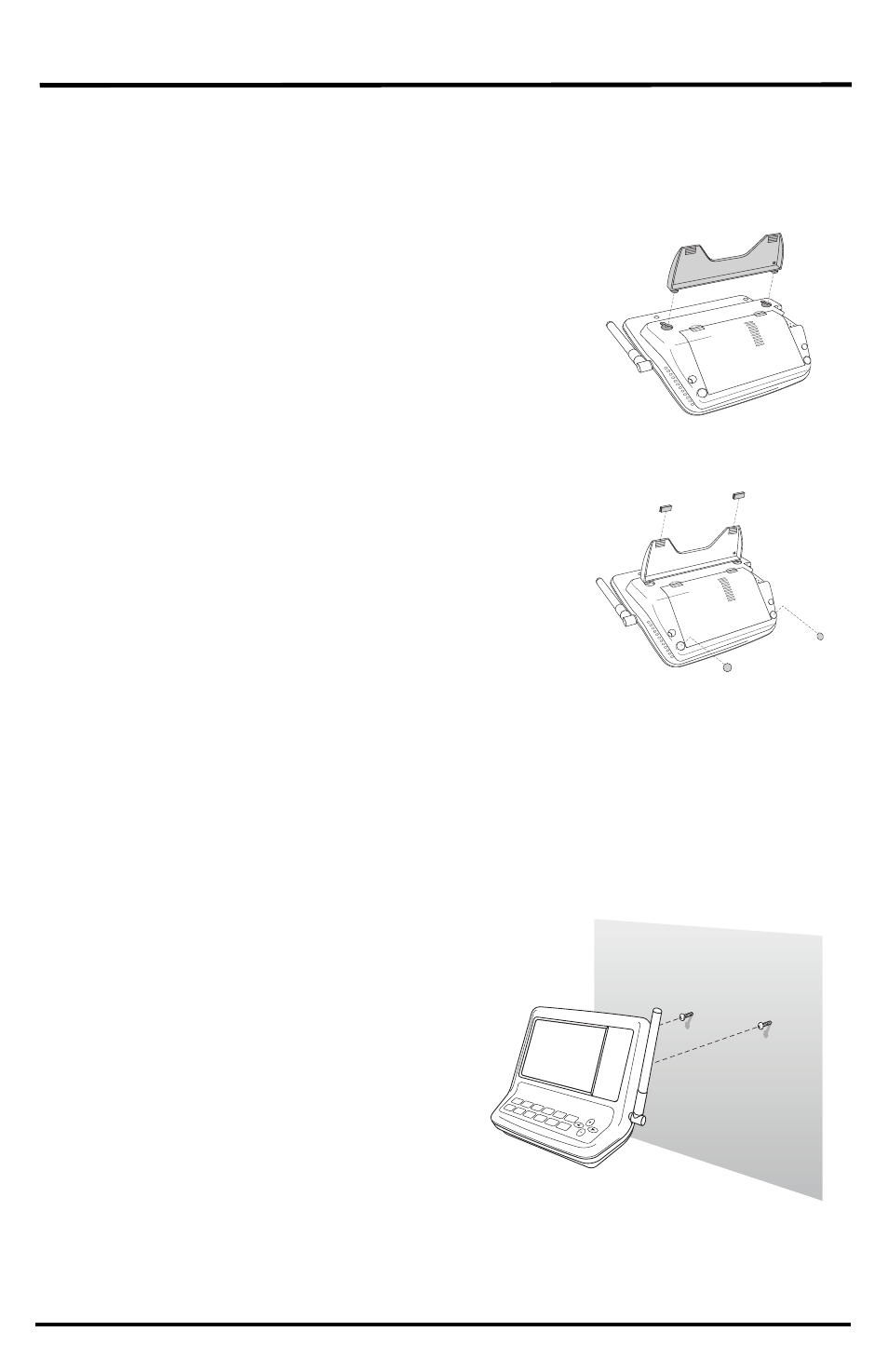

Securing the kickstand
Installing the rubber feet
Mounting the console on a wall
