Page 28

User Manual

6. In this position the Media Backing coming out of the large slot in the front cover should

be aligned with the Labels coming out of the printer.

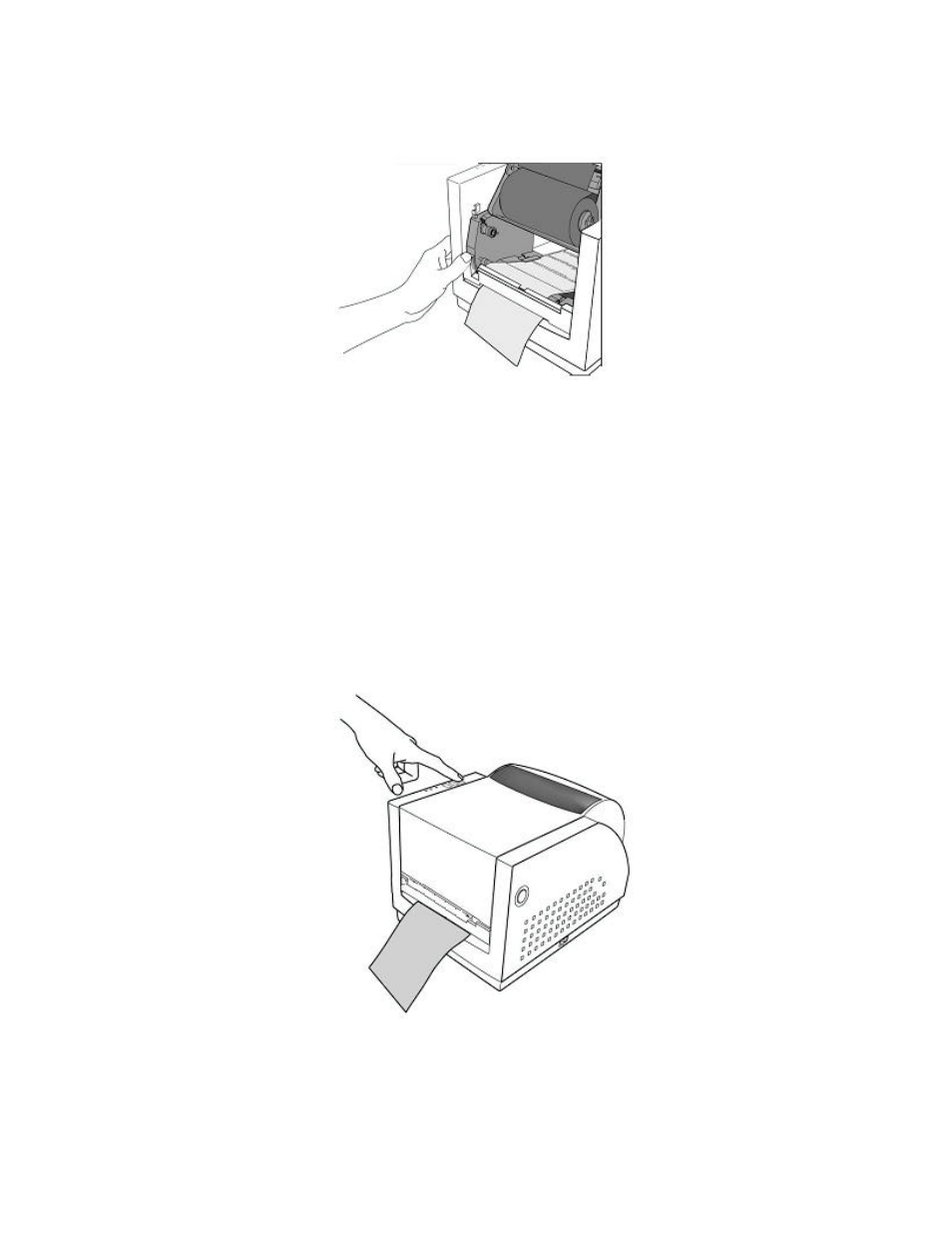

Figure 28 – Media Exit Position

Note:

If not, then pull down the Pinch Roller Latch and gently pull the backing until they are
aligned. Make sure to close the Pinch Roller Latch when done.

7. Close and lock the print head module by pressing firmly until the right and left Print

Head Latches snap shut.

8. Close the Media Access Cover.

9. Press the Feed Button to set the printer to the next Top of Form.

Note:

In this position the trailing edge of the media may be caught between the Platen and the
Printhead and will not be removable until the next printing. Verify that all Peeler
Features in the Setup Menu are properly set (BackFeed, Present Distance, and Peeler
Sensor) for your application.

Figure 29 – Pinch Roller Only Option
