8. With the printing side up, feed the Media off the Media Roll under the Print Head
Module and over the platen.

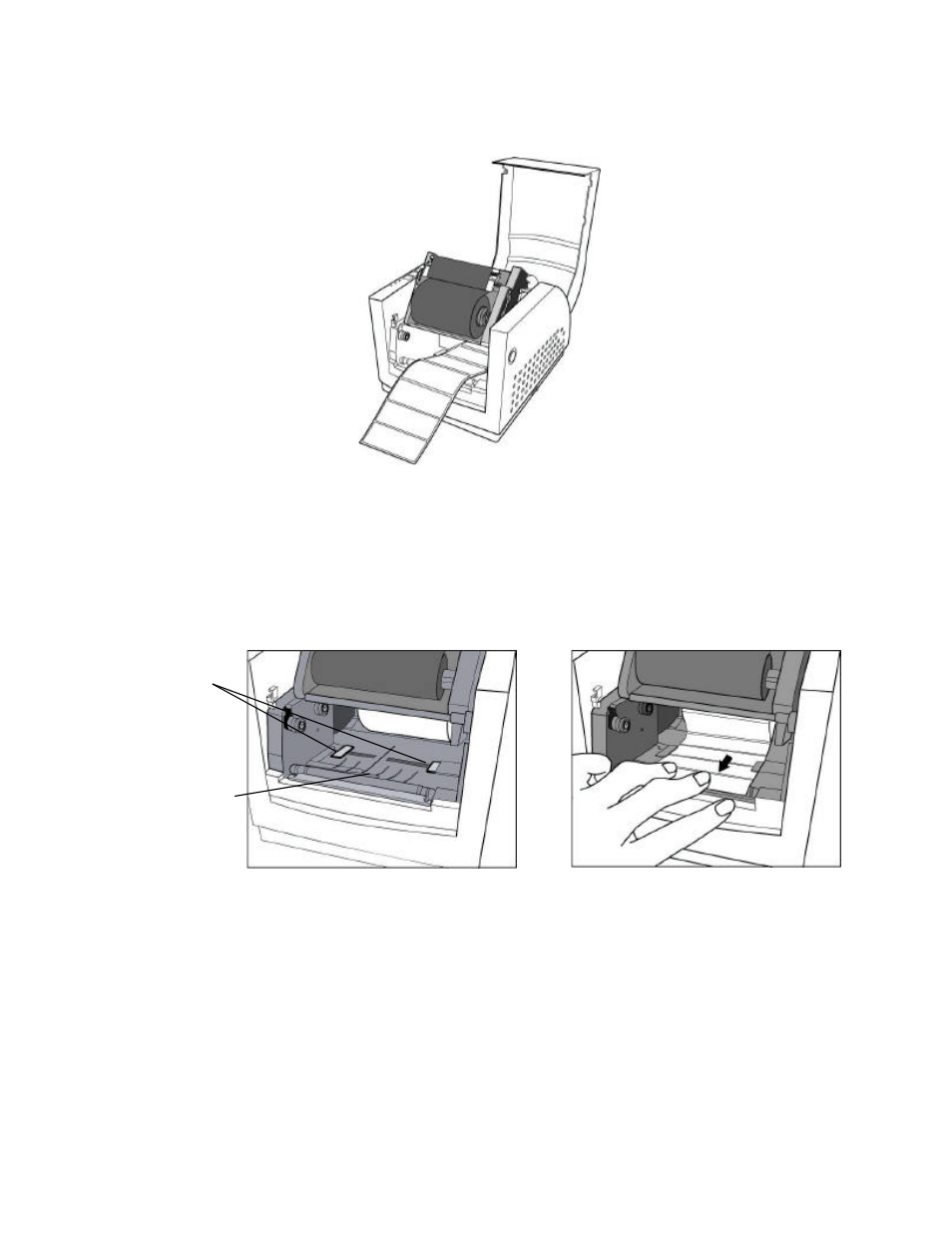

Figure 18 – Loading Media over Platen Roller
9. Position the Media Sensor to the desired location.
To position the Media Sensor examine the back of the Media Stock. As the media is
pulled through the printer position the sensor to avoid holes or preprinted information on
the back of the stock. These may cause incorrect top of form alignment. Typical media
stock backing is blank, therefore position the sensor in the middle of the stock.
Figure 19 – Positioning Media Guides and Sensor
10. Close the Right and Left Media Guides until the Media Stock is under the “U” shaped
guides. This will keep the stock from going side to side.
Note: The Right and Left Media Guides are ‘U’ shaped parts that are located at the bottom of the
paper path. Both Guides move together to hold the stock in the Center of the printer.
If the printer has the Peeler, Pinch or Cutter options go to either the appropriate Loading Media
sections.
Media Guides
Media Sensor
