Loading Media with Pinch Roller Only option
This procedure should only be used with labels that do not have sticky back. This option increases the
surface of the media around the platen, thus resulting in extra pulling force.
Note: This option expects that one-inch of the leading edge of the media will not be
printed upon.
1. Install media as indicated in the Loading Media Section. Return to these steps when
directed to do so.
2. Pull down the Pinch Roller Latch.

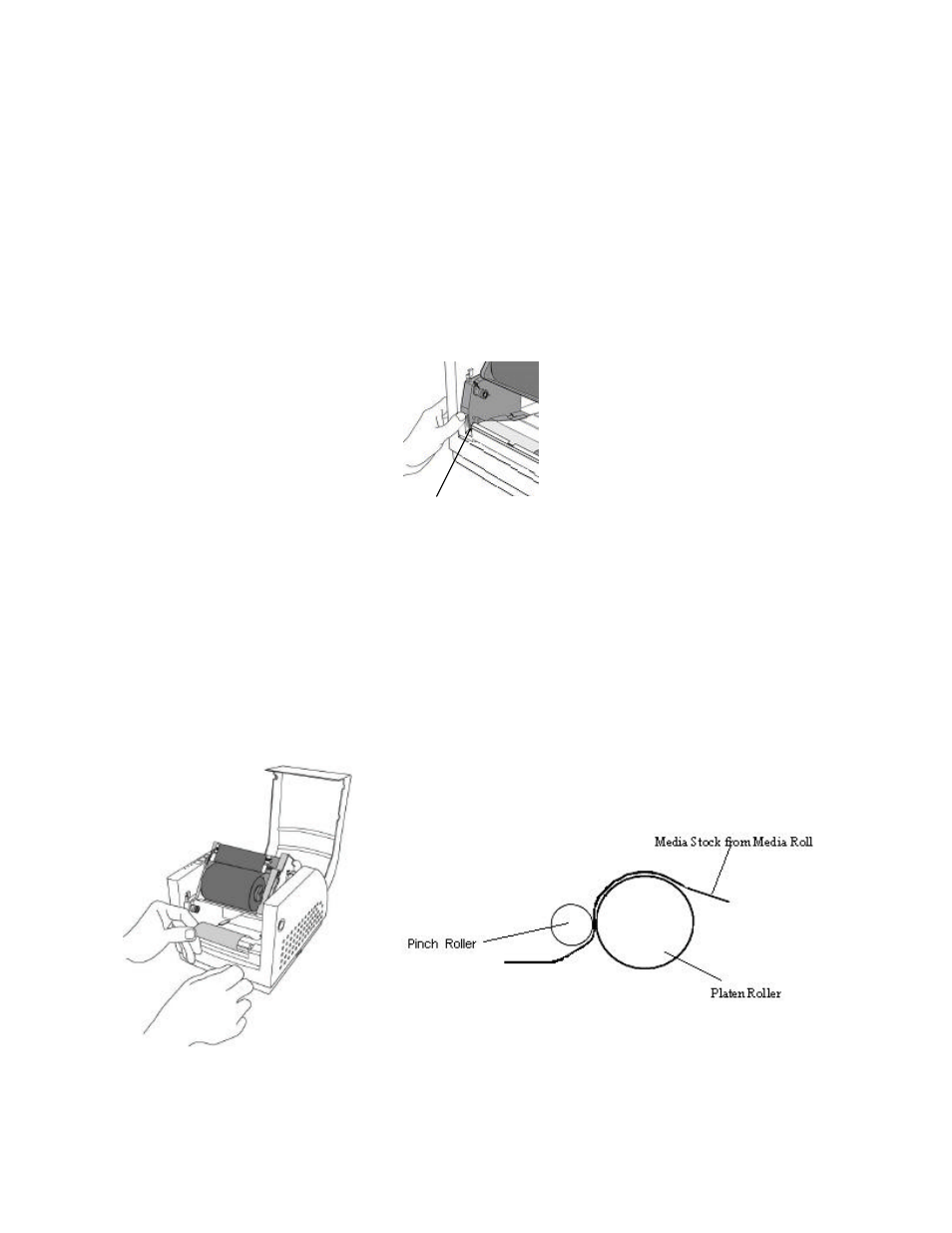

Figure 26 – Pinch Roller Latch
3. Push the Media between the Pinch Roller and the Platen Roller. Continue to push the
stock until it comes out of the larger slot in the front cover.
4. If the Media will not push through, then press the Feed button one time.
5. Once the media comes out of the larger slot, gently roll the excess media back onto the
Media Roll until the Backing is snug around the Platen Roller.
Figure 27 – Feeding into the Pinch Mechanism
Pinch Roller Latch
