JKSOGS166 JKS Front Trackbar + Sector Shaft Reinforcement Installation 2 Page
Description Part # QTY
A Trackbar Chassis Bracket 03038 1
B 7/16” x 1” GR5 Bolt 13155 2
C 7/16” Flat Washer 33084 4
D 7/16” Locking Nut 37266 2
E Steering Sector Pillow Block 03041 1
F Spherical Bearing 165100 1
G Sector Bearing Nut 03042 1
H 7/8” Split Washer 33899 1
I Pillow Block Frame Mount 03043 1
J 7/16” x 1-3/4” GR8 Bolt 18877 1
K 7/16” Split Washer 33624 1
L 3/8” x 1” GR5 Bolt 13105 2
FRONT TRACKBAR + SECTOR SHAFT
REINFORCEMENT KIT

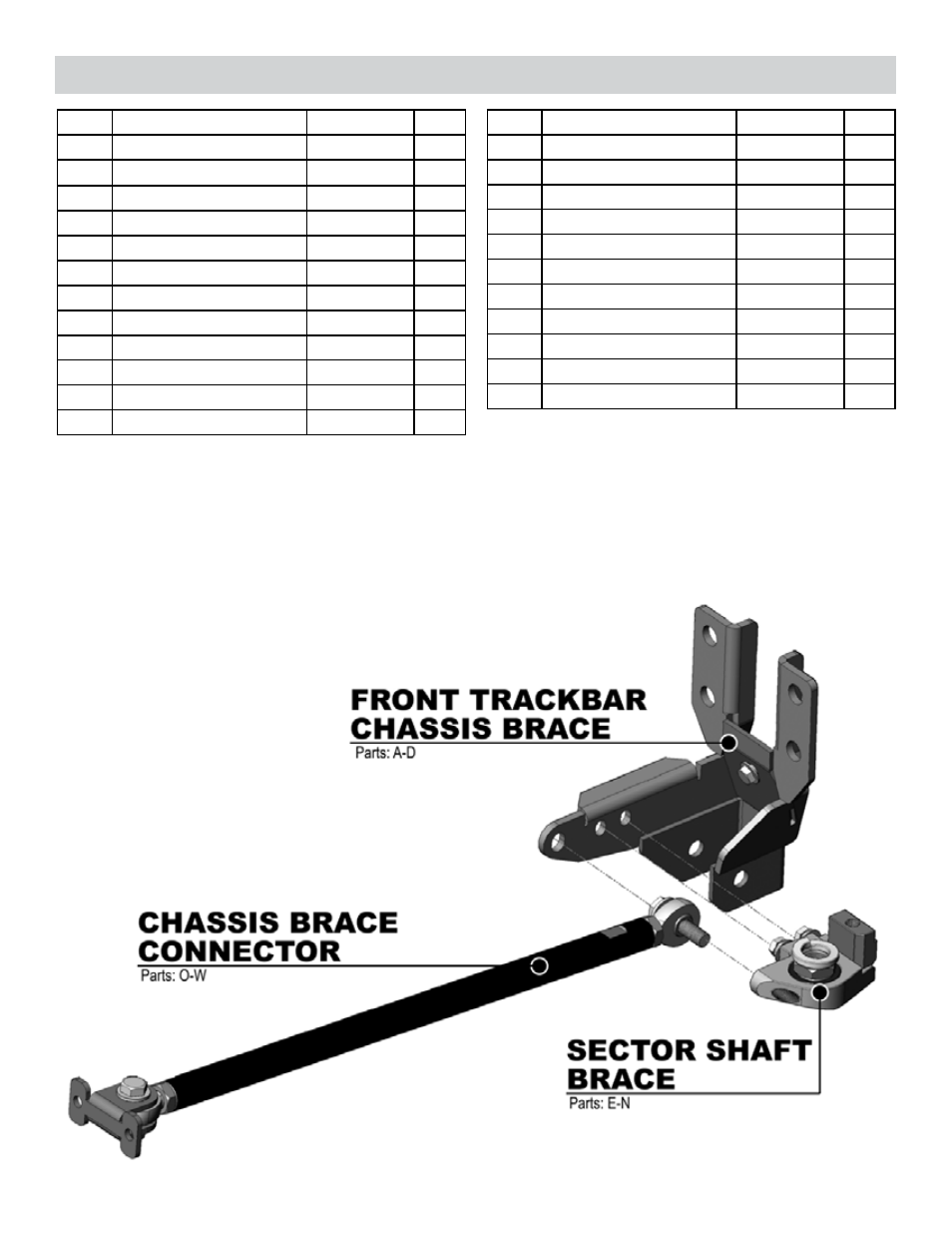

The Front Trackbar + Sector Shaft Reinforce-
ment Kit actually consists of three intercon-
nected products, as illustrated below.
To keep the parts organized, each product
has been individually packaged, and for ease
of fitment, each product will be
installed separately.
For best results, please
follow the sequence
outlined in these
instructions.
Description Part # QTY
M 3/8” Flat Washer 33082 2
N 3/8” Split Washer 33622 2
O Chassis Connector Tube 03039 1
P Frame Bracket 03040 1
Q 1/2” x 5/8” Rod End LXM8-10 1
R 1/2” x 5/8” LH Rod End LXML8-10 1
S 5/8” Jam Nut 36264 1
T 5/8” LH Jam Nut 36964 1
U 1/2” x 2” GR5 Bolt 17211 2
V 1/2” Flat Washer 33086 4
W 1/2” Locking Nut 37308 2
Parts
