JKS Bar Pin Eliminator Installation
Page 1
INSTALLATION
INSTRUCTIONS
Product: Bar Pin Eliminators™
Part Number: JKS9604
Welcome
CONGRATULATIONS on purchasing new Bar Pin
Eliminators from JKS Manufacturing. We are commit-
ted to providing you with the best products available
and your satisfaction is our first priority.
PLEASE READ these Installation Instructions careful-
ly, and save them for future reference, as they contain
important installation and maintenance information.
Important
NOT COMPATIBLE WITH Old Man Emu™ shock
absorbers.
INSTALLATION OF BAR PIN ELIMINATORS effec-
tively reduces the static length of shock absorber
by 0.40”.
Tools Required
Metric/Standard Socket Wrench Set
6mm or 1/4” Allen Head Socket with Long Extension
Torque Wrench
Wheel Bearing Grease
Bench Vice or C-Clamp
Hammer and Punch *
Sanding or Grinding Wheel *
Factory Service Manual (recommended)
* Asterisk denotes tools that are not required for some applica-
tions. Thoroughly read instructions first to determine which tools
will be required for your application.
Parts
Description
Part #
QTY

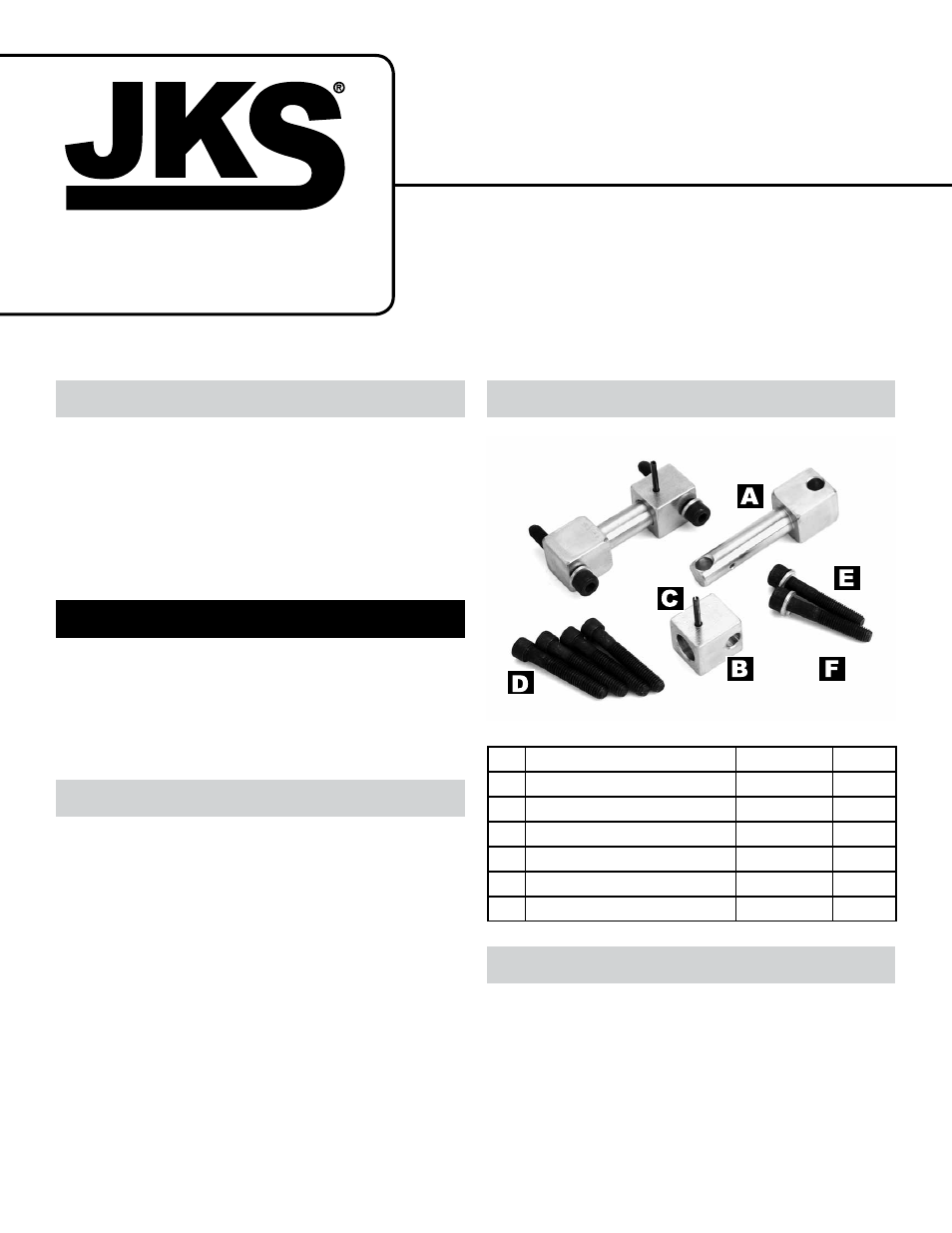

A Cross Pin / Block Combo
03075
2
B Mounting Block
03074
2
C 1/8” Roll Pin
64083
2
D M8 x 50mm Cap Bolt
39593
4
E 5/16” x 2” Cap Bolt
23261
4
F Split Washer
33620
4
Installation
1. REMOVE SHOCK ABSORBERS
Remove the rear shock absorbers per factory ser-
vice manual instructions for your vehicle.
Remove the factory bar pin from the upper shock
absorber bushing.
HINT: A hammer and punch
may be useful for removing bar pin.
