HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 93
4 Managing ports
The data windows provide port information and port statistics for selected ports. This section describes the
following tasks that manage ports and devices:
• ” Port Information data window ” on page 93
• ” Port Statistics data window ” on page 96
• ” Viewing and configuring ports ” on page 99
• ” Resetting a port ” on page 105
• ” Testing ports ” on page 105
Port Information data window
The Port Information data window ( Figure 48 ) displays detailed port information for the selected ports. To
open the Port Information data window, click the Port Info data window tab.

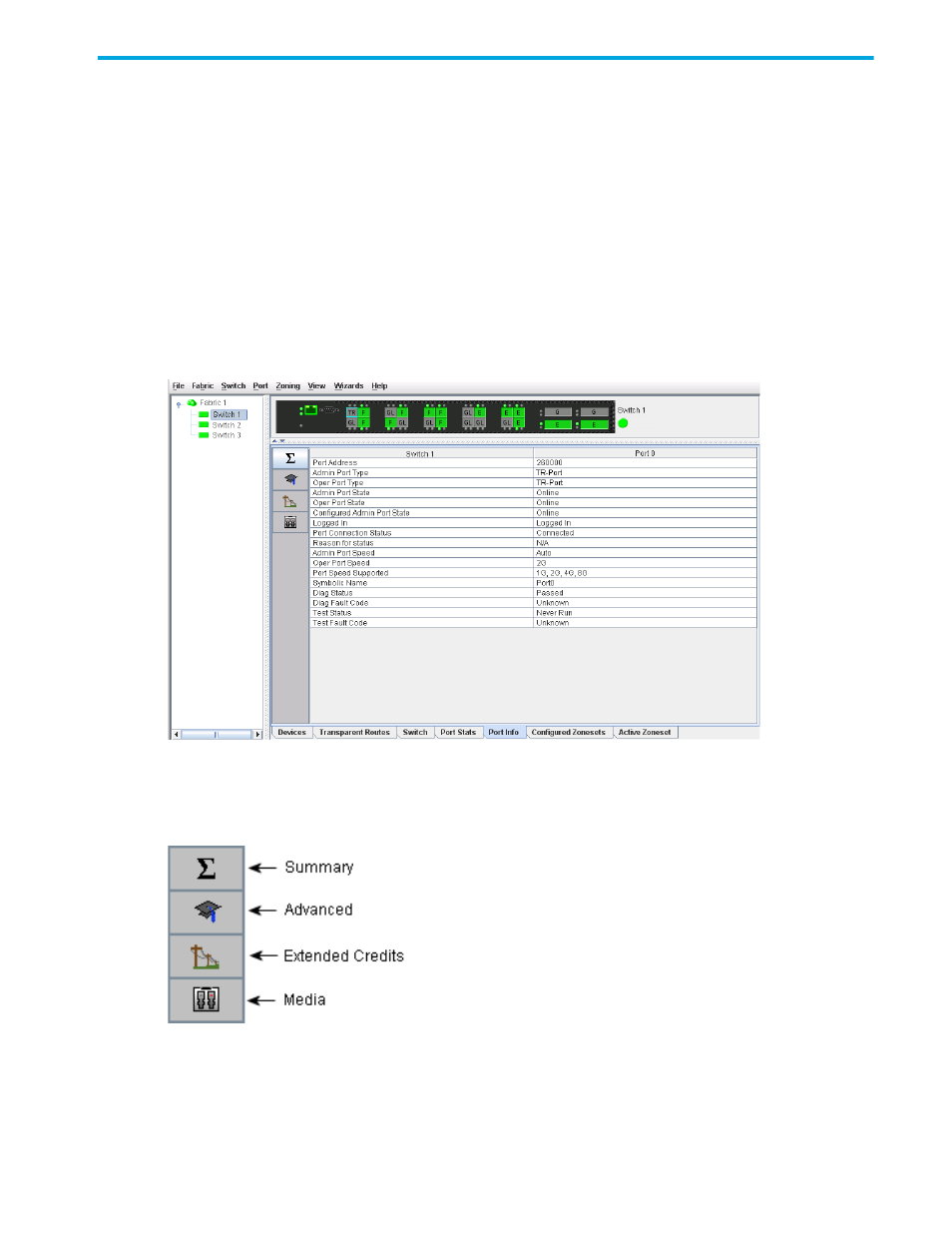

Figure 48 Port Information data window
Information in the Port Information data window is grouped and viewed by the Summary, Advanced,
Extended Credits, and Media buttons ( Figure 19 ). Click a button to display the corresponding information
in the data window on the right.
Figure 49 Port Information data window buttons
The Port Information data window fields are described in Table 19 .
