64
Port performance statistics
The Port Statistics data window displays port performance data for the selected ports. Click the Port Stats
data window tab in the faceplate display to open the Port Statistics data window. See ” Port statistics data
window ” on page 88 for a description of the Port Statistics data window entries.
The
Statistics drop-down list is available on the Port Statistics data window, and provides different ways to
view detailed port information. Click the down arrow to open the drop-down list. Open the drop-down list
and select
Absolute to view the total count of statistics since the last switch reset. Select Rate to view the
number of statistics counted per second over the polling period. Select Baseline to view the total count of
statistics since the last time the baseline was set. Click
Clear Baseline to set the current baseline.
Port status and operational information
The Port Information data window displays port detail information for the selected ports. Click the Port Info
data window tab in the faceplate display to open the Port Statistics data window. See ” Port information
data window ” on page 85 for a description of the Port Information data window entries.
McDATA Web Server Configured Zonesets data window
The McDATA Web Server Configured Zonesets data window displays all zone sets, zones, and zone
membership in the zoning database, shown in
Figure 27 . Click the Configured Zonesets data window tab
to open the Configured Zonesets data window. Click the Active Zonesets data window tab to view the
active zone set in the Active Zonesets data window.
The Configured Zonesets data window uses display conventions for expanding and contracting entries that
are similar to the fabric tree. An entry handle, located to the left of an entry in the tree, indicates the entry
can be expanded. Click the entry handle, or double-click the following entries to expand or collapse them:
• A zone set entry expands to show its member zones.
•
A zone entry expands to show its members by device port World Wide Name, or device port Fibre
Channel address.

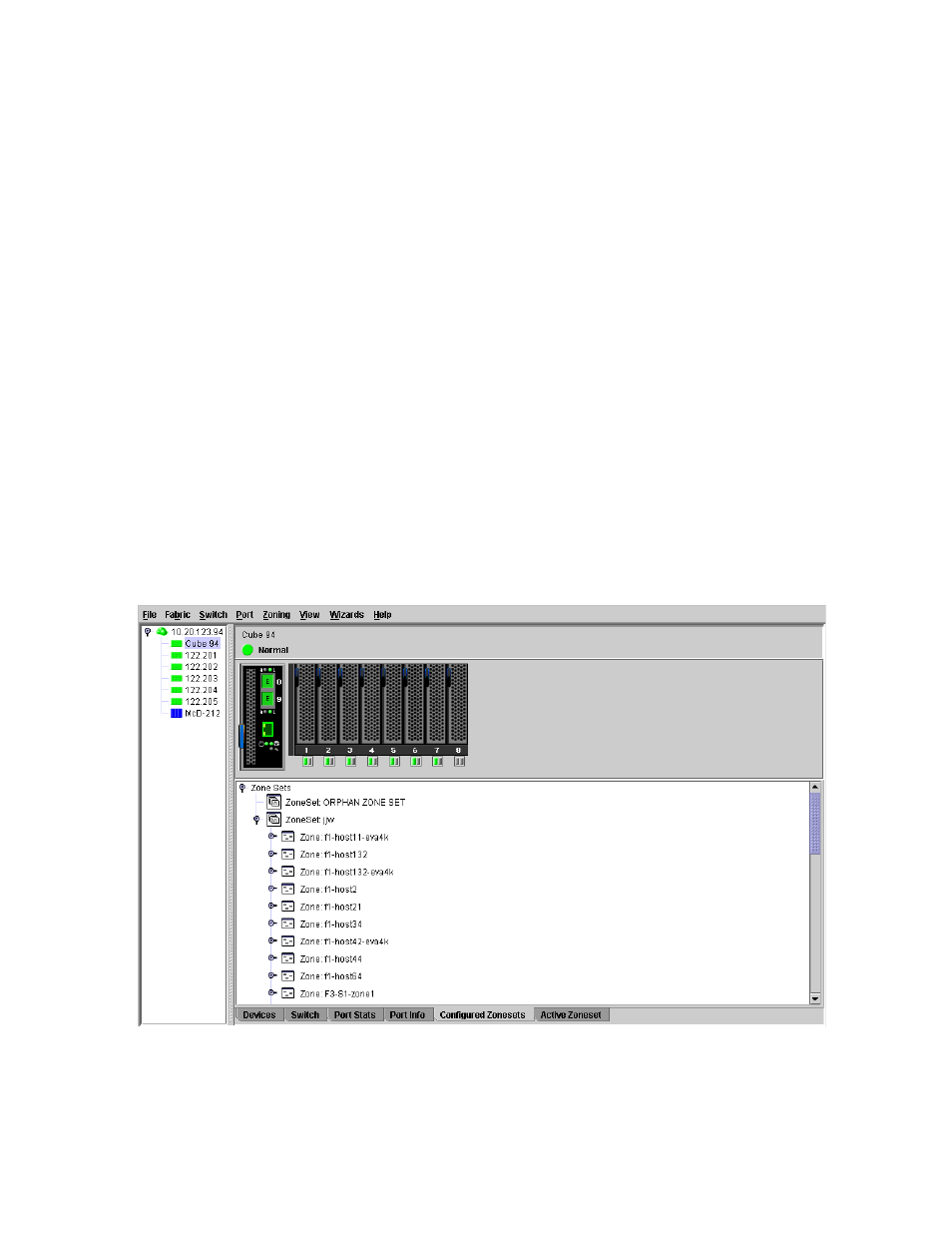

Figure 27 McDATA Web Server Configured Zonesets data window
