TrueCopy for the XP128/XP1024/XP10000/XP12000

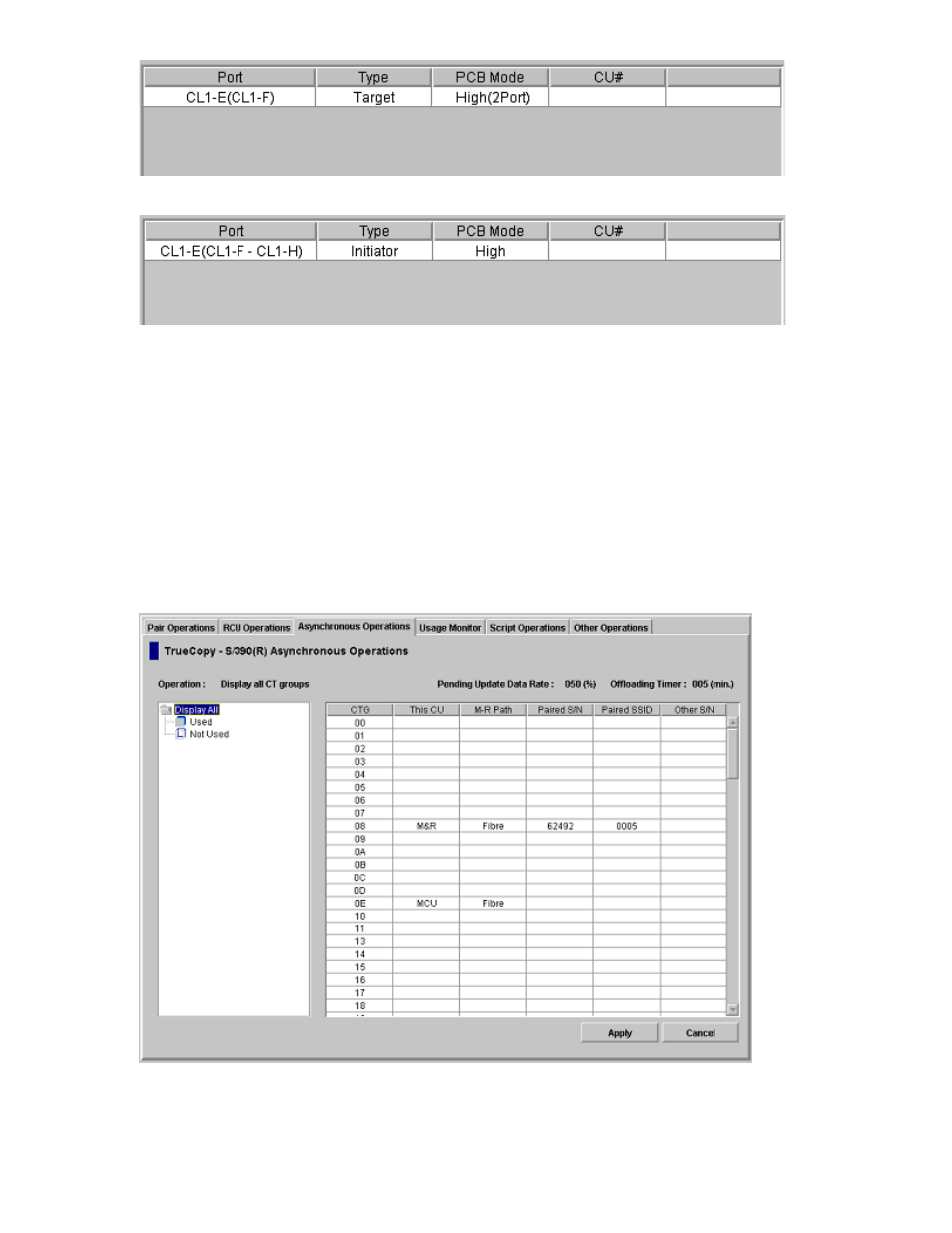

Figure 34
High-speed (2 port), two ports per row
Figure 35
High-speed, four ports per row
In the Port tree, the port type can be selected to display the specified information in the Port list. For
example, when RCU Target is selected in the Port tree, the system looks for ports of Initiator from all the
ports entered and lists the RCU Target ports in the Port list as shown in the following figure. Only one Port
type can be selected in the tree.
Asynchronous Operations Window
Clicking the Asynchronous Operations tab displays the Asynchronous Operations window, which shows
the consistency group information for the connected disk array and provides access to the TC390A pair
operations (see ”
The Asynchronous Operations window consists of the information about the SideFile and the information
about the consistency group that is displayed in the Consistency Group tree and the Consistency Group
list.
Figure 36
Asynchronous Operations window
The Operation information indicates the current operation performed on the Asynchronous Operations
window.
