4.

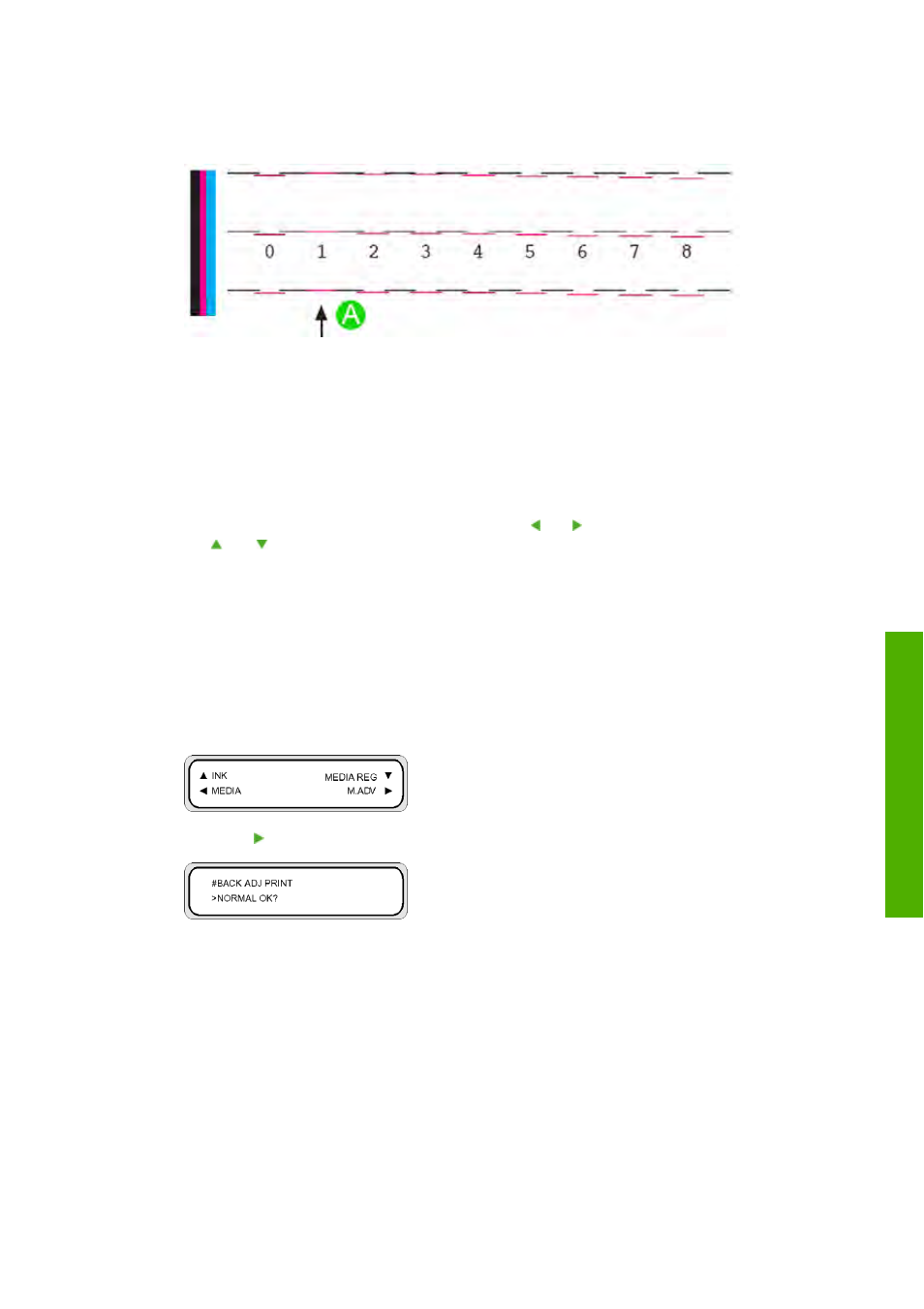

A. For each printhead line, identify the value where the reference printhead is aligned. In this example
image, for the Magenta line the correction value is 1 (indicated as A in the image).
To set printhead nozzle position adjustment values:
1.
Select ADJUST and press the
OK
key.
2.
Select NOZZLE POS VAL and press the
OK
key.
3.
Select the printhead color to be adjusted, and press the
OK
key.
4.
Insert the value and press
OK
key.
Select the number you want to change by using the and keys and change the numeric value using
the and keys.
Line sensor position adjustment
This test pattern is used only for HP Support purposes to calibrate the line sensor.
Back feed adjustment print
This option prints a pattern so that you can adjust how much back feed is applied to a media type that you
are loading.
1.
Press the
ONLINE
key.
2.
Press the key, and select BACK ADJ PRINT and the
OK
key.
Select the print mode you usually use for the media that you are calibrating.
Select the NORMAL media feed adjustment print if adjusting the high speed mode.
Select a parameter based on your print mode.
Parameters:
●
NORMAL — standard and high speed print modes (720 x 720 dpi – 8 passes).
●
H-QUAL — high quality print mode (720 x 720 dpi – 16 passes).
