HP Designjet 8000 Printer series - Manual (Page 134)

Select the number you want to change by using the and keys and change the numeric value using
the and keys.

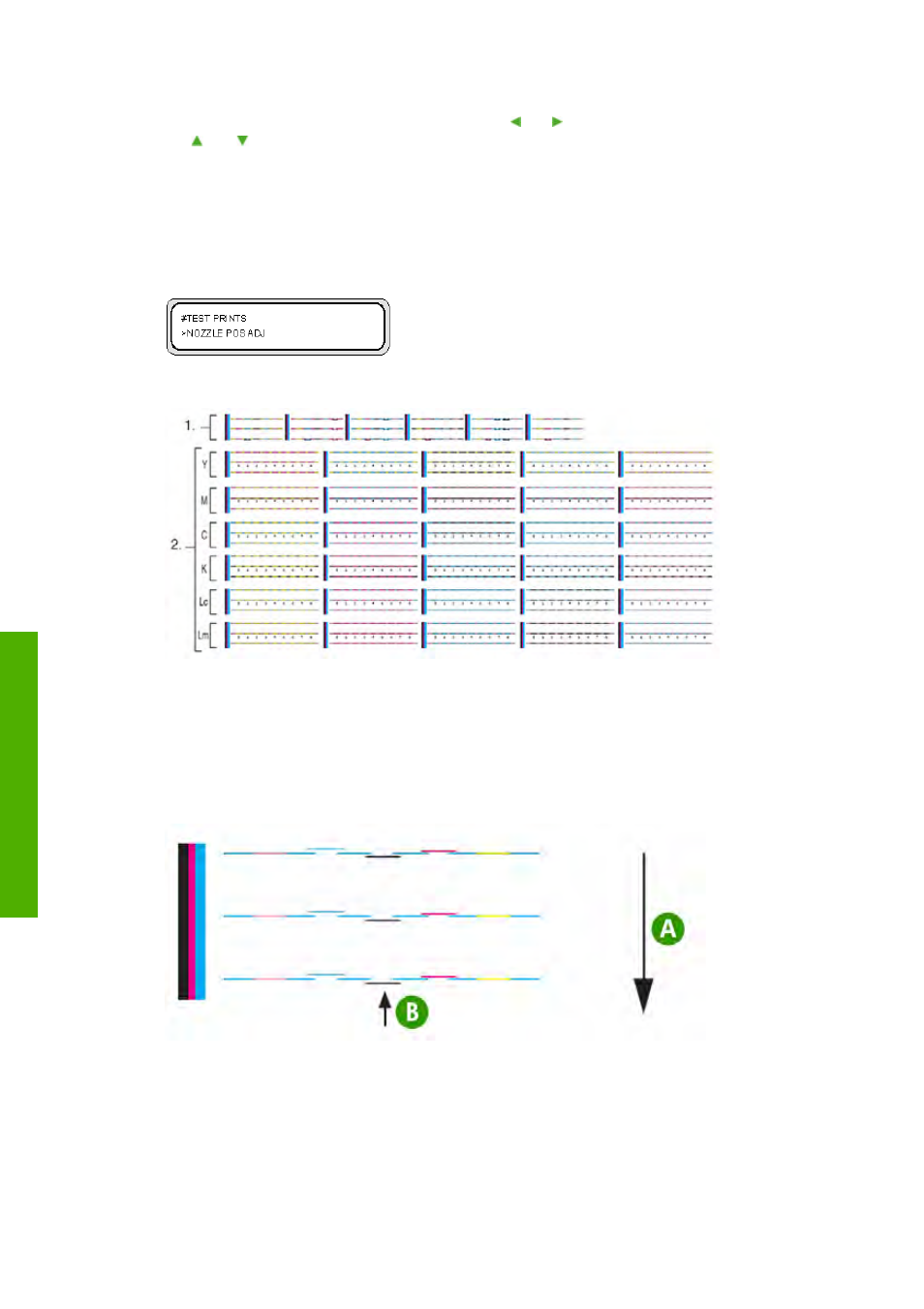

Printhead nozzle position adjustment
Use the printhead nozzle position test patterns to calibrate the printhead nozzle positions.
To print the printhead nozzle position pattern:
1. In the TEST PRINTS menu scroll to the NOZZLE POS ADJ option and press the OK key.
2. Press the OK key to start printing.
1. Use section 1 to identify the printhead nozzle to be used as the reference.
2. Use section 2 to determine the correction value for the other printheads.
3. Identify the line of the printhead nozzle closest to the print platen (indicated as A in the image). In this
example, the printhead nozzle (that is closest to the print Platen) to be used as the reference is
indicated as B in the image.
124 Chapter 7 How do I get the best image quality ENWW
