Installation and Wiring
15 NXC-ME260 NetLinx Master-Ethernet Card/Module
NXC-ME260 Installation and Mounting Procedures
Mounting the ME260 into an NXS-NMS
1. Confirm the contents of the shipment box to verify that you have all specified parts. Refer to
the NXC-ME260 Specifications section on page 2 for more information about included and
optional accessories.
2. Carefully remove the NXS-NMS Master/Hub Module from the shipping box.
3. Pull-away the magnetic faceplate from the front of the NXS-NMS. This exposes the front
panel LEDs and Program port opening (FIG. 12).
4. Carefully remove the NXC-ME260 from its anti-static bag and place it aside.
5. Grasp the NXC-ME260 by the faceplate and direct the Program port (on the front of the card)
into the opening on the rear of the NXS-NMS (FIG. 12).
6. Slide the Master card along the lowest pair of internal guide slots within the NXS-NMS.
7. Secure the NXC-ME260 faceplate to the NXS-NMS by using a Phillips-head screwdriver to
turn the two faceplate securing screws in a clockwise direction.
8. Connect the 12 VDC power supply to the 2-pin PWR connector and apply power.
Mounting the NXS-NMS Into an Equipment Rack
To install the Master/Hub Module into an optional AC-RK equipment rack:
1. Remove the front panel from the Module to expose the mounting holes.
2. Mount the module on the AC-RK bracket.
3. Place the AC-RK bracket (with the module) in the equipment rack and secure the bracket to the
rack.
4. Replace the front panel to the Module, and reattach the plastic faceplate (if necessary).

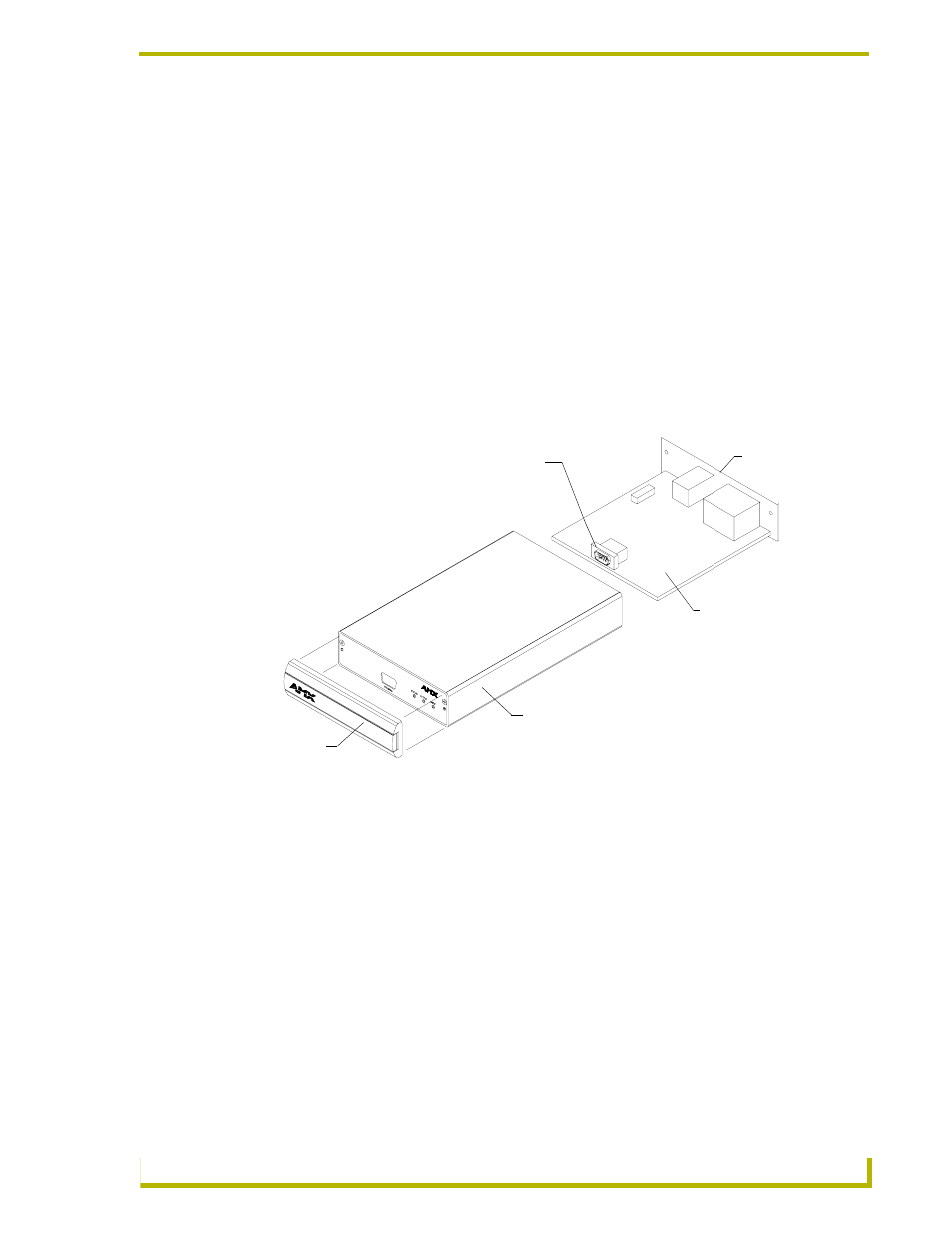

FIG. 12 Component locations on both NXC-ME260 and NXS-NMS
NXS-NMS
magnetic
faceplate
NXS-NMS
Master/Hub Module
NXC-ME260 Master card
Program
port
NXC-ME260
faceplate
