Configuration

The Configuration menu is used to set the TSU operational
configuration, including all of the network interface
parameters, the allocation of the DS0s and the port
parameters. See Figure 3-4.

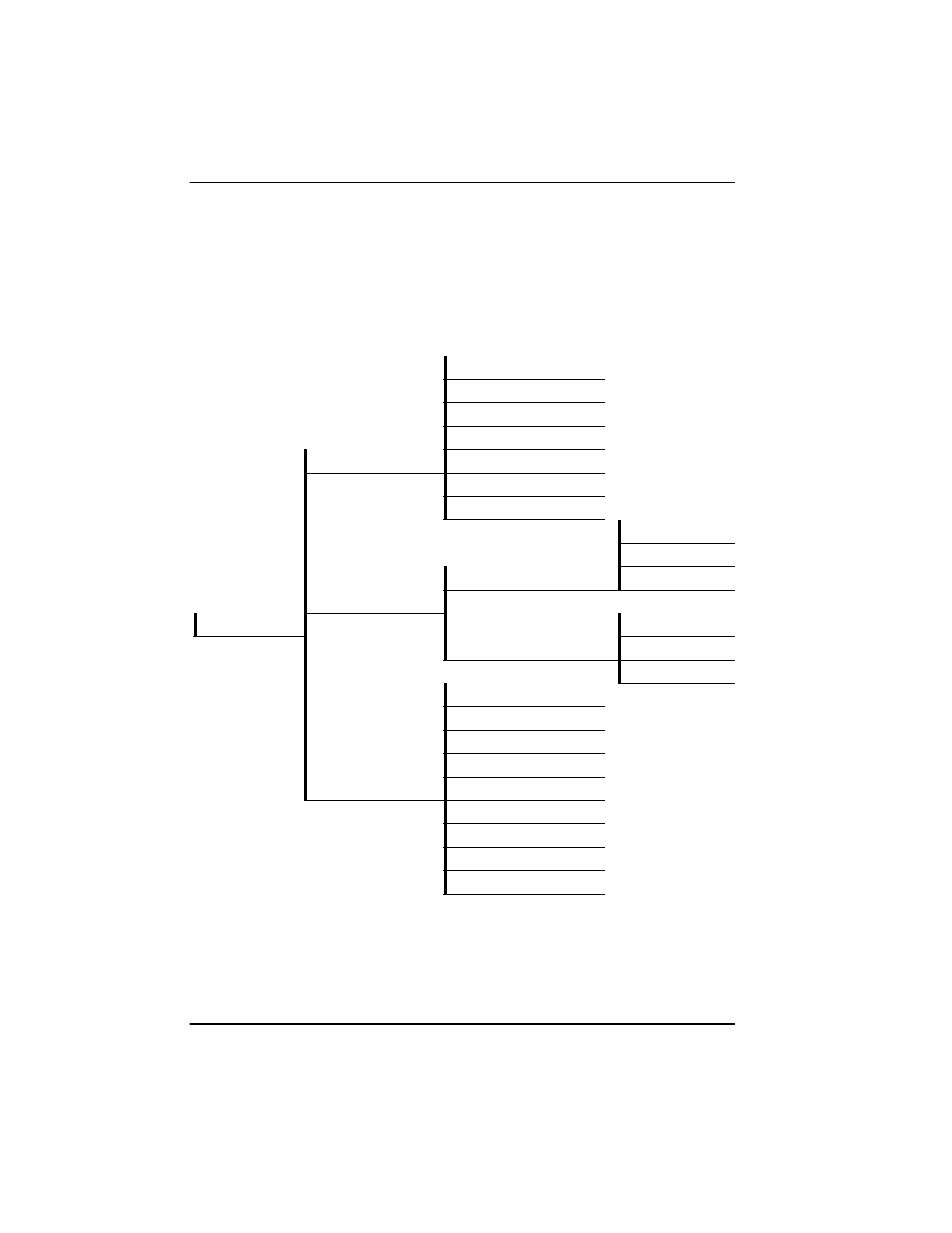

Figure 3-4. Complete Configuration Menu

1 FORMAT

2 CODE

3 YEL ALRM

4 XMIT PRM

1 NETWORK (NI)

5 CLOCK SOURCE

6 BIT STUFFING

7 SET LBO

1 POSITION

2 MODEM INIT

1 CNTRL PORT

3 DATA RATE

2 UNIT

2 CONFIG

1 TRAPS

2 ALARMS

2 OUTPUT

3 TEL NUM

1 RATE 56/64

2 CHANNELS

3 DTE TX CLK

4 START CHAN

3 PORT

5 # OF CHAN

6 DATA

7 CTS

8 DCD

9 DSR
