Chapter 1. Introduction
1-4 TSU User Manual 61200060L1-1

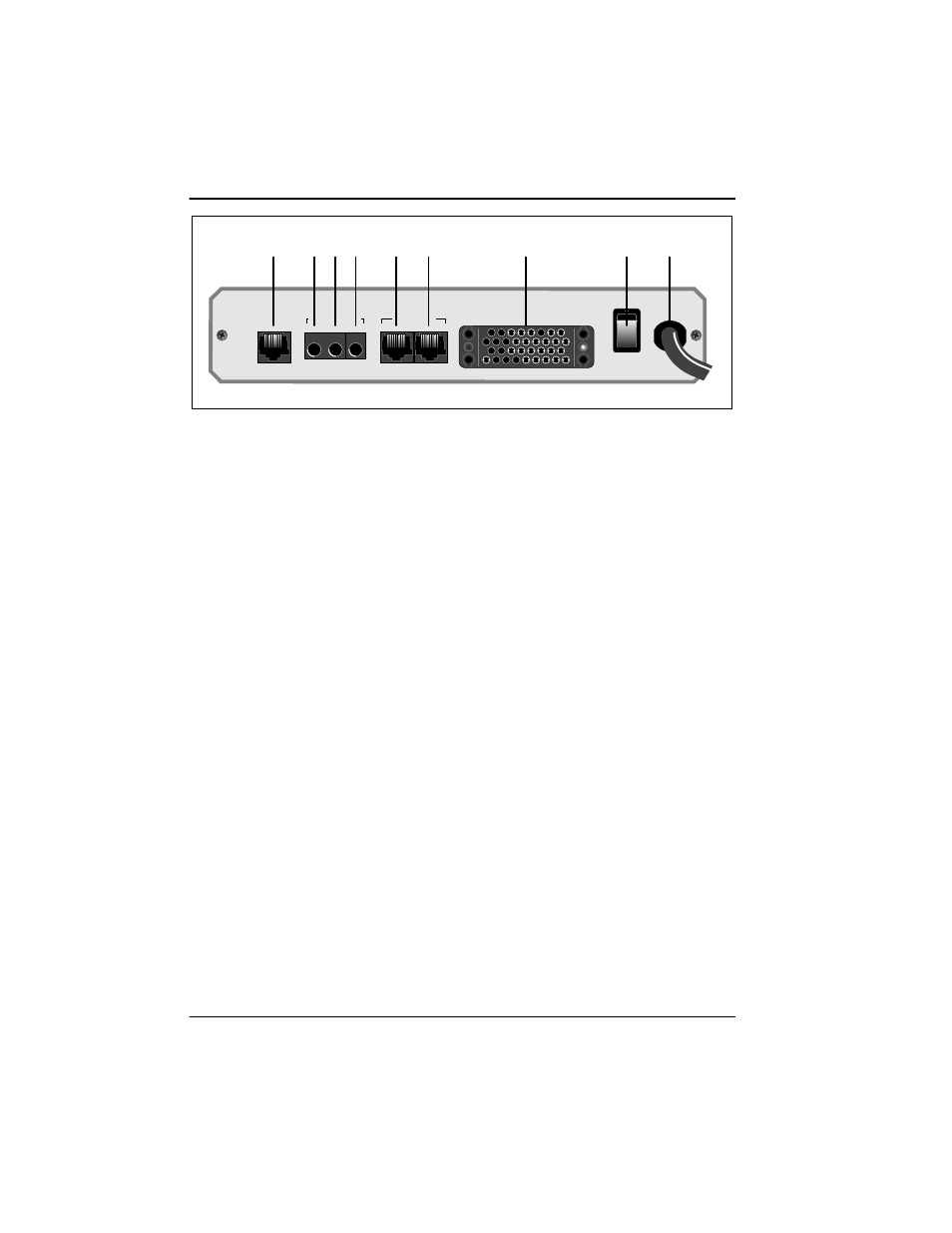

Figure 1-2. TSU Rear Panel
NETWORK
TEST JACKS
CHAIN IN CHAIN OUT IN OUT MON V.35 NX56/64
115VAC/60HZ
.15A OFF
ON
CONTROL
1 2 3 4 5 6 7 8 9
Item Function
1. Network T1-FT1 Network Interface
Test Jacks
2. IN Bantam Test Jack
3. OUT Bantam Test Jack
4. MON (Monitor) Bantam Test Jack
Control
5. Chain In Interface of Chain In
6.Chain Out Connects to Chain In of another TSU
7. V.35 Nx56/64 DTE Port
8. Power Switch Used to turn power On or OFF
9. Power Cord Captive 3 Prong Power cord
