110 Chapter 5
Dual Arbitrary Waveform Generator
Using Waveform Markers

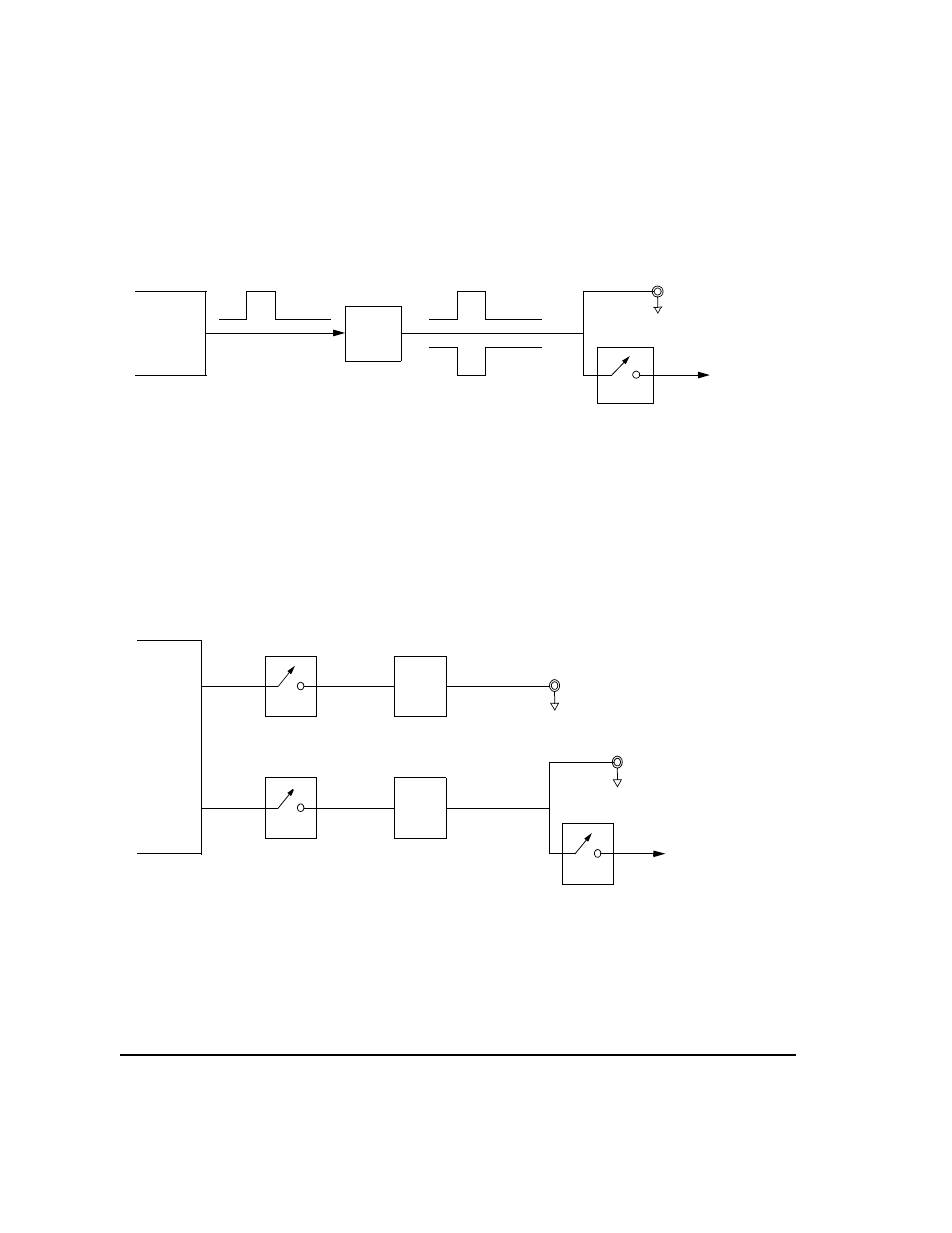

A waveform sequence comprises waveform segments. When you combine segments to form a
sequence, you can enable or disable Marker 1 and/or Marker 2 on a segment-by-segment basis.
When you select a sequence to output, the markers embedded in any one segment of that sequence are
output only if the sequence marker for that segment is enabled (toggled on). This makes it possible to output
markers for some segments in a sequence, but not for others.
Marker File
Bit 2
Marker
Polarity
Marker 2 to
RF Blank
Off On
Marker 2
Blanks RF
when Marker
is Low
EVENT 2
Negative
Positive
±
Marker File
Bit 2
Marker 2
to RF
Blank
RF Blanking
EVENT 2
Marker File
Bit 1
Marker
Polarity
EVENT 1
Sequence
Marker 2
Sequence
Marker 1
±
±
