Removing the main board – Acer 4330 User Manual
Page 96
86
Chapter 3
Removing the Main Board
1. See “Removing the Upper Cover” on page 68.

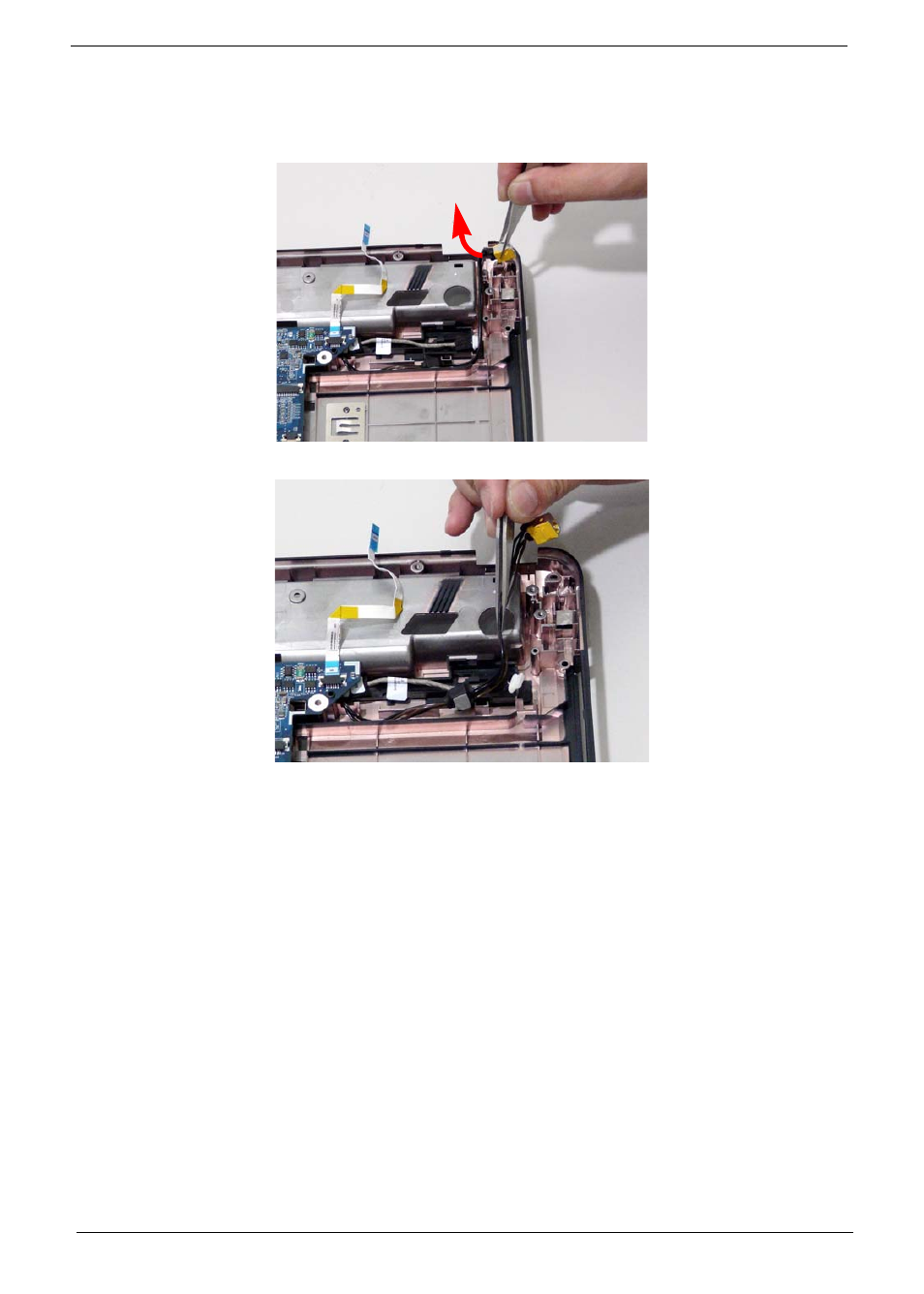

2. Disconnect the power jack from the power port on the Lower Cover.
3. Lift the cabling clear of the securing pins and ensure it is free of obstruction.
