Removing the camera module – Acer 4330 User Manual
Page 109
Chapter 3
99

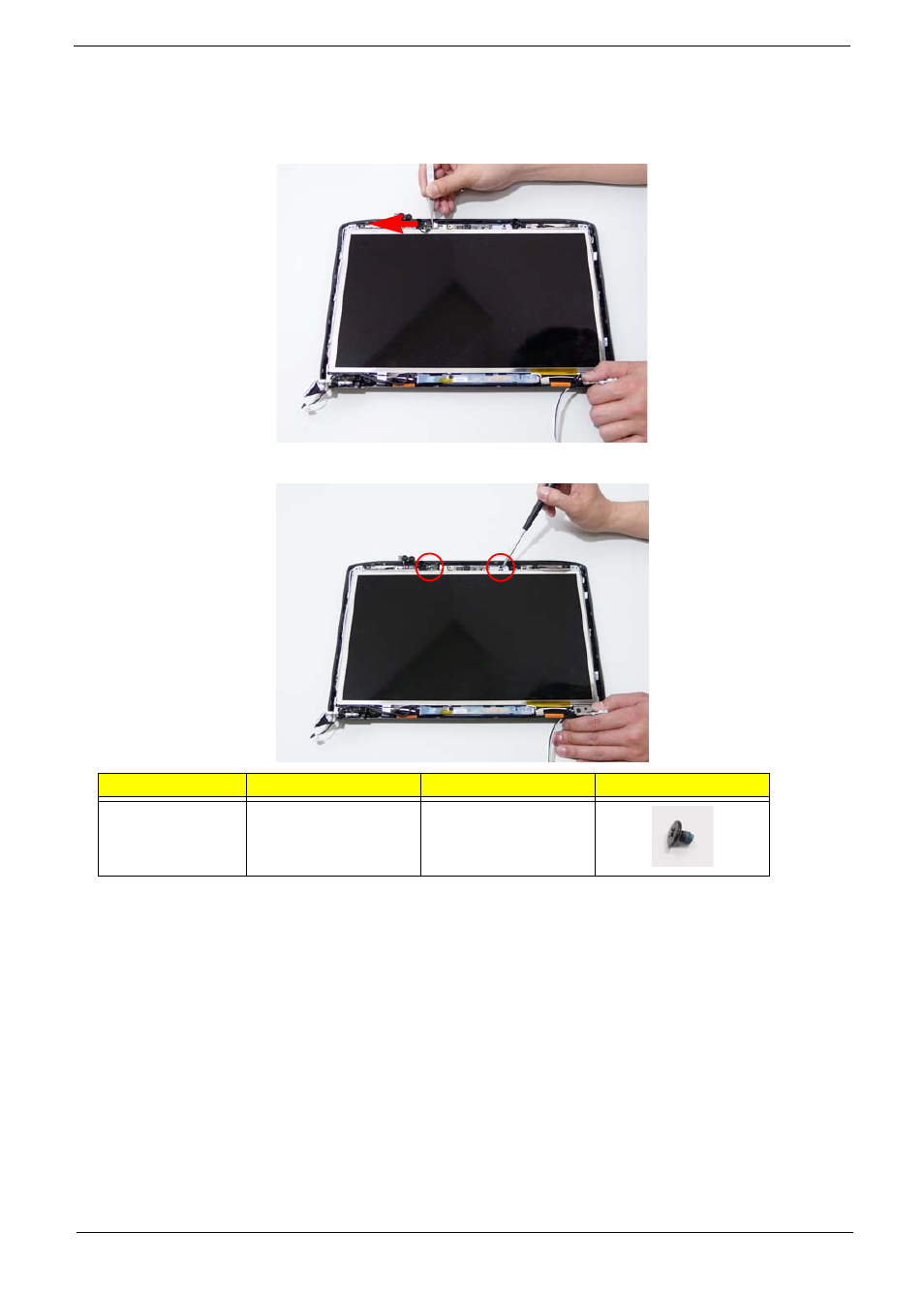

Removing the Camera Module
1. See “Removing the LCD Bezel” on page 95.
2. Disconnect the Camera Module cable as shown.
3. Remove the two securing screws from the Camera Module.
Step
Size
Quantity
Screw Type
Camera Module
M2*3 (NL)
2
