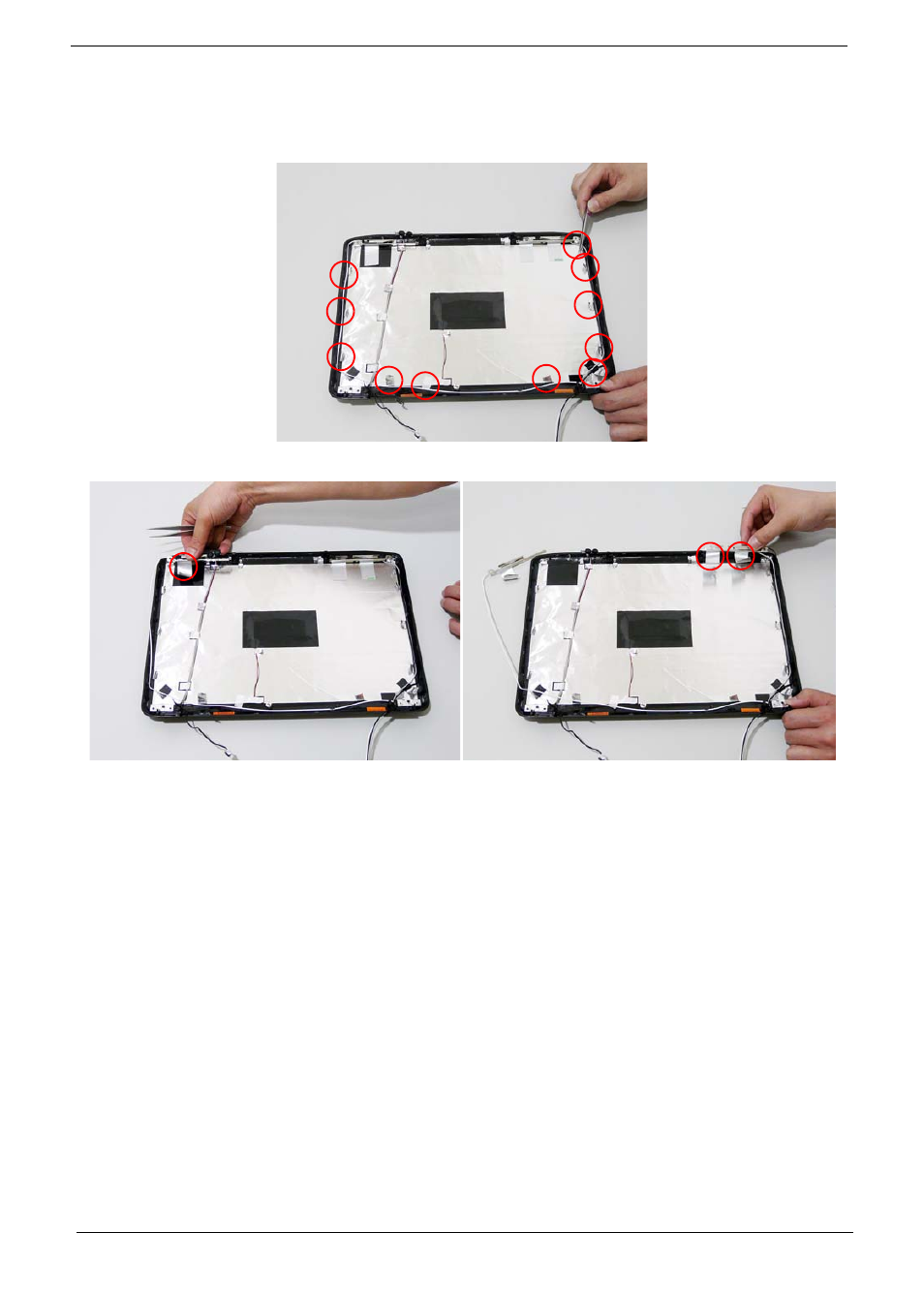

Removing the Antennas
1. See “Removing the LCD Panel” on page 101.
2. Remove the strips holding the antenna cables in place. Ensure the cables are free from obstructions.
3. Remove the tab securing the left and right antennas to the LCD module.
4. Remove the antenna cables and assembly from the LCD module.
