Page 166
156
Chapter 6

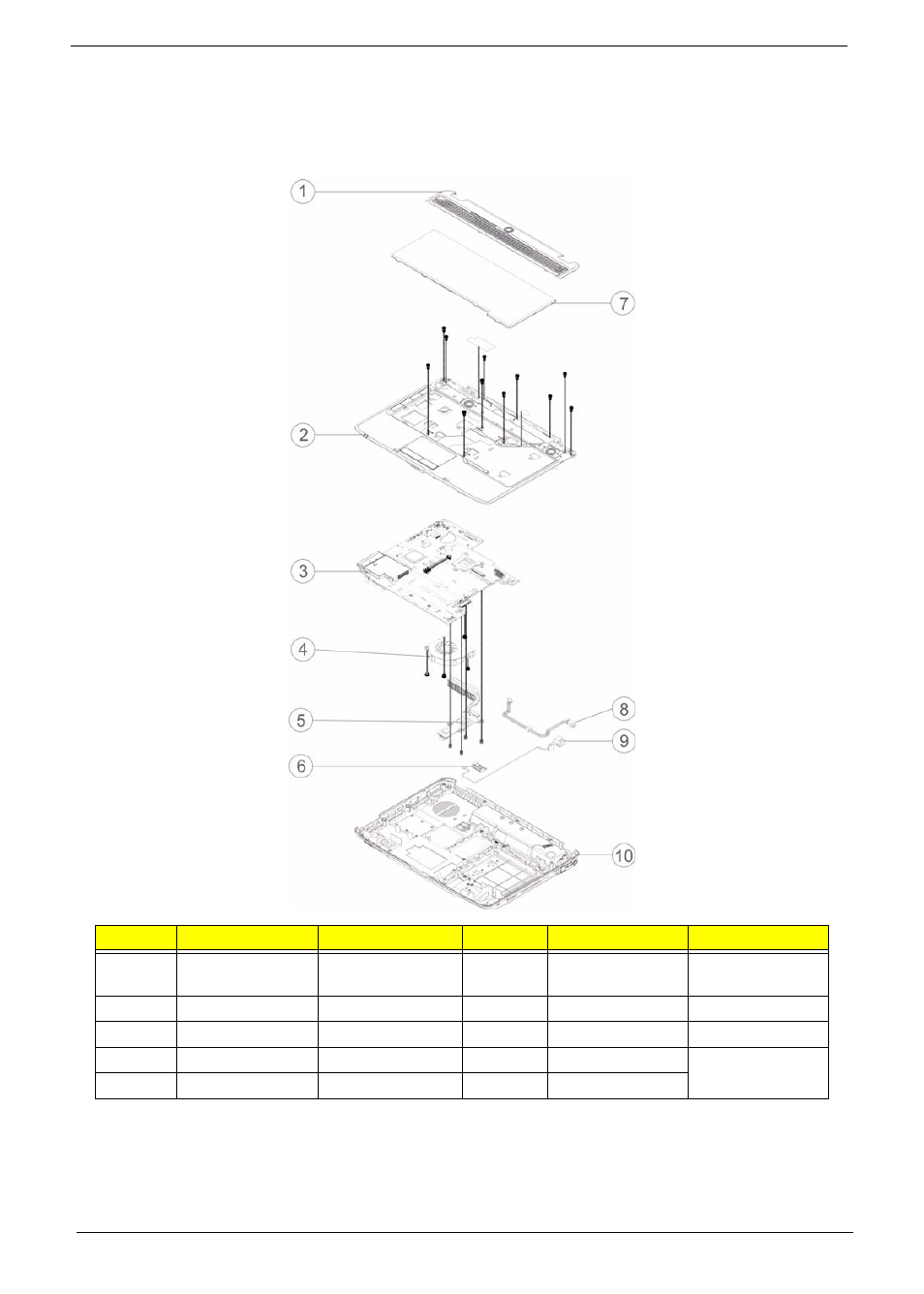

Aspire 4730Z/4730ZG/4330 Exploded Diagrams
Main Module
Item
Description
Part No.
Item
Description
Part No.
1
Middle Cover
60.AT902.001
6
Bluetooth
Module
TBD
2
Upper Cover
60.AT902.002
7
Keyboard
KB.INT00.442
3
Mainboard
MB.ATV02.001
8
Power Cable
TBD
4
CPU Fan
23.AT902.001
9
RJ-11 Cable
60.AT902.003
5
Thermal Module
60.AT902.007
10
Lower Cover
