Replacing the Touch Pad Bracket
IMPORTANT:The Touch Pad cannot be removed individually. To replace the Touch Pad, replace the entire
Upper Cover.

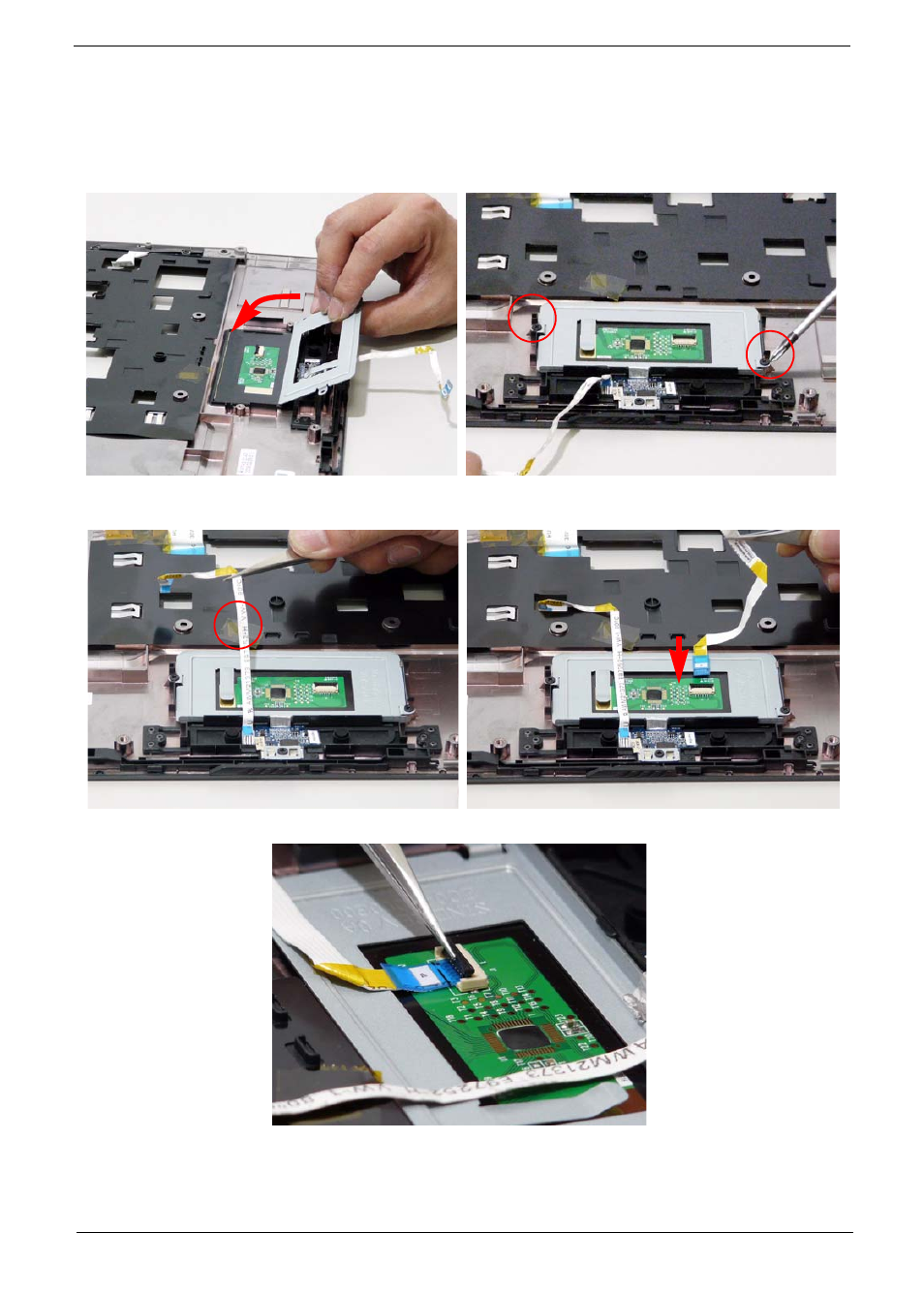

1. Replace the Touch Pad bracket.
2. Replace the two securing screws from the Touch
Pad bracket.
3. Replace the Finger Print reader FFC and secure
with the adhesive strips.
4. Replace the Touch Pad FFC and secure with the
adhesive strips.
5. Connect the Touch Pad cable to the Touch Pad board.
