Removing the lcd panel – Acer 4330 User Manual
Page 111
Chapter 3
101

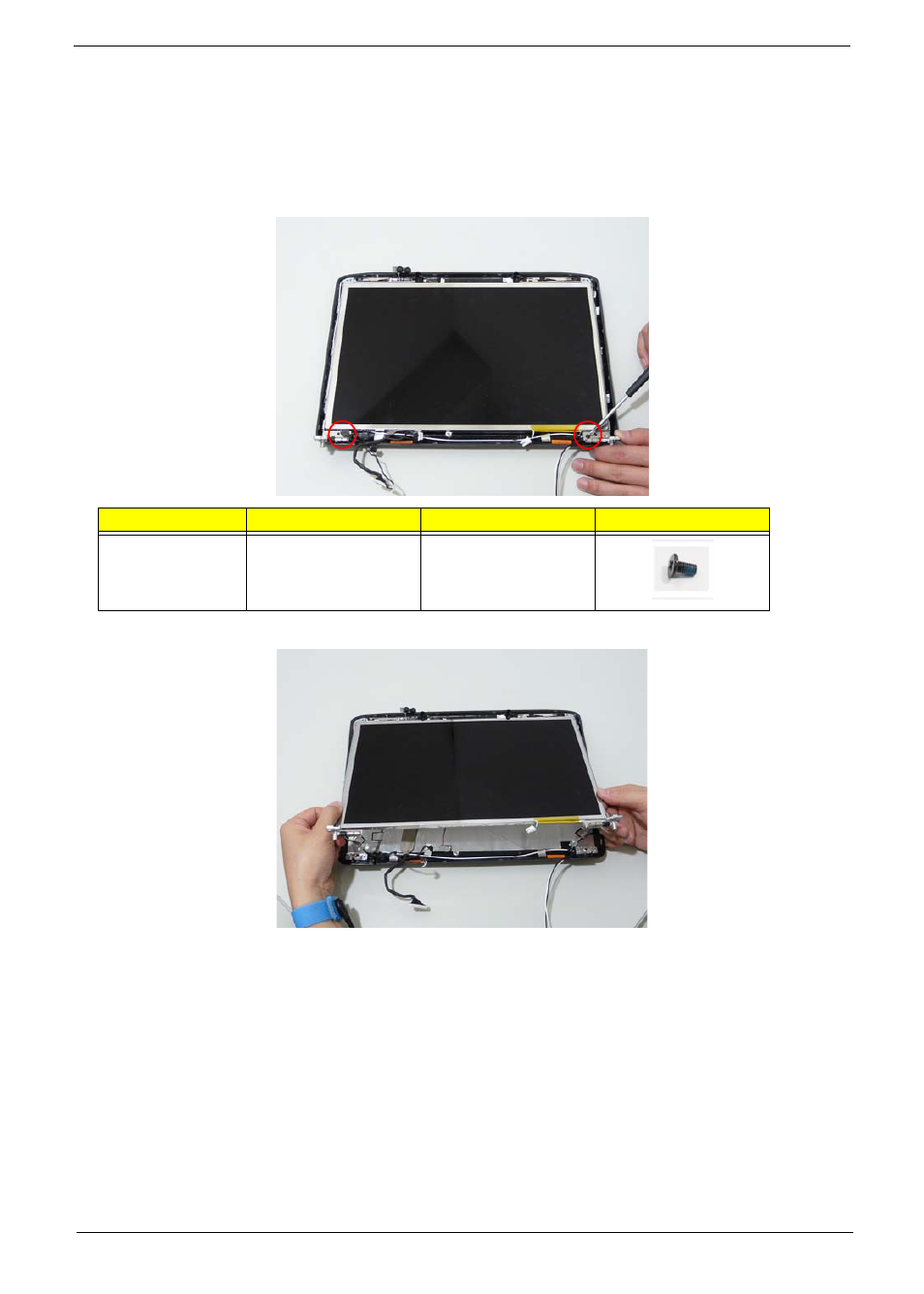

Removing the LCD Panel
1. See “Removing the LCD Bezel” on page 95.
2. Remove the two securing screws from the LCD Module.
IMPORTANT:The leftside screw holds the ground connector in place. Ensure that the ground is replaced
during reassembly.
3. Lift the LCD Panel clear of the LCD Module.
Step
Size
Quantity
Screw Type
LCD Panel
M2.5*5 (NL)
2
