Page 130
120
Chapter 3

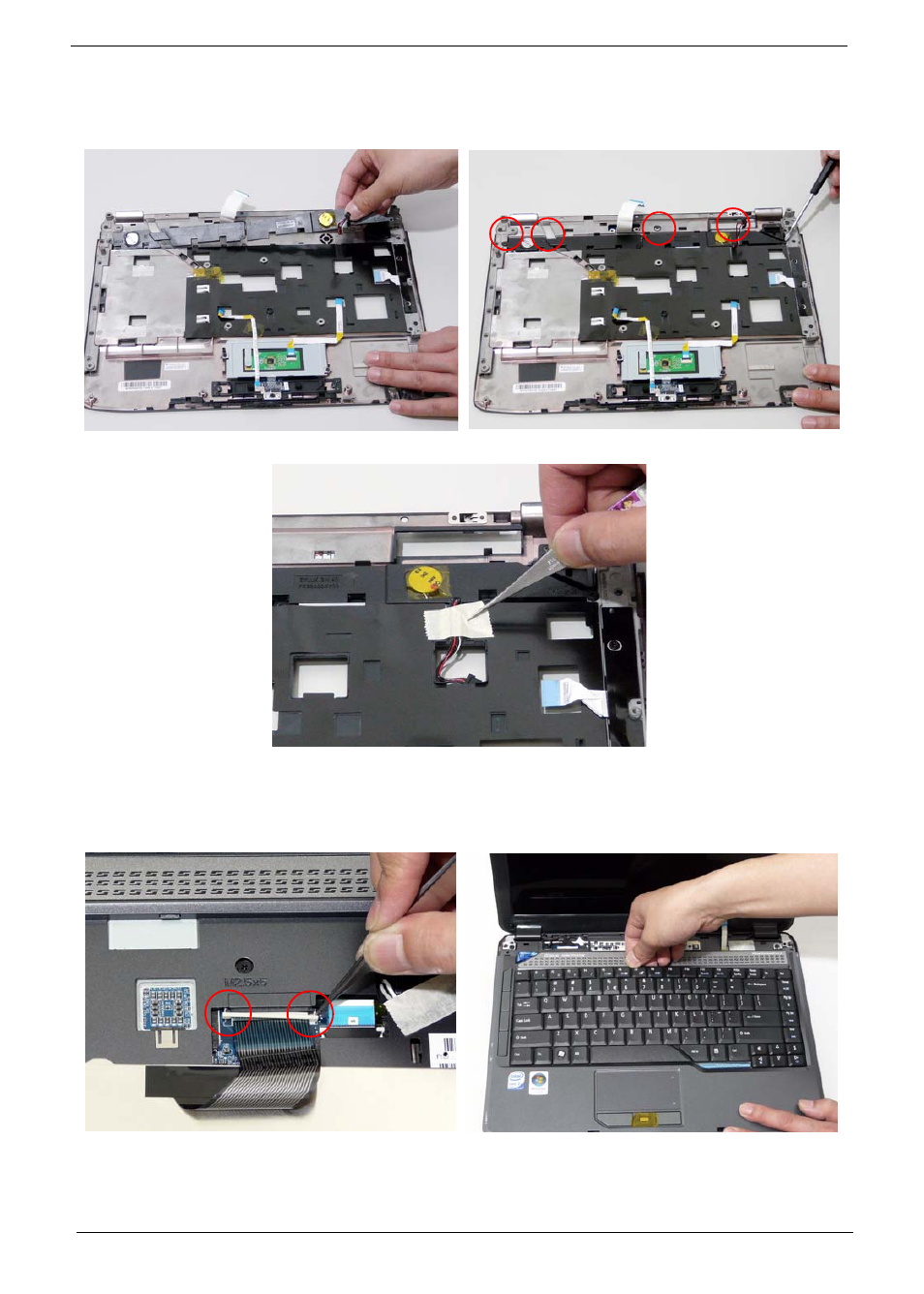

Replacing the Speaker Module
Replacing the Keyboard
1. Align and replace the Speaker Module in the upper
cover.
2. Replace the four securing screws.
3. Attach the adhesive strip on the speaker cabling to secure in place.
1. Replace keyboard cable to the mainboard, and
secure the locking latch.
2. Turn the keyboard over and place the front edge
first in the mounting.
