Removing the LCD Bezel
1. See “Removing the LCD Module” on page 66.

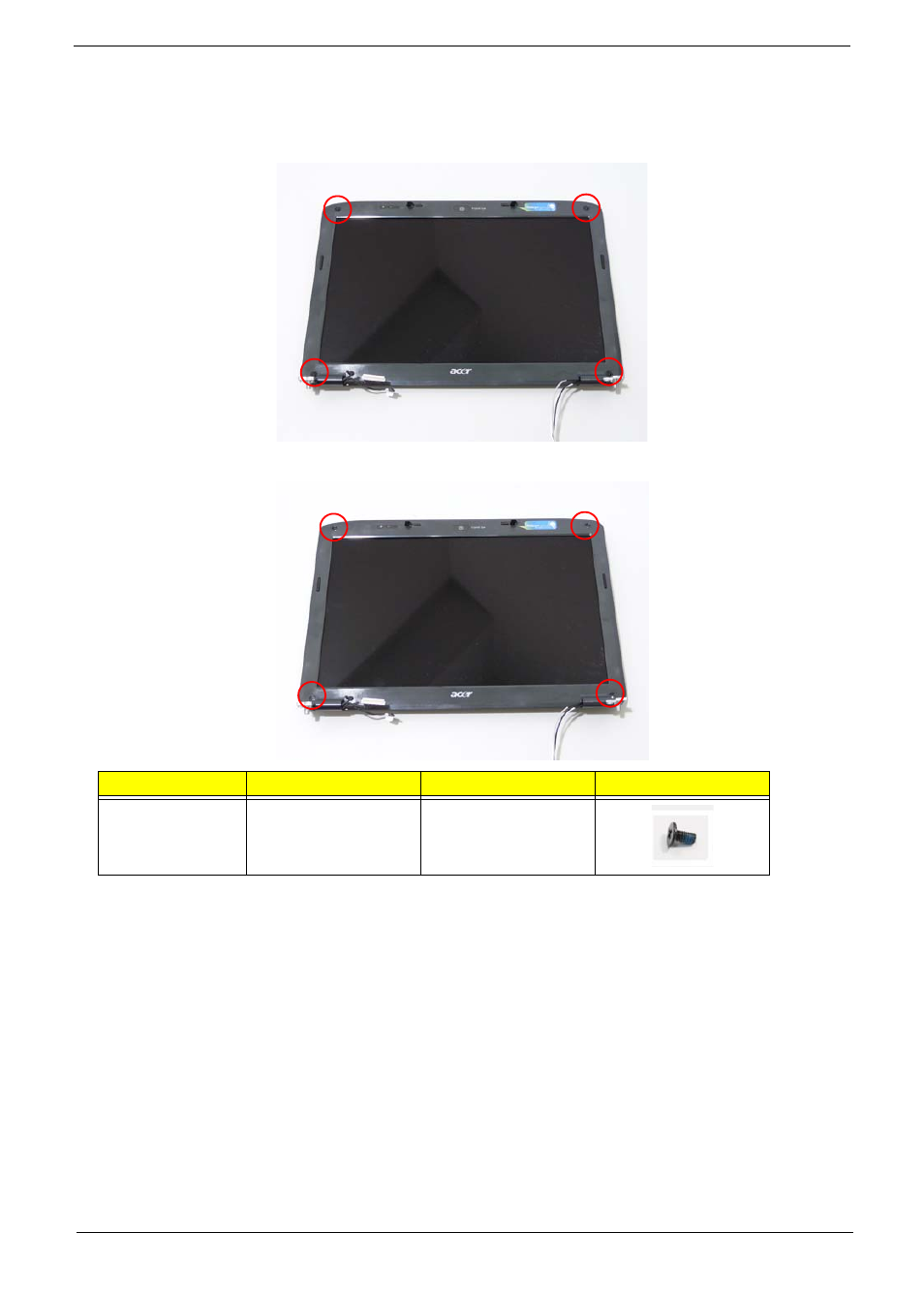

2. Remove the two upper and two lower bezel screw caps.
3. Remove the four securing screws from the LCD module.
Step
Size
Quantity
Screw Type
LCD Bezel
M2.5*5 (NL)
4
