Removing the Optical Drive Module
1. See “Removing the Battery Pack” on page 44.
2. Remove the Memory cover. See “Removing the Lower Covers” on page 47.

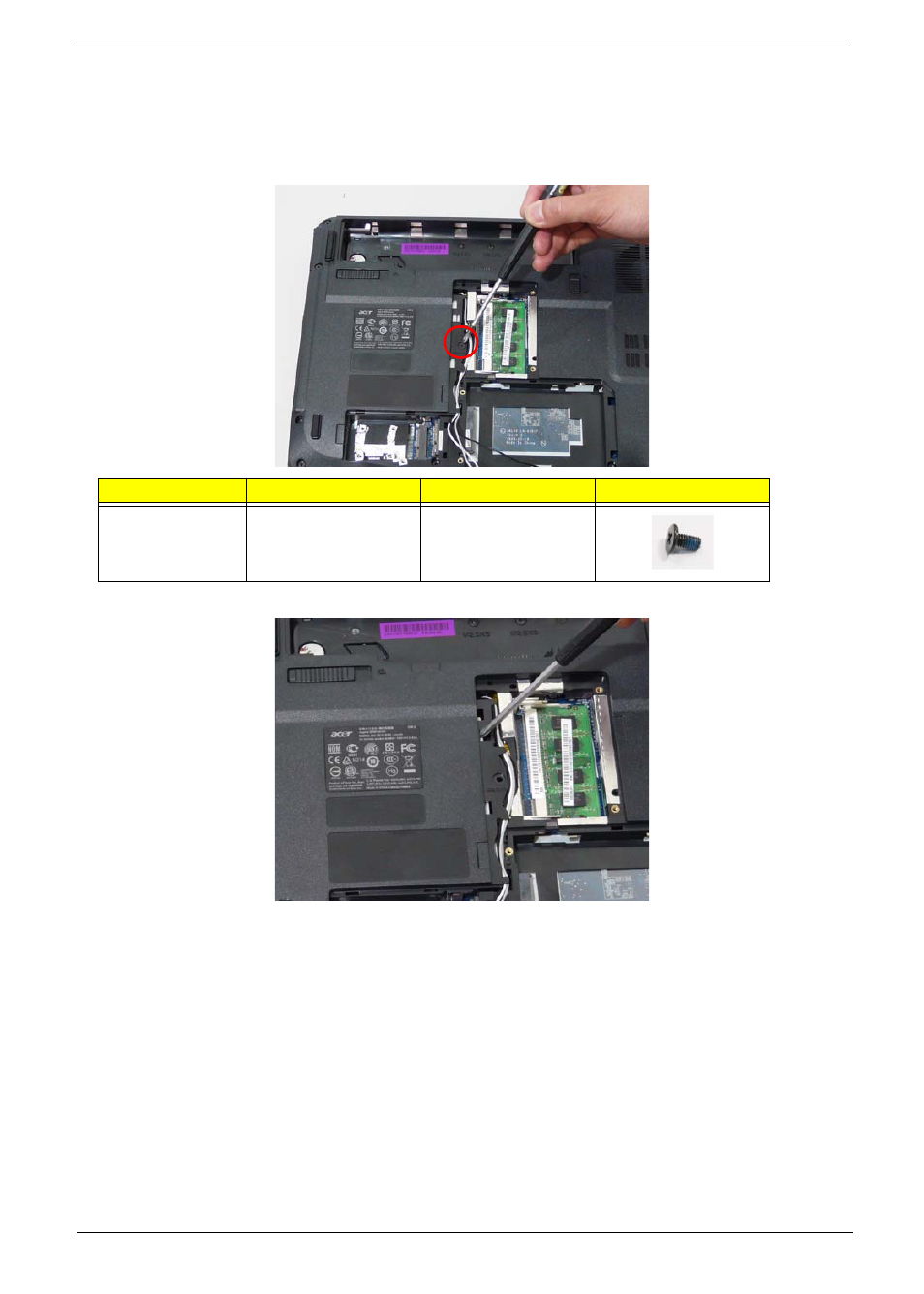

3. Remove the screw securing the ODD module.
4. Carefully insert a screw driver to release the locking latch.
NOTE: A plastic screw driver is recommended to prevent scratching the surface of the computer.
Step
Size
Quantity
Screw Type
ODD Module
M2.5*5(NL)
1
