Removing the MIC Module
1. See “Removing the Antennas” on page 104.

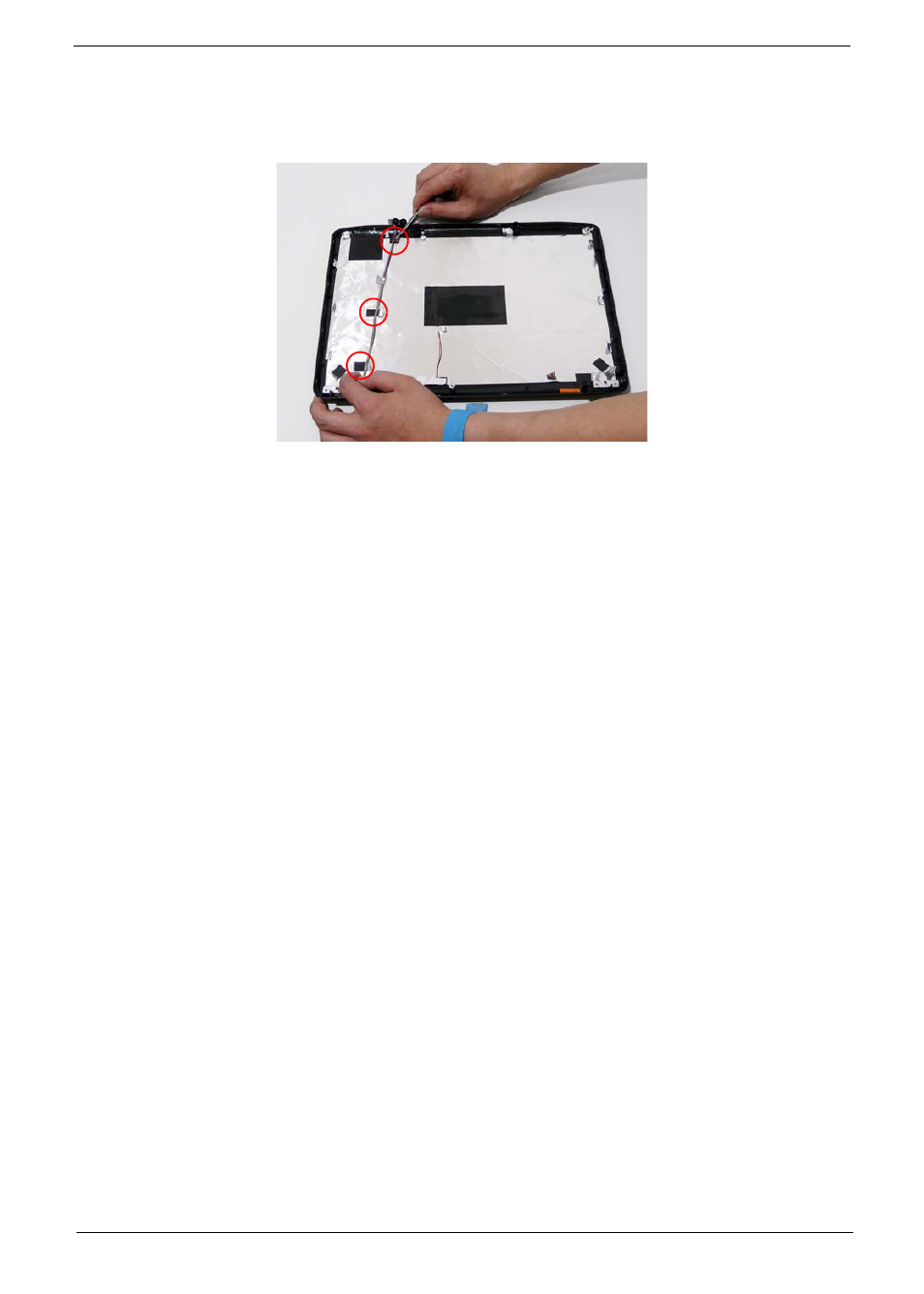

2. Remove the strips holding the MIC Module cable in place. Ensure the cable is free from obstructions.
3. Remove the MIC cable and Module from the LCD module.
