Chapter 5 151

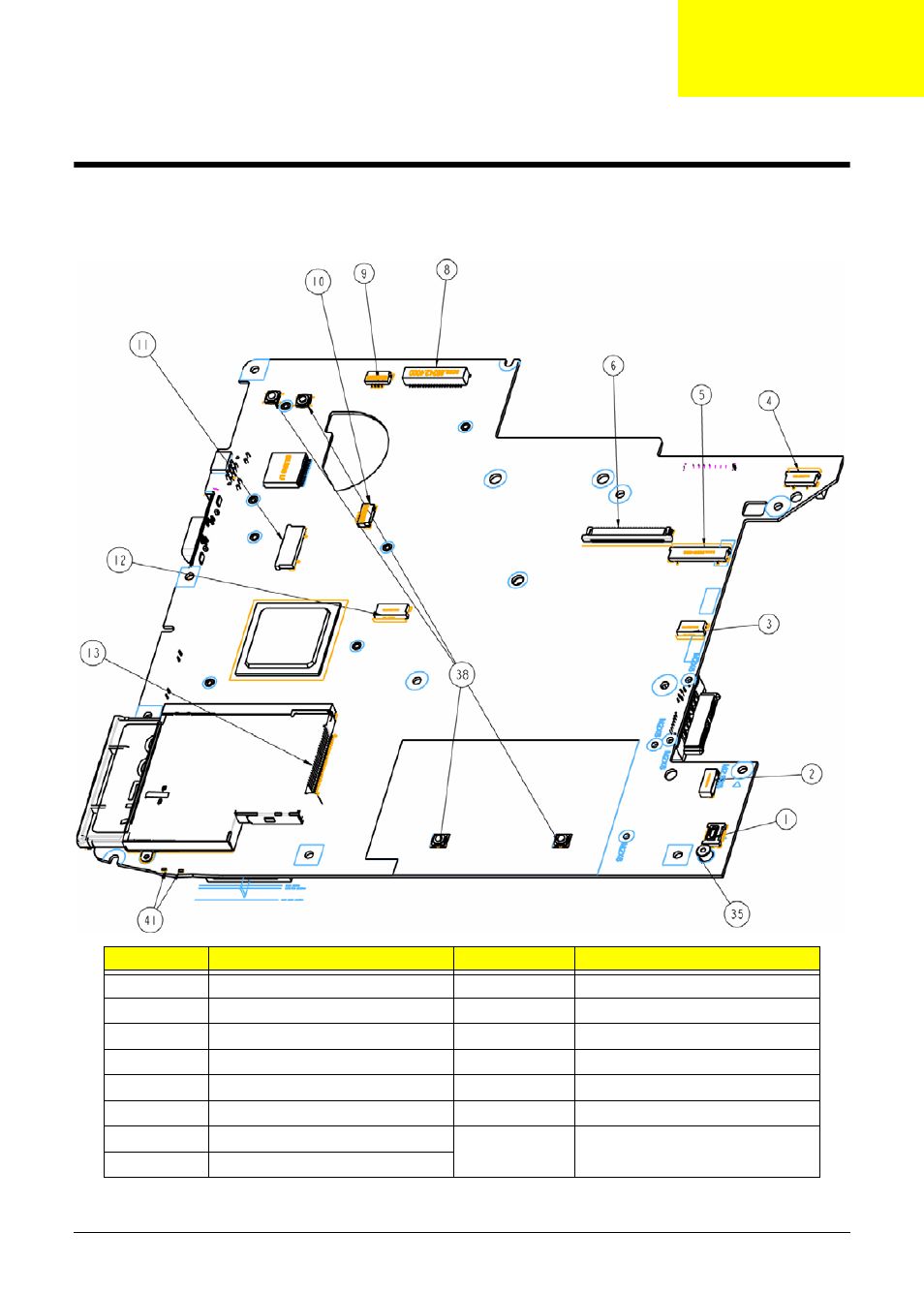

Jumper and Connector Locations
Top View
Location Description Location Description
1 MDC Conn 10 Speaker Conn
2 BT Conn 11 Function PCB to MB Conn
3 Finger to MB Conn 12 TP to MB Conn
4 Media PCB to MB Conn 13 Express Card Conn
5 Power PCB to MB Conn 35 MDC Standoff (M2xH3)
6 KB Conn 38 Switch
8 LVDS Cnn 41 LED
9 MIC Conn
