Removing the lcd brackets and fpc cable – Acer 4330 User Manual
Page 112
102
Chapter 3
Removing the LCD Brackets and FPC Cable
1. See “Removing the LCD Panel” on page 101.

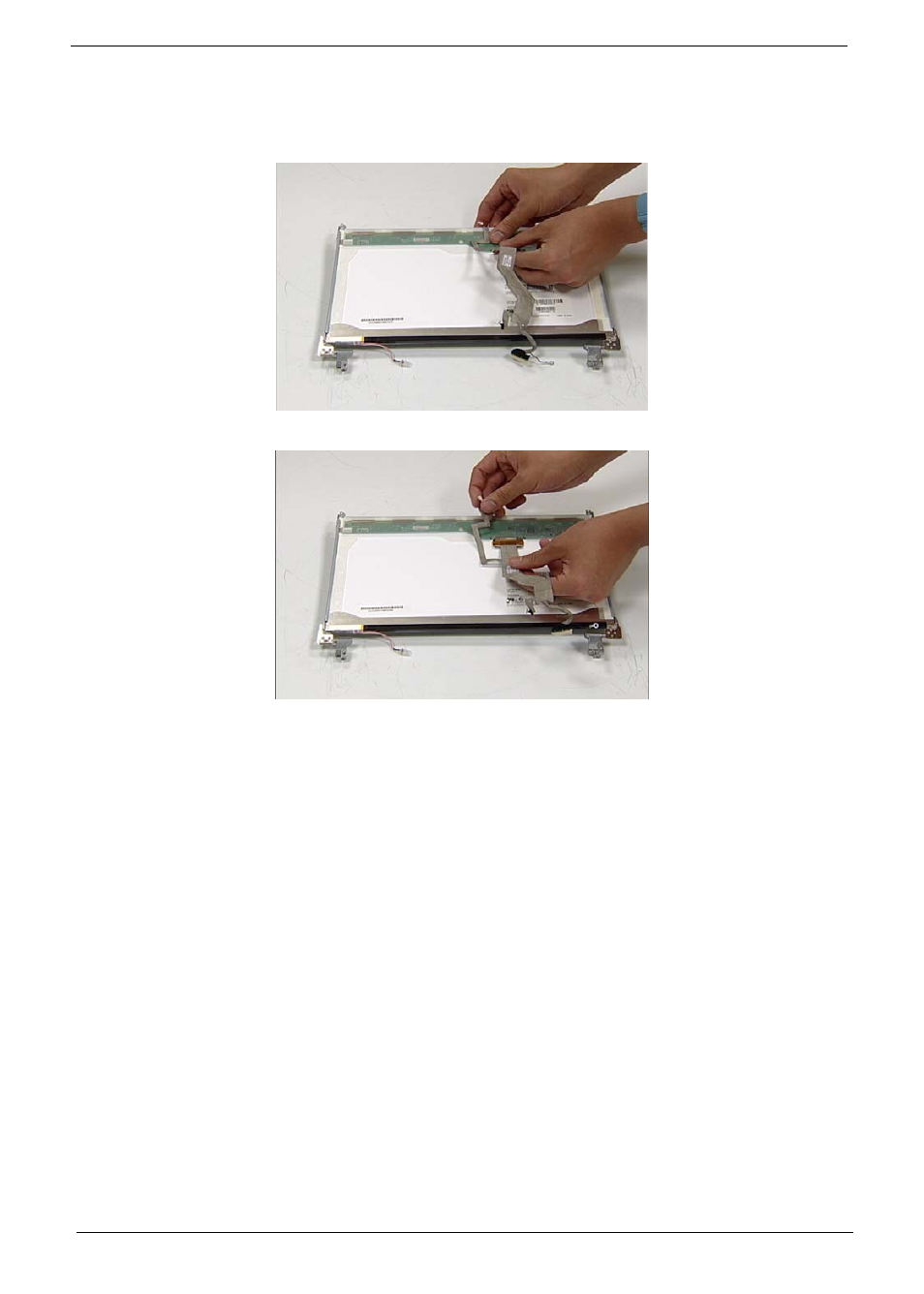

2. Turn the LCD panel over to expose the rear. Disconnect the cable from the LCD Panel using the tab provided.
3. Grip the FPC cable and lift upward to detach the adhesive pads.
