152 Chapter 5

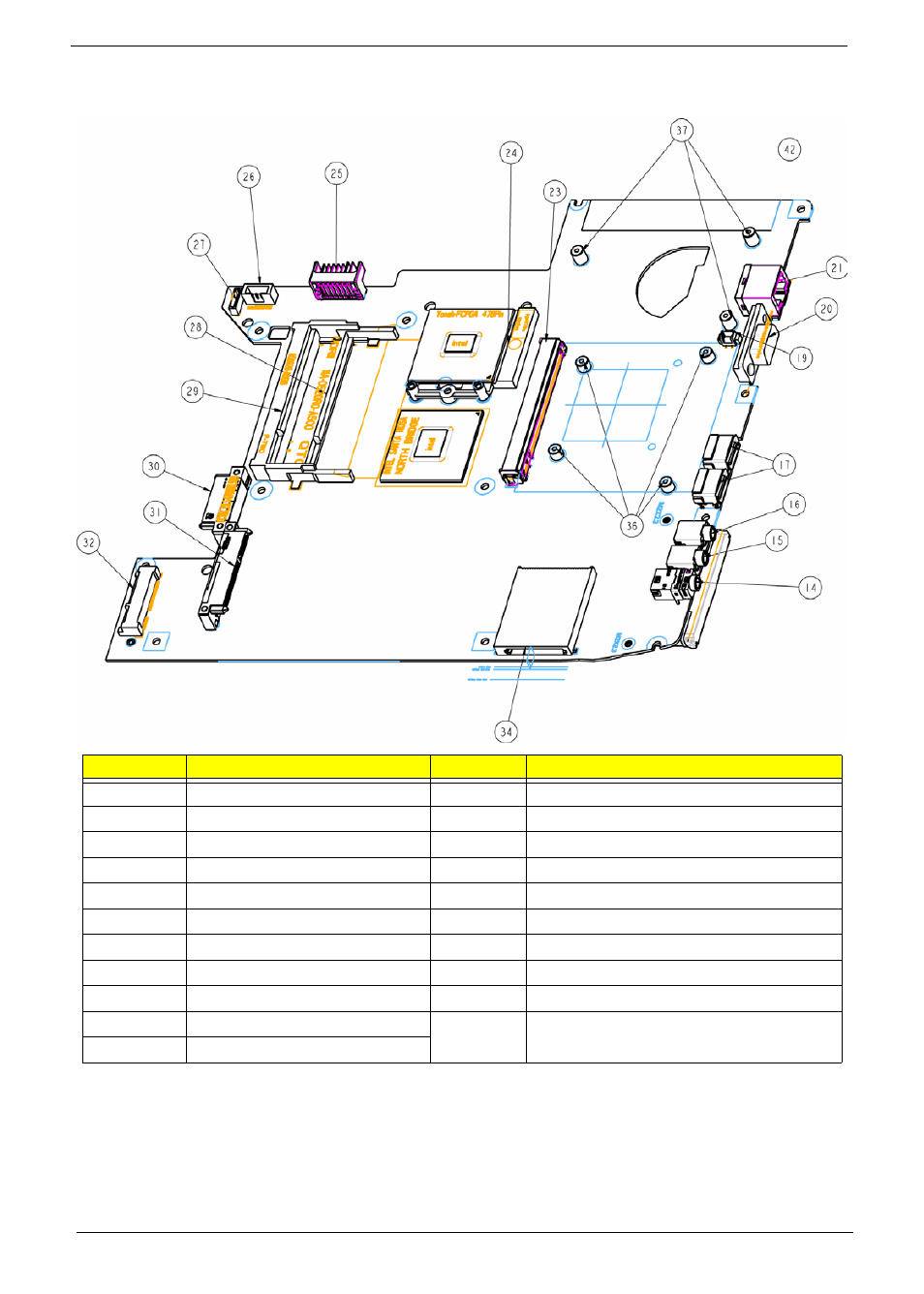

Bottom View
Location Description Location Description
14 SPDIF Conn 27 USB PCB to MB
15 Audio Conn (pink) 28 DDR2 5.2 mm (Rev.)
16 Audio Conn (blue) 29 DDR2 9.2 mm (Rev.)
17 USB (single Rev) 30 ODD SATA Conn
19 Fan Conn 31 HDD SATA Conn
20 CRT Conn (blue) 32 Mini PCI Express (5.2)
21 RJ45 34 Card Reader
23 MXM Conn 36 MXM Standoff (M2xH4)
24 CPU Socket 37 Fan Standoff (M2xH6)—UMA only
25 Battery Conn 42 ICL50 MB Fan Standoff—DIS only
26 DCIN Cable Conn
