Removing the wlan module – Acer 4330 User Manual
Page 60
50
Chapter 3

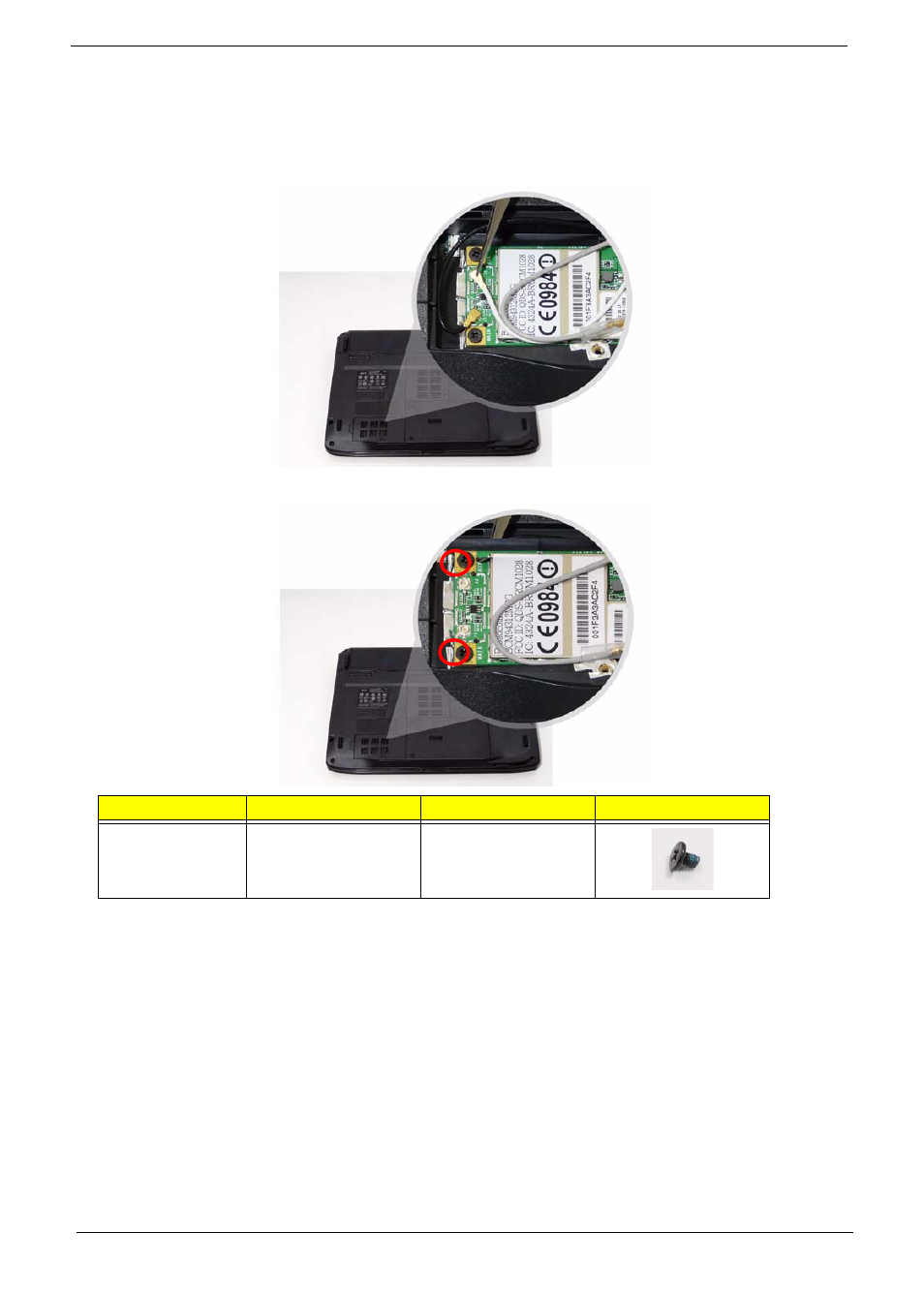

Removing the WLAN Module
1. See “Removing the Battery Pack” on page 44.
2. Remove the WLAN cover. See “Removing the Lower Covers” on page 47.
3. Disconnect the antenna cables from the WLAN board.
4. Move the antenna away and remove the two screws on the WLAN board to release the WLAN board.
Step
Size
Quantity
Screw Type
WLAN Module
M2*3 (NL)
2
