8
4.0 OPERATING FEATURES
4.1 THE POCKET PC PERFORMS THE FOLLOWING MAJOR FUNCTIONS
• User interface for setups, display and storage.
• Data transfer to and from Micro-Cal Manager Database.
• Communications with internal data acquisition and control
microprocessor board.
• Monitors battery voltage
• Stores data for UUT, test profiles and test results.
4.2 PORTABILITY - CALIBRATOR IS FULLY PORTABLE AND POWERED BY
• 120/240 VAC to 24 VDC power adaptor, external
• Using the internal 14.4 VDC battery which has been designed for eight
(8) hours of continuous operation after a full charging cycle. The Li-Ion
battery is rated at 14.4 VDC, 6.6 Amp hour (AH). See Diagrams 3A, 3B
and 4.

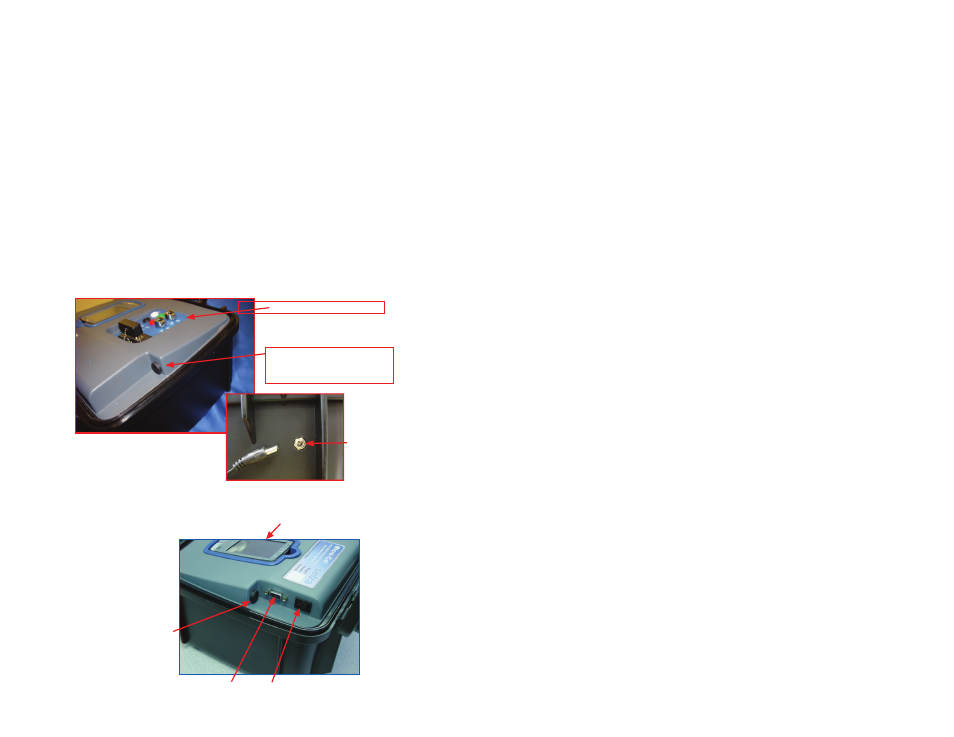

Diagram 3A
Current Loop Fuse (63 mA)
Littlefuse #0218.063HXP
(See Spare Parts & Accessories)
User Interface Panel
Diagram 4
Pocket PC
Power Fuse (4A)
Littlefuse #H217004
(See Spare Parts & Accessories)
On/Off
Switch
Serial Port
Diagram 3B
Battery Jack
(Located on back of case.)
49
14.0 WARRANTY & LIMITATION OF LIABILITY
SETRA warrants its products to be free from defects in materials and
workmanship, subject to the following terms and conditions: Without
charge, SETRA will repair or replace products found to be defective in
materials or workmanship within the warranty period; provided that:
a) The product has not been subjected to abuse, neglect,
accident, incorrect wiring not our own, improper installation or
servicing, or use in violation of instructions furnished by
SETRA;
b) the product has not been repaired or altered by anyone except
SETRA or its authorized service agencies:
c) the serial number or date code has not been removed,
defaced, or otherwise changed; and
d) examination discloses, in the judgement of SETRA, the defect
in materials or workmanship developed under normal
installation, use and service.
e) SETRA is notified in advance of and the product is returned to
SETRA transportation prepaid.
Unless otherwise specified in a manual or warranty card, or agreed to in
writing and signed by a SETRA officer, SETRA pressure and accelera-
tion products shall be warranted for one year from date of sale.
The foregoing warranty is in lieu of all warranties, express, implied or
statutory, including but not limited to, any implied warranty of merchant-
ability for a particular purpose.
SETRA’s Liability for breach of warranty is limited to repair or replace-
ment, or if the goods cannot be repaired or replaced , to a refund of the
purchase price. In no instance shall SETRA be liable for incidental or
consequential damages arising from a breach of warranty, or from the
use or installation of its products.
No representative or person is authorized to give any warranty other
than as set out above or to assume SETRA any other liability in connec-
tion with the sale of its products.
