Pocket PC Database - This list shows what test profiles are currently
on the Pocket PC. After editing any profile, said profile will automatically
download to the Pocket PC. This ensures that the list window always ac-
curately reflects what is on the Pocket PC. (See Diagram 28)

Diagram 28

Profile Quick Display - Below the database list is a window which will
display the properties of the selected profile. Once a profile is selected,
from either database, it is loaded from its database and the data is then
displayed in this window. (See Diagram 29)
1. To select a profile, simply click on the ID in the list.
2. Only one profile can be selected at a time from both PC and Pocket PC
database lists.

Diagram 29

11. Save - Once all parameters have been changed, tap the SAVE button

at bottom.

Note: Save button will be ‘grayed out’ when data has been saved

12. Delete - Select UUT from list of available UUT ID’s at the top of the

screen. Tap DELETE button at bottom of the page.

13. More - Press to access remaining UUT setup items.

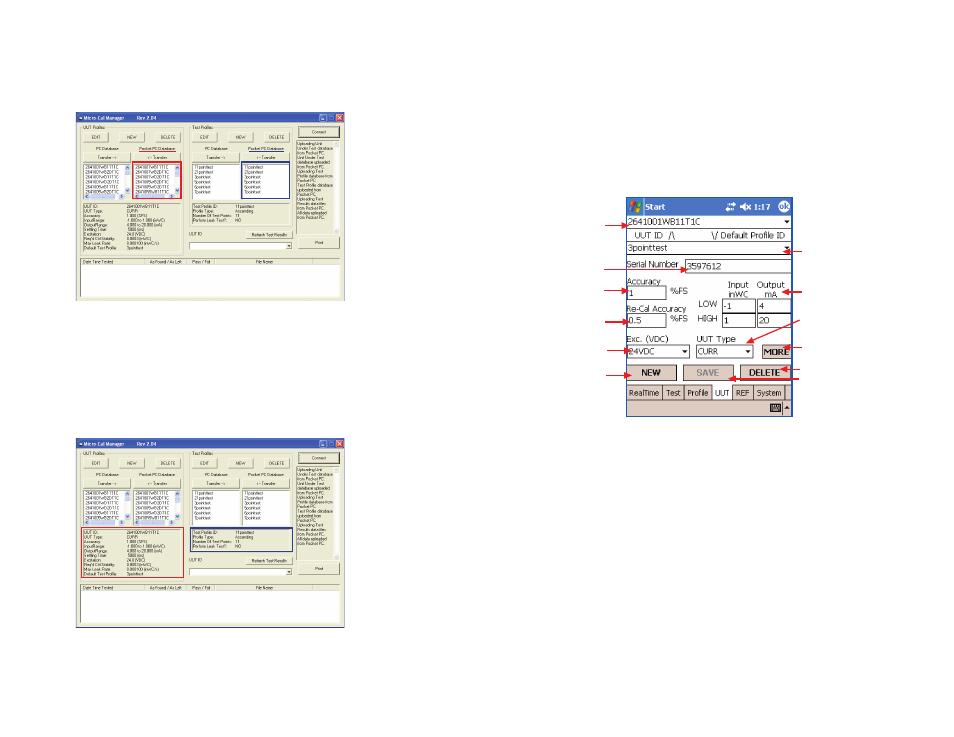

Diagram 13

UUT ID Box

UUT Accuracy

New UUT ID Setup

Proﬁle Template ID

to Copy From

UUT Input/Output

Specs (Ideal)

Delete UUT ID

Save New

UUT ID

Accuracy Spec Where

UUT Is Adjusted

Access the UUT

SUPPLEMENTAL PAGE

(Diagram 14)

Excitation

UUT Serial Number

UUT Type
