Setra System Model 869 - Manual (Page 14)

14
6.3 TEST: General
Screen Instructions (Diagram 8):
1. Tap the TEST tab at the bottom of the page
2. Select desired UUT ID from the drop down box at the top of the page.
If desired UUT is not there, see section on creating a new UUT.
3. View the PROFILE ID drop down box and confirm that profile selected
is the desired pressure test profile, if not, select desired profile from
drop down list.
4. Select AS FOUND or AS LEFT radio button.
5. Tap TARE and wait until completed. This zeroes the ref. unit.
6. Tap DO TEST button.
7. To stop a test in process, tap the STOP button. This will stop and
cancel the test.
8. Target pressure will be generated and data will be automatically
recorded at each pressure point.
Note: If the Display Test Results in Graph Option is selected (see Edit Defaults
page) - a graph will appear displaying pressure vs. error after the pressure
sequence has been completed (Diagram 9).
9. To record data - Tap RECORD TEST RESULTS button
Note: Record Test Results Button has 3 states indicating the save status of test
results. When no test results are available to save, the button reads “No Results
To Save.” When results on screen have been saved, the button will change to
“Test Results Saved.” After a test is complete and before the data is saved, the
button will read “Record Test Results.”
10. To review data - Tap REVIEW TEST RESULTS button
11. To expand/collapse the Test Profile/Results window, double tap Test
Profile / Results window.

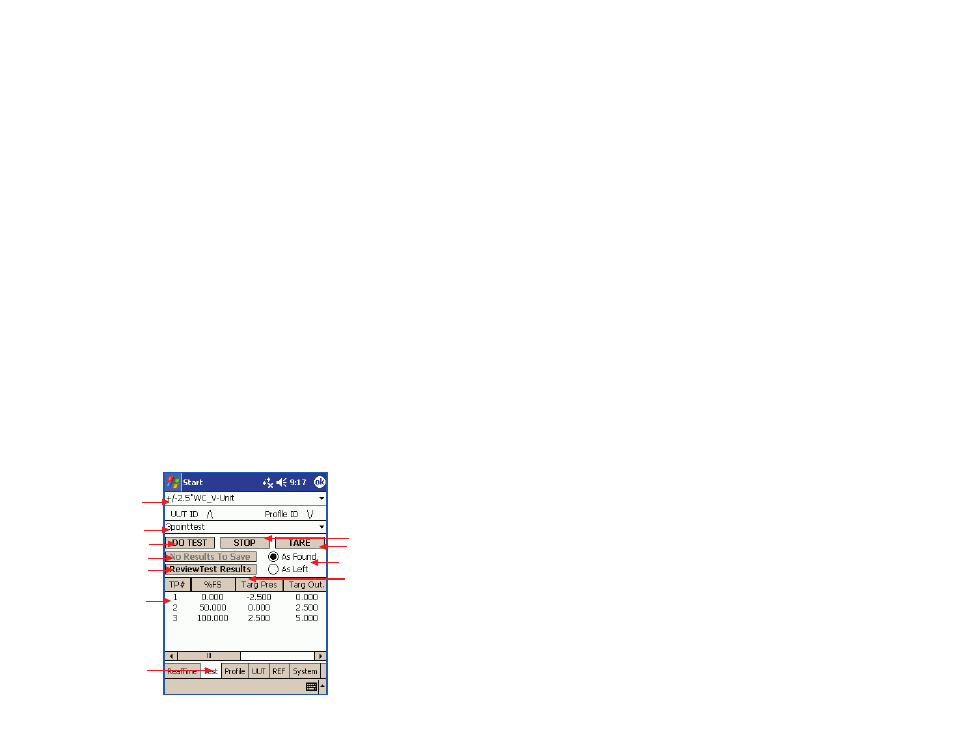

Diagram 8
Record Data
Target Pressure
Profile ID
Test Tab
Review Data
Do Test
Unit Under Test
(UUT) Identity
Re-Zero
Stop
As Found/As Left
Test Selection
Test Profile/
Results Window
43
11.0 SPECIFICATIONS
11.1 MEASUREMENT
Accuracy........................................................ ........................... ±0.04% FS
Precision................................................................................. 0.0002” W.C.
Calibration Stability (Span)........................................................ 0.2% FS/yr
Calibration Adjustment.................................................................. zero tare
Resolution................................................................................. up to 1 ppm
Compensated Temperature Range ....................................... 40
o F to 120 o F
Storage Temperature Range.................................................. 40 o F to 160 o F
Temperature Effect (Zero).................................................... none, zero tare
Temperature Effect (Span)............................................................ 0.01%/
o F
Certification............ ......................NIST traceable certification for reference
pressure sensors and voltage/current meters.
11.2 CONTROL
Controlled Pressure Stability....................................... 0.0002” W.C., typical
Minimum Controlled Pressure .............................................. 0.00005” W.C.
Dual Reference Pressure Ranges........................................ see order info.
Pressure Types.......................................................... gauge and differential
Overpressure Limit............................................................................. 5 psid
Control Time ....................................................................... user selectable
11.3 GENERAL SPECIFICATIONS
Pressure Units (Selectable).....................in. W.C., Pa, kPa, mbar, cm W.C.
Warmup...................................................................................... 30 minutes
Reading Rate....................................................20 readings/second, typical
Gravity/Orientation........................................................................ negligible
Shock and Vibration................................................................5g, maximum
Communications.............................................................................. RS 232
Display......................... 3.5” transflective type TFT color, QVGA, 64-k color
Keypad................. pocket PC touch pad and external ASCII keyboard plug
Size......................................... 11” x 14” x 6” (27.9 cm x 35.6cm x 15.2 cm)
Weight................................................................................... 16 lbs. (7.3kg)
Pressure Media.......................................... clean, dry. non-corrosive gases
Power................... 120/240 AC, 50/60Hz, LITHIUM-ION battery - 8 hours
operation
Pressure Transducer Interface -
Pressure Fittings............................... barbed, plug-in o-ring quick connects
Electrical ..................................................................... banana plug jacks
Voltage Meter ............................................... ±0.005% FSO at ±10 VDC
Current Meter .................................................. ±0.005% FSO at 4-20mA
Excitation ..... .............24 VDC nominal for 4-20 mA output, 5 to 24 VDC
for voltage output
