Static Pressure Accessories
159 Swanson Road, Boxborough, MA 01719 / Tel:978-263-1400/Toll Free: 800-257-3872/Email: [email protected]/Web: www.setra.com

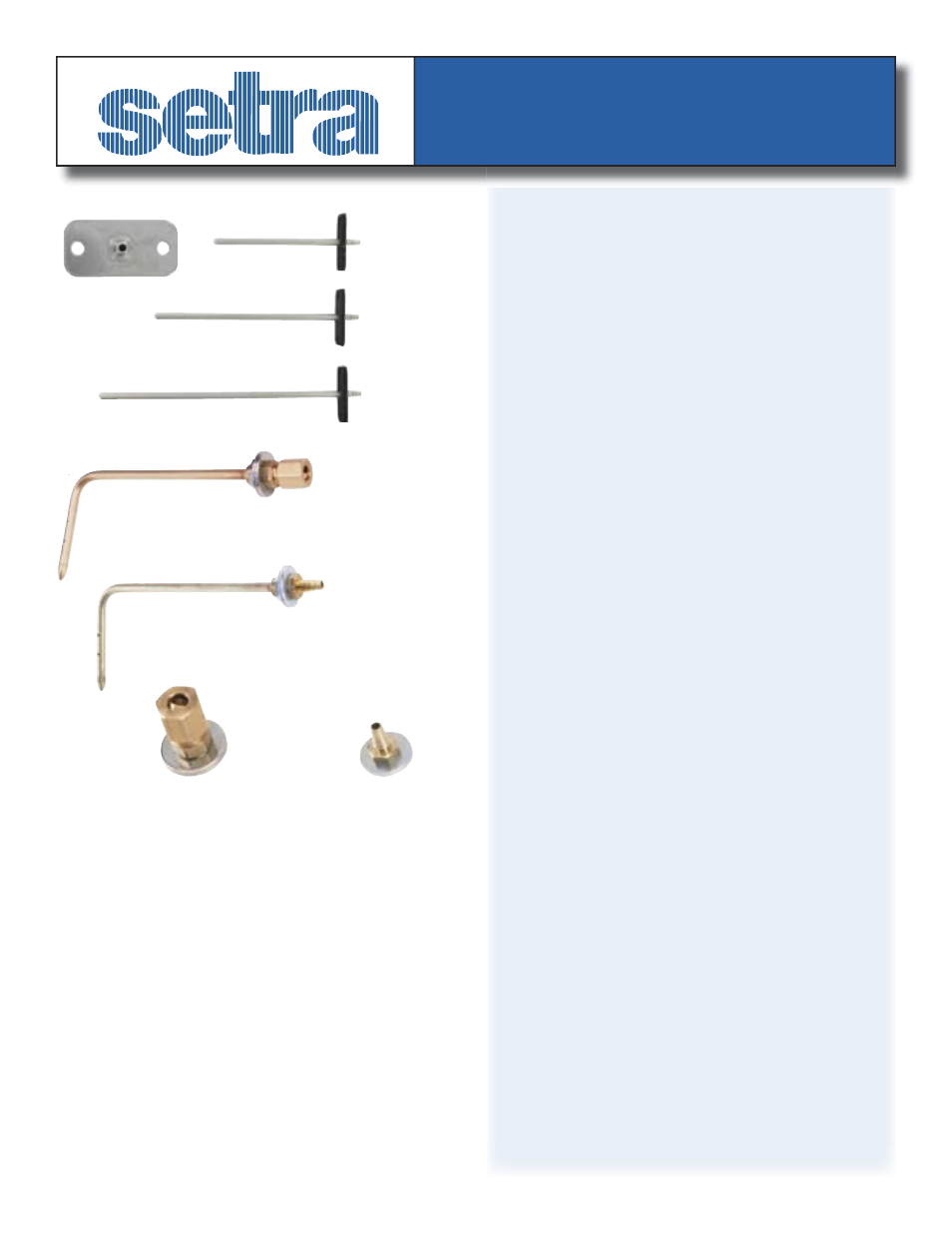

Models
The Stainless Steel Static Pressure Tips are used to measure
static pressure in ducts or rooms. They are to be connected to differential pressure
switches and transmitters. Two static pressure sensors are used in applications where
differential pressure is required across a fi lter or coil. These sensors include a mounting
fl ange with integral rubber gasket and two screws for simplifying mounting on a duct.
Brass Static Pressure Tips: These sensors are for use with manometers,
Magnahelic gages, pressure switches and other controllers to pick-up or sense static
pressure drop across air fi lters and cooling coils, blower input and discharge pressures,
etc. The angled tips shown have 4” insertion depth. Each has four radially drilled
0.040” sensing holes. No. 242904 and 242905 are suitable for use in low velocity
systems or where the need for accuracy is less critical.
242901-04: Static Pressure Sensor, 4” straight static pressure tip with fl ange
242901-06: Static Pressure Sensor, 6” straight static pressure tip with fl ange
242901-08: Static Pressure Sensor, 8” straight static pressure tip with fl ange.
242902-04: Static Pressure Tip for 1/4” metal tubing connection
242902-06: Static Pressure Tip, with 6” insertion depth
242902-08: Static Pressure Tip, with 8” insertion depth
242902-12: Static Pressure Tip, with 12” insertion depth
242903-04: Static Pressure Tip for 3/16” and 1/8” I.D. plastic or rubber tubing
242903-06: Static Pressure Tip, with 6” insertion depth
242904: Static Pressure Fitting for 1/4” metal tubing connection
242905: Static Pressure Fitting for 3/16” and 1/8” I.D. plastic or rubber tubing
242902
242901-04
242901-06
242901-08
Flange View
