1.0 GENERAL INFORMATION

Thank you for purchasing the Setra Remote Monitoring Display (SRMD). The
SRMD is a digital panel meter with a bright 1” LED display for visibility at a
distance.

Before installing, please check the box and ensure the following items are
included:

1. Mounting Plate (with single or dual display in color(s) ordered:

green, red, or blue)

2. Faceplate Bezel (White or Metallic Finish, as ordered)

3. Engineering units label set

Note: If a dual display is ordered with a SRH temperature or humidity sensor and a color specified to match
each (or your own sensors), wire the correct sensor to the correct display.

The SRMD can be powered by 24 VAC/DC and can accept 0 to 5 or 0 to 10
VDC transducer signals from remote sensors. These field sensors can be tem-
perature, humidity, CO2, etc.

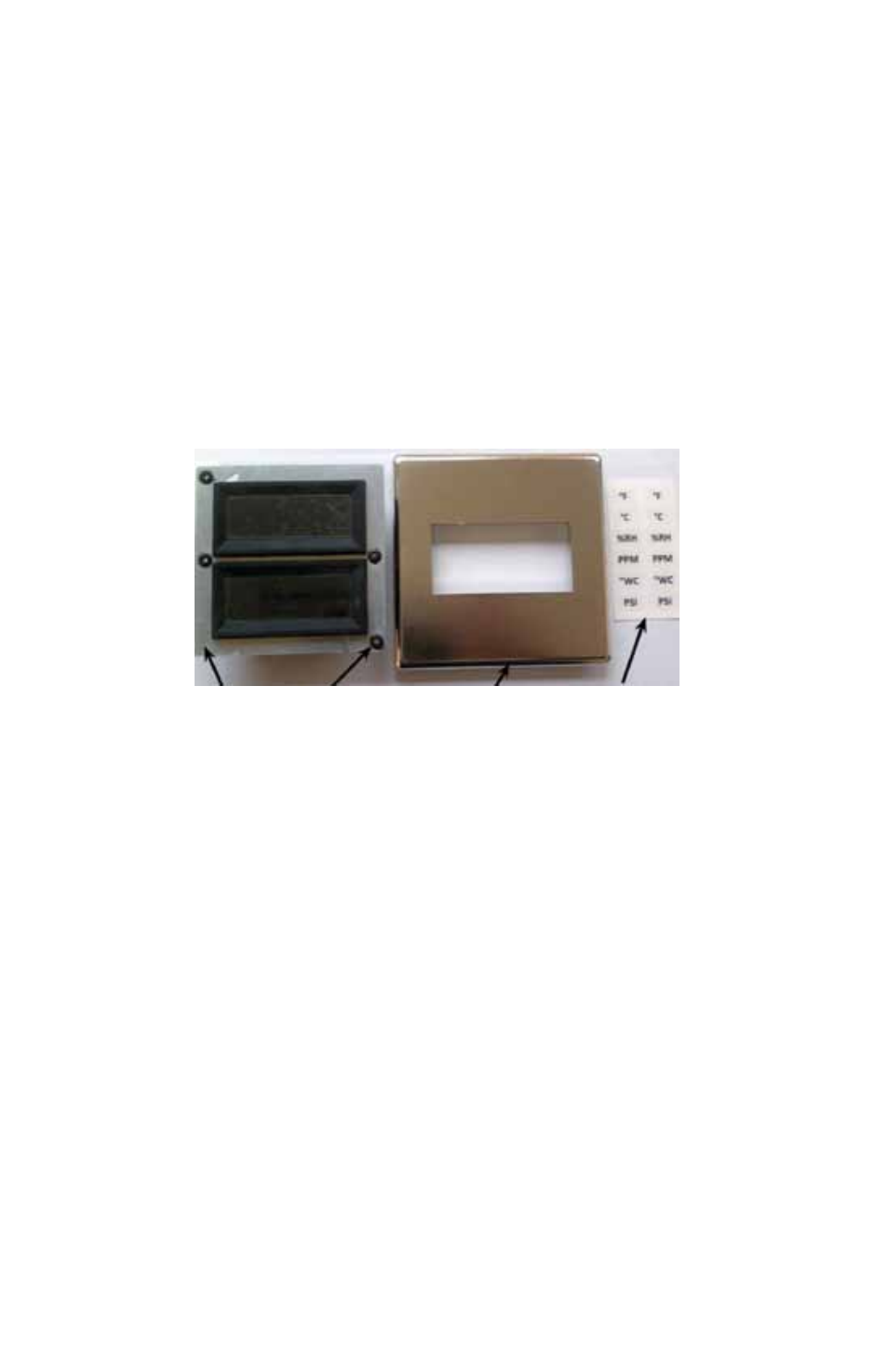

Fig. 1.

Model SRMD

Setra Remote Monitoring Display

Mounting Plate Grommets for

Faceplate/Bezel

Faceplate/Bezel

Engineering Unit Labels
