5.4 GETTING STARTED
1. Open calibrator top.
2. Turn on calibrator power (power switch on right side of the calibrator).
3. Once calibrator is powered up, re-zero function begins automatically.
Please wait for completion. (User will hear operation of solenoid valves
and stepper motor).
4. Look for orange light (flashing or solid) on PDA (if light does not come
on, see section on battery charging).
5. Turn on PDA power (button in upper right corner of the PDA).
6. After powering up, tap the icon labeled Calibrator (tap START Menu
icon, tap on programs folder and tap on CALIBRATOR icon). Also, the
lower right button is programmed at the factory to start Calibrator soft-
ware.

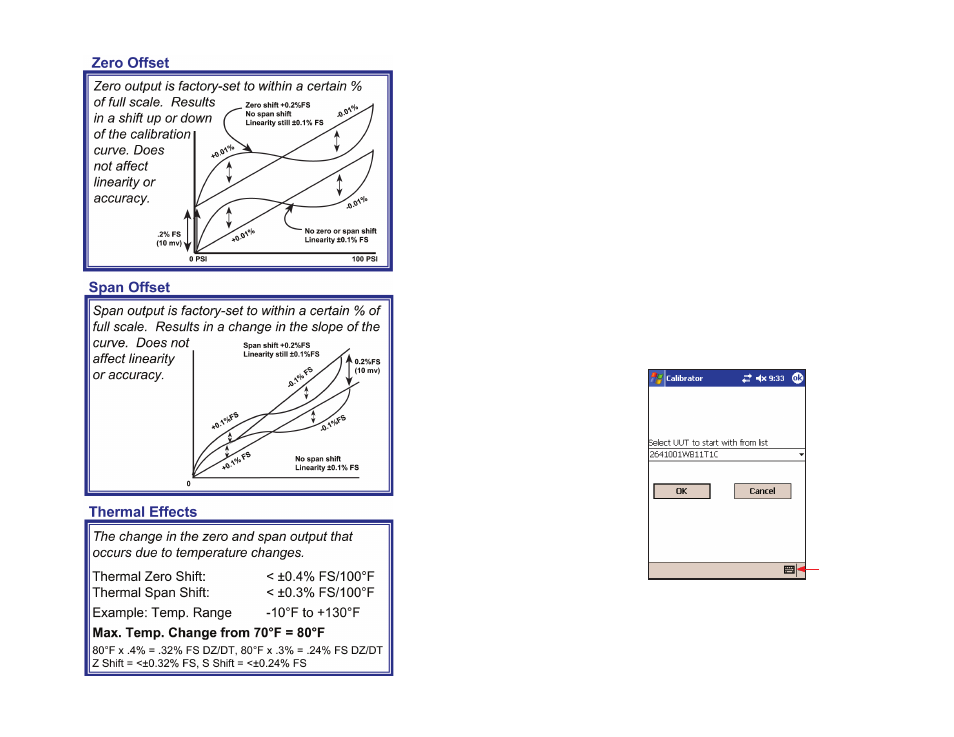

7. Software will startup with UUT selection Page (see Diagram 6). Select
desired UUT and press “OK” or press “Cancel”. Cancel will setup UUT as
±0.25 in. W.C. transmitter.
Keyboard Button - Pressing this button calls up an on-screen keyboard for
inputting data.
Diagram 6 Keyboard
Button
