TCM2.6 Board and Cable
The default orientation for the TCM2.6 is for the silk-
screened arrow to point in the “forward”
direction. That puts the edge opposite of the Molex connector as the front edge of the board.

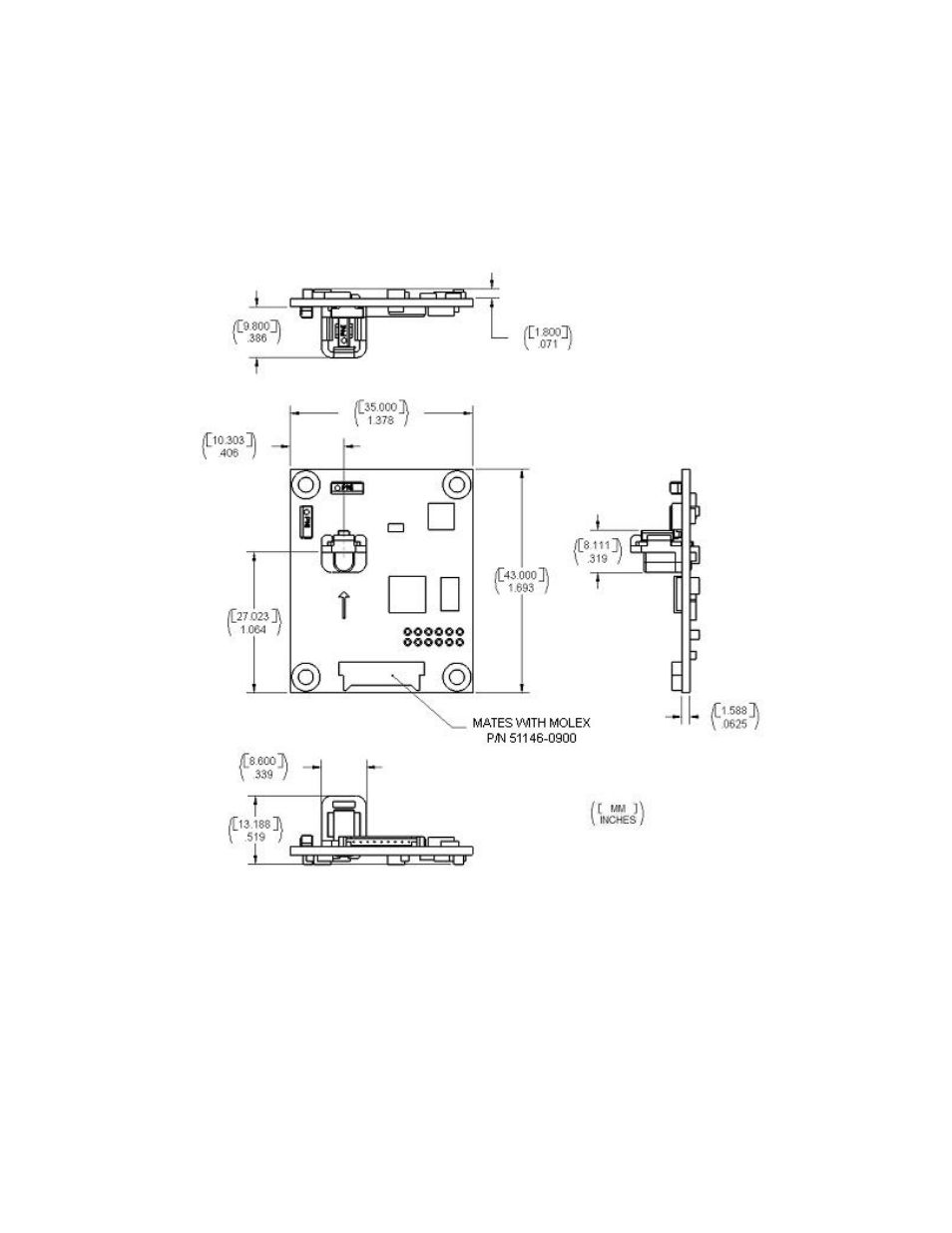

Figure 7: TCM2.6 Board Drawing
