2 Speed Touch Home Tour
12 / 88
3EC 17058 AAAA TCZZA Ed. 02
2.2.2 Front Panel and Rear Panel
adsl 0632/ 02

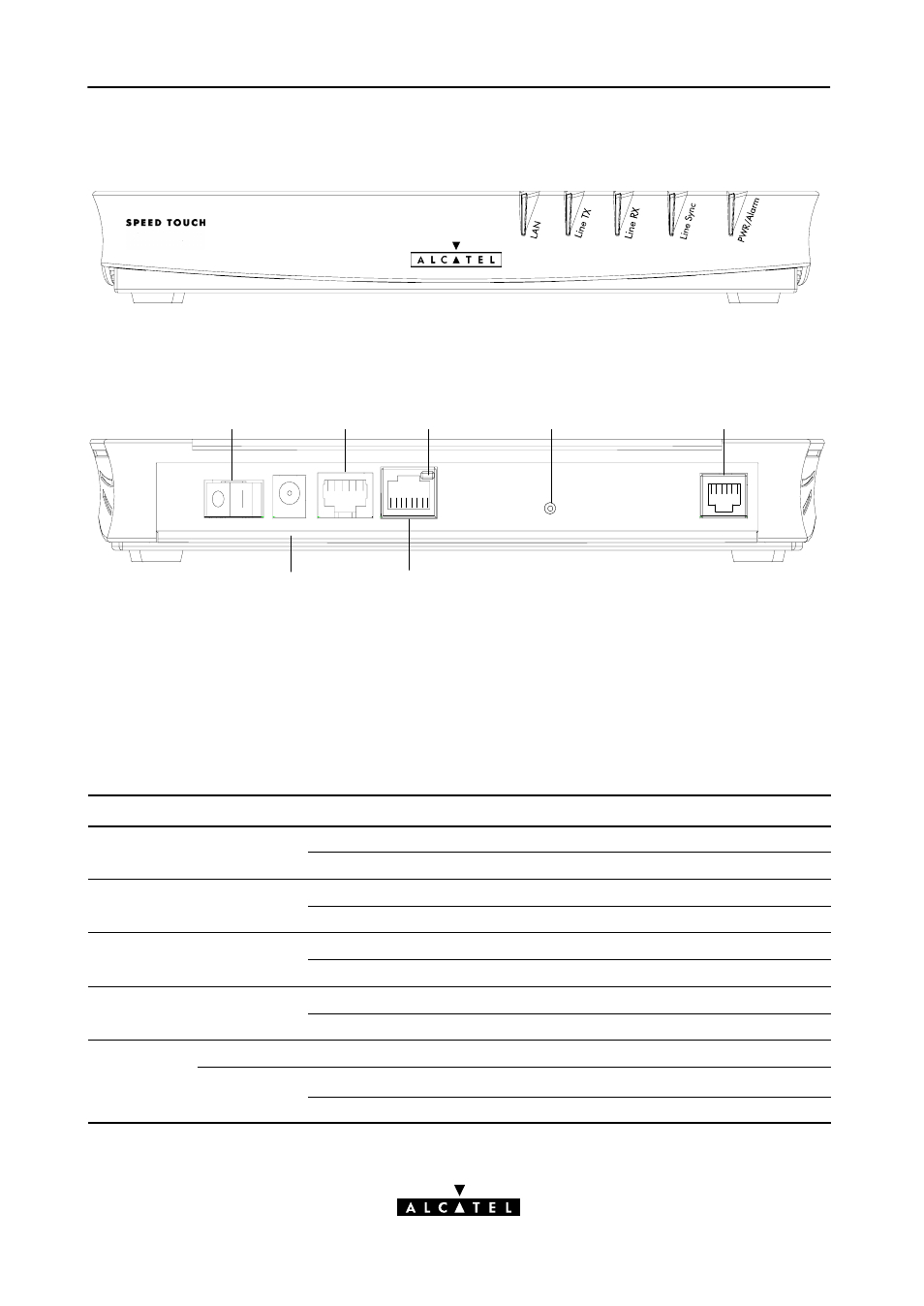

Figure 3 Front Panel of the STHome with 5 Light Emitting Diodes (LEDs)
Power Switch
Power Socket
ATMFĆ25
Interface
Ethernet
Interface
Link Integrity
Led
Line
Interface
adsl 0631/ 01
Push Button
Power DC 10Base T/MDI-X ATMFĆ25 Defaults Line
Figure 4 Rear Panel of the STHome
2.2.3 LEDs
Following table explains the functions of the front LEDs:
Table 1 STHome LED Status Overview
LED Name LED Color LED State Explanation
LAN green flashing data is flowing from/to the Ethernet interface g
off no activity on the Ethernet interface
Line TX green flashing ATM cells are being sent over the ADSL line g
off no transmission activity
Line RX green flashing ATM cells are being received via the ADSL Line g
off no reception activity
Sync green on ADSL line synchronization achieved y g
flashing during initialization of the ADSL Line
PWR/Alarm green on power on, normal operation
red flashing power on, Power On Self Test ( POST) pending
on power on, POST failed
