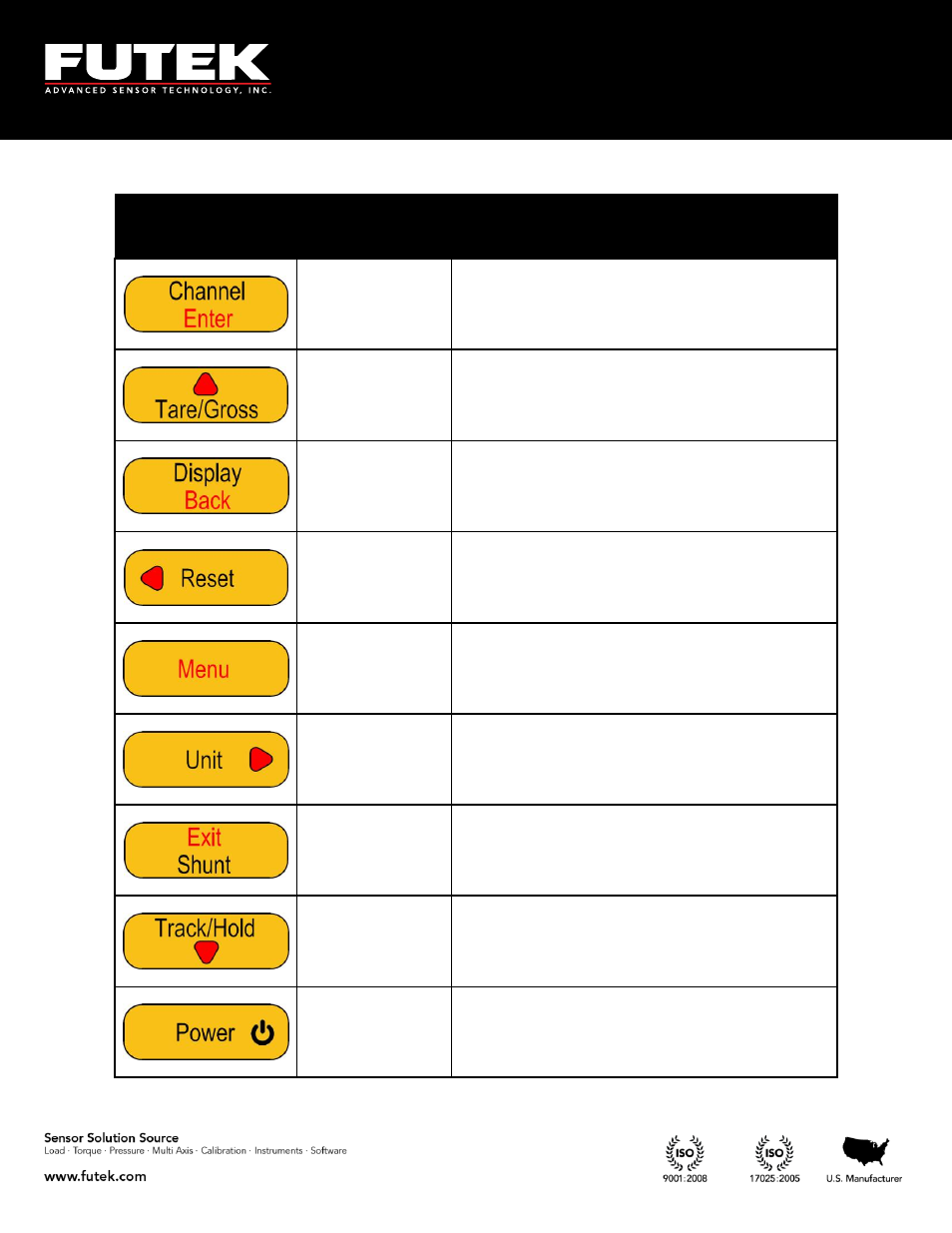

Front Panel Button
Function in
Menu Mode
Function in Normal Mode
Enter Displays channel information
▲Arrow
Allows the user to toggle between displaying the tare
and gross values. This can be used to remove any
fixture weights.
Back
Allows the user to toggle between two different size
fonts. This key selects one of four different states in
normal mode (peak, tracking, valley, and normal)
◄ Arrow Allows the user to reset the peak/valley
N/A Start navigation
► Arrow
Allows the user to toggle between four groups of
engineering units (Force, Torque, Pressure, and
Displacement) and the standard mV/V.
1
Exit
Allows the user to shunt the current reading. The
device shunts a resistor across the -Excitation and -
Signal connections.
2
▼ Arrow
Allows the user to freeze the current reading. HOLD
will be displayed on the LCD showing that it has
been held. When the button or any other key is
pressed, the hold command will be cancelled.
2
ON/OFF ON/OFF
