Programming the Remote Display Keypad to the Controller
In the situation that the terminal display address is required to be set up, the following procedure applies.
Set the correct address on the display, connect to the controller and then power up the unit.

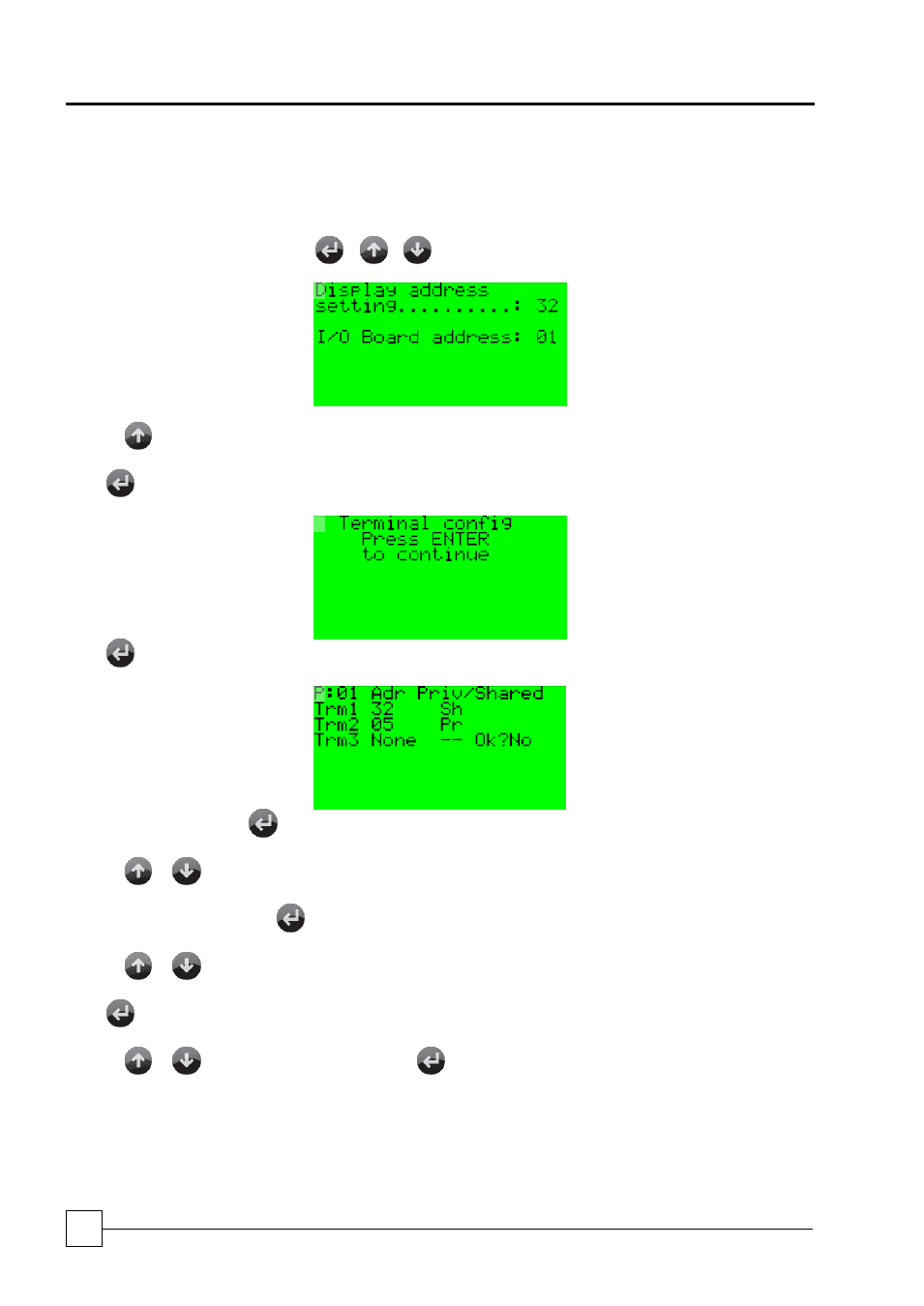

By simultaneously pressing and holding
+
+
, the display will show the Display Address screen.
Pressing
will change the I/O board address to the controller address 1.
Press
. The following screen will be displayed:
Press
again. The display will show the following terminal configuration screen:
Selecting Terminal 1
– Press
until the cursor is underneath
Pressing
or
will change the 00 to the required value 32.
Setting Private to Shared
– Press
until the cursor is underneath the Pr (PRIVATE) symbol.
Pressing
or
will change the
to
(SHARED) symbol.
Press
until the cursor is underneath the NO.
Pressing
or
will change the NO to YES. Press
and the display is programmed.
