Positioning The installation position should be selected with the following points in mind:

Position on a stable and even base, levelled to ensure that the compressor
operates correctly.

Levelling should be to +/- 5mm.

Where vibration transmission to the building structure is possible, fit pad anti-
vibration mounts.

Observe airflow and maintenance clearances.

Pipework and electrical connections are readily accessible.

Where multiple units are installed, due care should be taken to avoid the
discharge air from each unit adversely affecting other units in the vicinity.

Within a side enclosed installation, the fan MUST be higher than the
enclosing structure.

Ensure there are no obstructions directly above the fans.

Allow free space above the fans to prevent air recirculation.
CAUTION Prior to connecting services, ensure that the equipment is installed and
completely level.
REAR
092 Models
LEF
T
RIG
HT

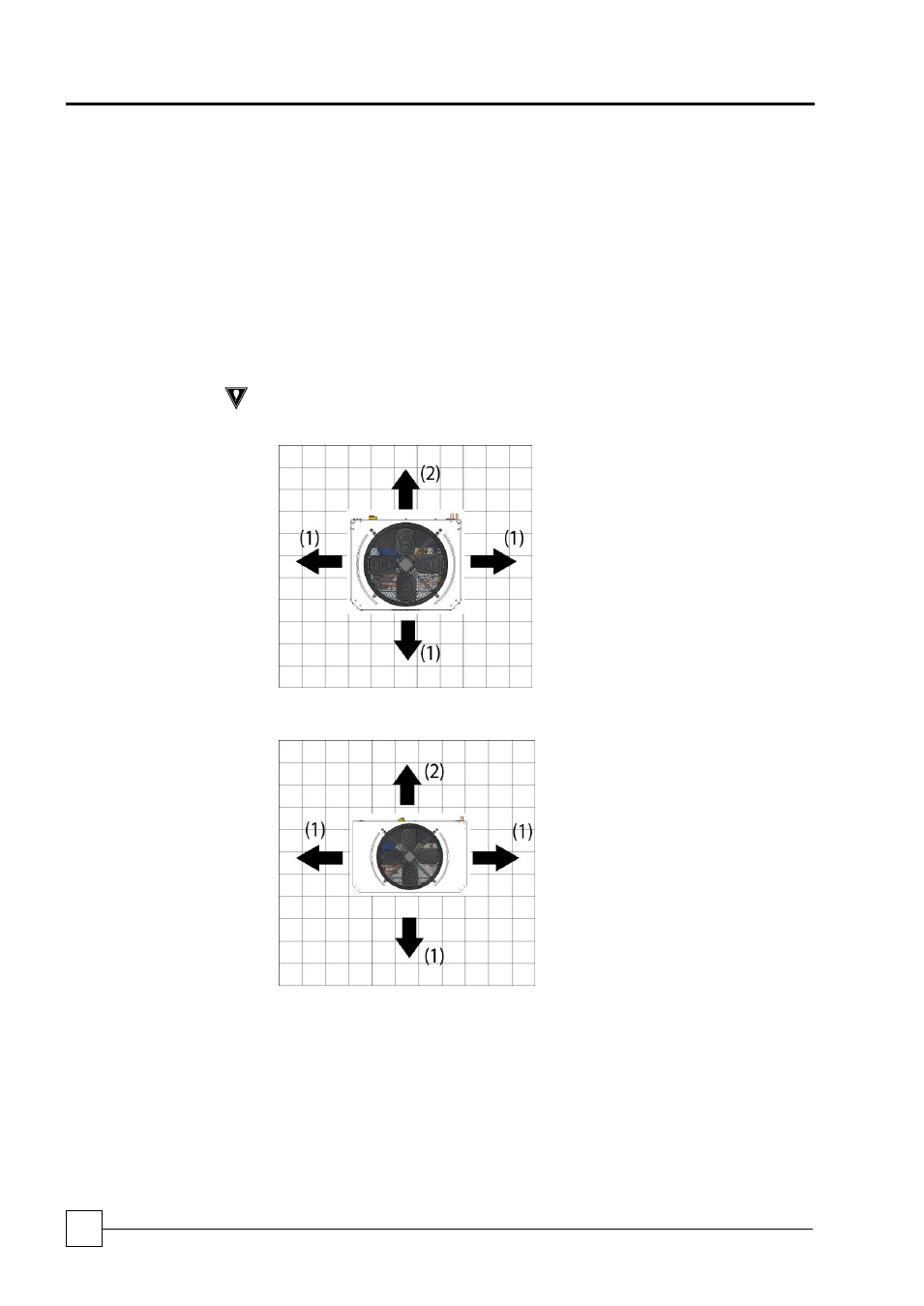

(1) Airflow clearance minimum 300 (mm),
(2) Maintenance clearance minimum:
Single unit minimum 750mm
FRONT
REAR
122 Models
LEF
T
RIG
HT
(1) Airflow clearance minimum 300 (mm),
(2) Maintenance clearance minimum:
Single unit minimum 750mm
FRONT
