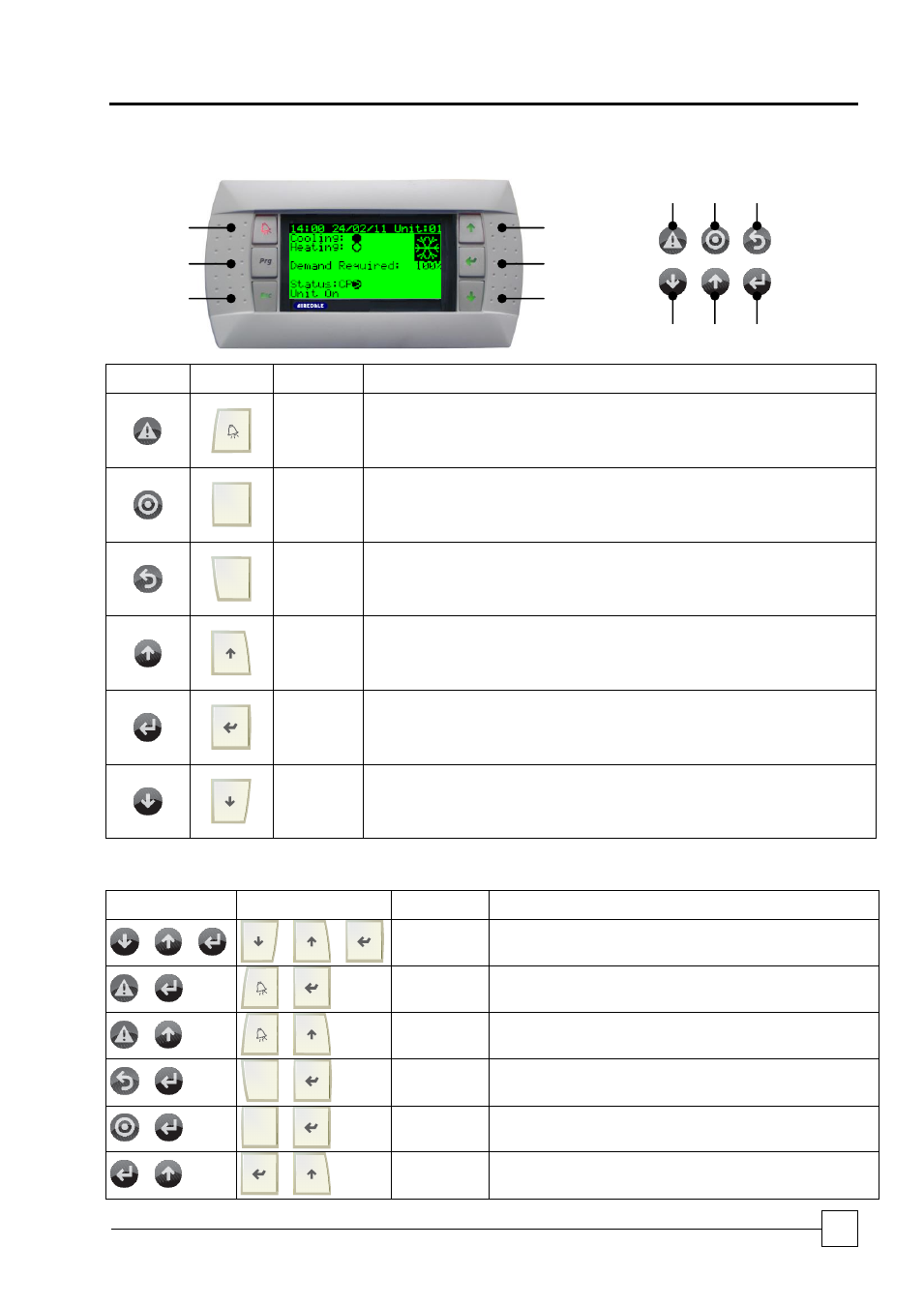

Use of Display Keypad Buttons
Remote Display Keypad Built-in Keypad
Built-in
Display
Remote
Display
Function Description
1. ALARM
When one or more alarms are active the ALARM button will illuminate red.
Pressing the ALARM button once will indicate information regarding any active alarms.
Pressing the ALARM button twice will reset any active manual-reset alarms.
Prg 2. PRG Pressing the PRG button will select the main navigation menu.
Esc 3. ESC Pressing the ESC button will return the user to the main display screen showing unit status.
4. UP
Pressing the UP button can either:
Scroll through the various display screens, providing the cursor is in the top left position.
Increase the value of a set point adjustment.
5. ENTER
Pressing the ENTER button will confirm any set point adjustments and move the cursor to
the next available set point.
6. DOWN
Pressing the DOWN button can either:
Scroll through the various display screens, providing the cursor is in the top left position.
Decrease the value of a set point adjustment.
Use of Extra Function Buttons
Built-in Display Remote Display
Key
Combinations
Description
+ +
.+. .+.
UP + DOWN+
ENTER
Allows access to controller address.
+
+
ALARM +
ENTER
Allows access to controller system information.
+
+
ALARM + UP
Allows access to change controller address (only when
display address is zero).
+
Esc
+
ESC +
ENTER
Allows the user to switch between the preinstalled languages.
+
Prg
+
PRG +
ENTER
Temporarily displays the address of the controller.
+
+
ENTER + UP Change unit on remote display keypad.
