GLA-1000 ADVANCED
39

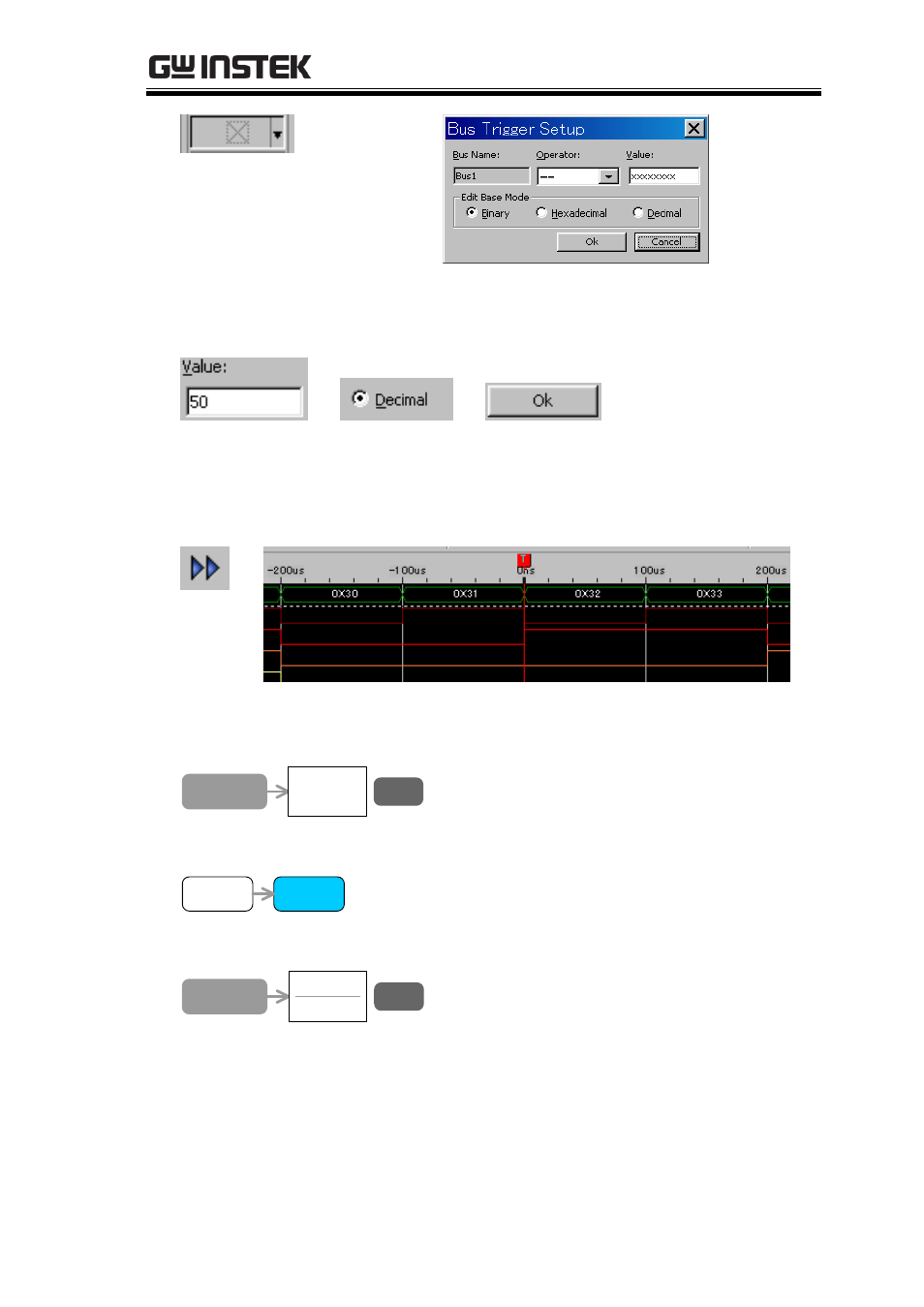

3. Click the Decimal radio button, enter a number between 0 and
254 in Value corner, and press OK.
→ → (Decimal 50 selected)
4. Click the Repetitive Run icon or press F6 to acquire data
continuously. GLA constantly triggers and the B0-B7 bus shows
the setup value (0x32, decimal 50, in the below figure).
5. (On GDS-2000) Press the Save/Recall key → F1 to reset the
system.
Save/Recall
Default
Setup
F 1
6. Press the CH2 key to activate CH2.
CH2 CH2
7. Press the Display key → F1 (Vector) to select vector drawing.
Display
Type
Vectors
F 1
8. Separate CH1 and CH2 wave vertically for 3 divs, using the
vertical position knobs.
