GLA-1000 ADVANCED
35
GLA-1000 Overview
GLA-1000 series are PC-based portable, generic purpose digital logic
analyzer aimed at product design and educational field.
Series lineup
Model Channel & Memory Model Channel & Memory
GLA-1016 16, 256kbits per CH GLA-1032 32, 128kbits per CH
GLA-1132 32, 1Mbits per CH

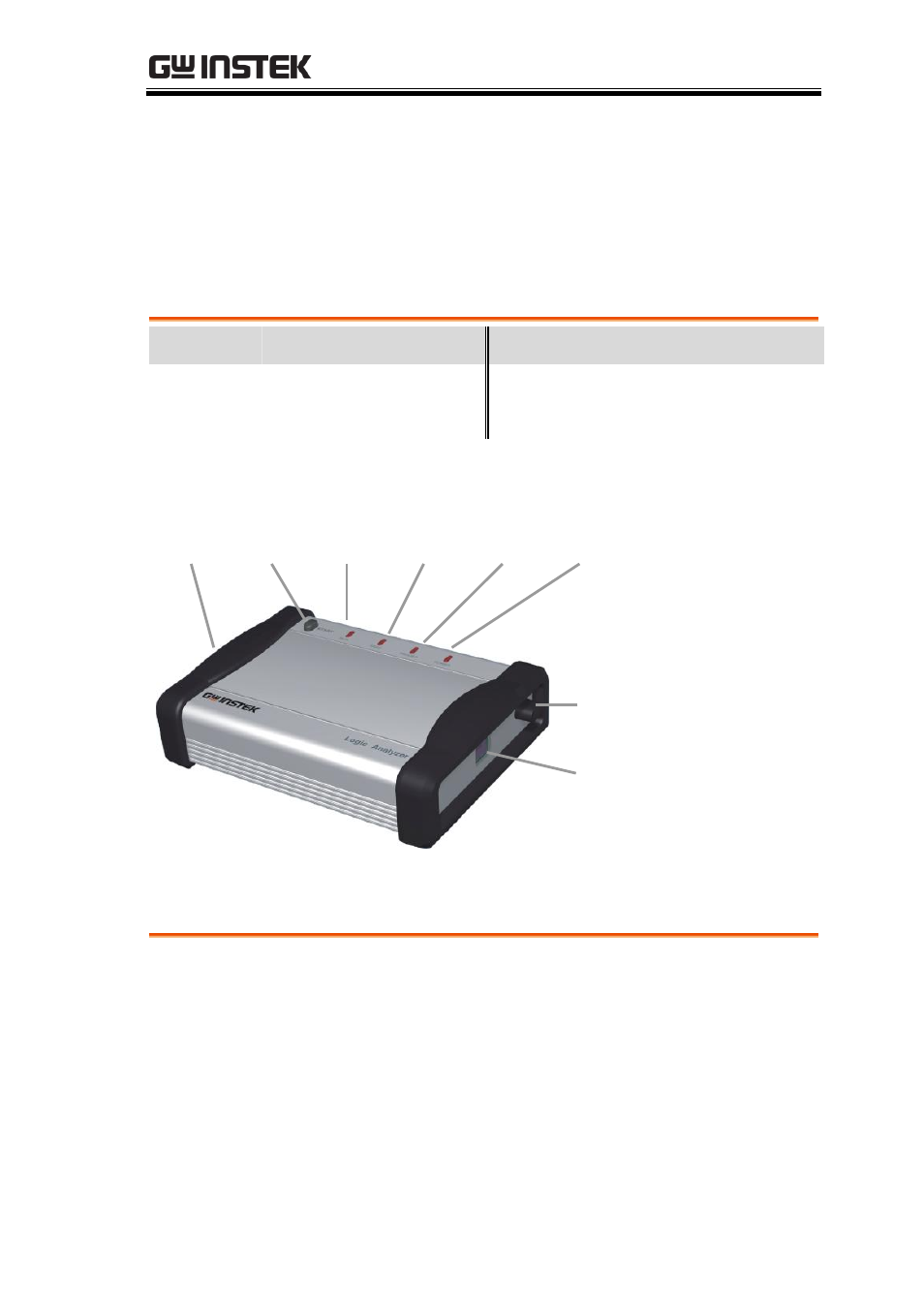

Panel overview
Start
Switch
Power
LED
Trigger
LED
Read
LED
Run
LED
Power
Switch
USB
Connector
Input
Connector
Main Features
Characteristics  100MHz full bandwidth
 External clock range: 0.001Hz ~ 100MHz
 Max. x255 ratio data compression
 Signal characteristic filtering: Enable function
 I2C, RS-232C, SPI waveform analyzer
 Waveform statistics function
 PC operation, GUI environment, USB bus power
