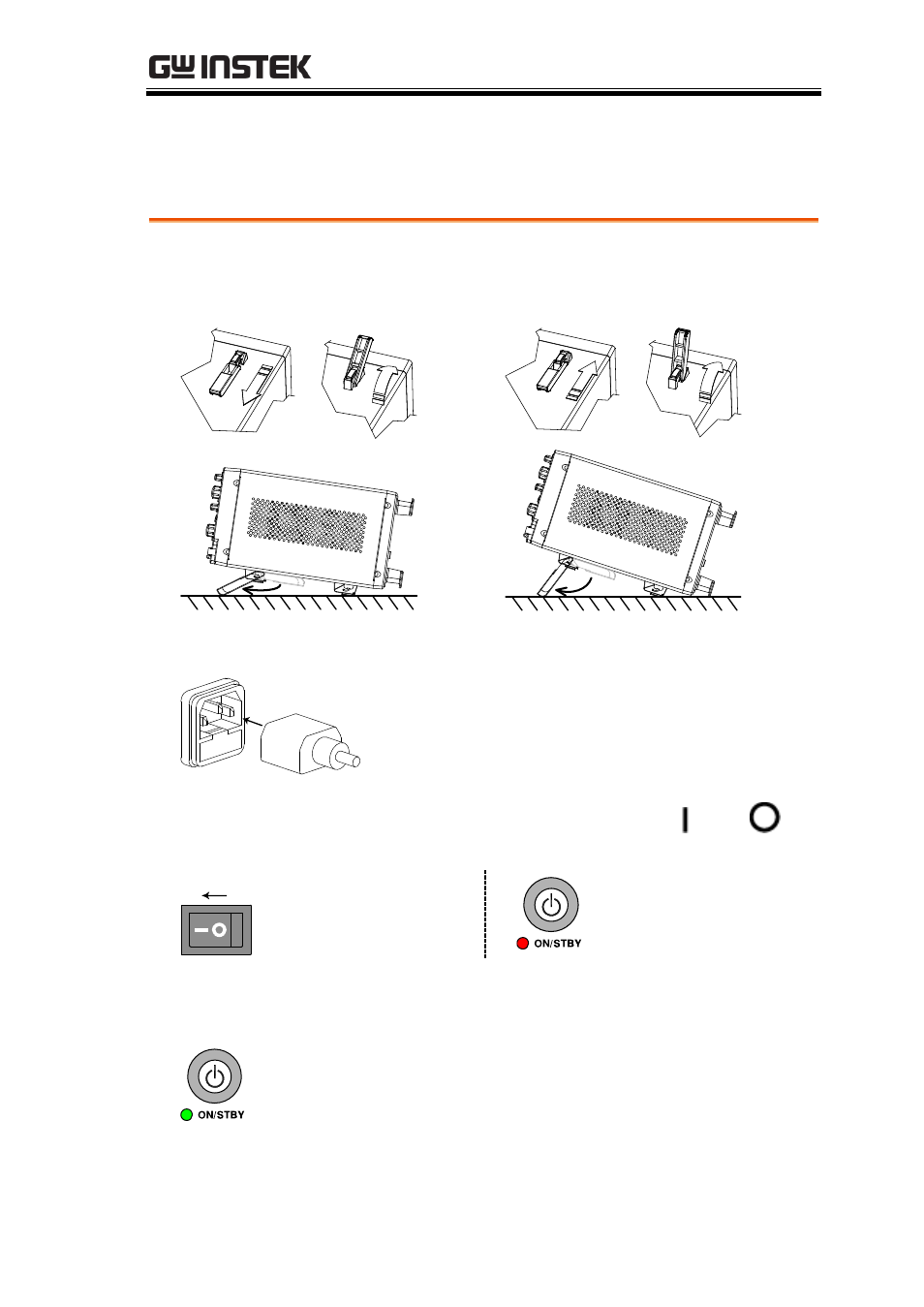

1. Power up GDS-2000

Here you will learn how to properly place and power up GDS-2000.

1. Place GDS-2000 on a flat, non-conductive surface and tilt stand it.

Low angle

High angle

2. Connect the power cord to the rear panel socket.

3. Turn On the main power switch on the rear panel. : On,

:

Off. The ON/STBY indicator on the front panel turns red.

4. Press the ON/STBY key. The indicator turns green and the

display becomes active in 6 ~ 8 seconds.

5. Go to the next step.
