GRF-1300A User Manual and Teaching Materials

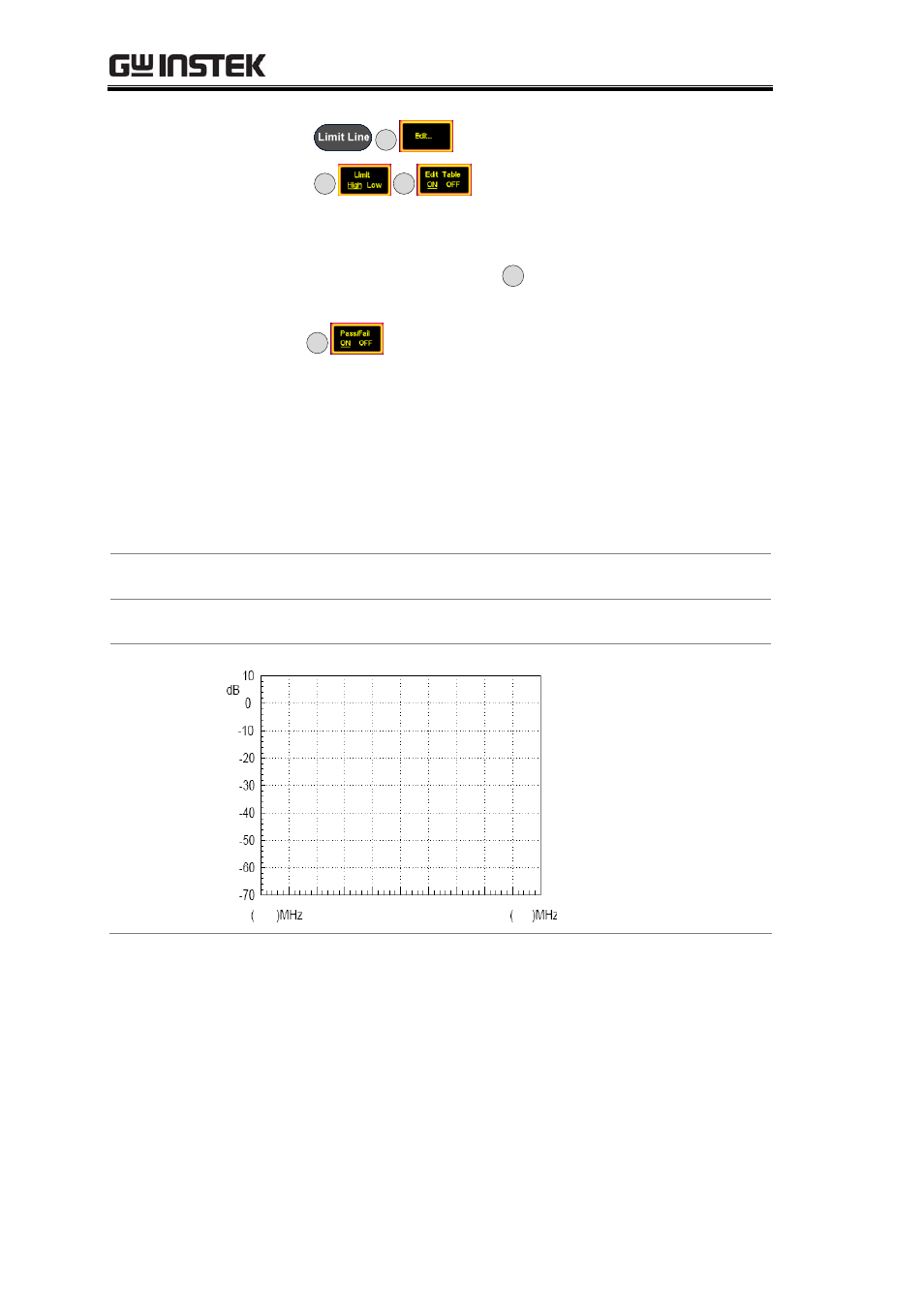

Step5
F3
Step6
F1 F2
Below the display, you can set the magnitude and frequency of
each point. Move the cursor to select a point and edit it with the
number pad and unit keys. Press
F6
to return to the previous
menu.
Step7
F1
6. According to the procedures above, students can set the limit
lines.
7. Adjust the amplitude knob on the GRF-1300A. Observe the
Pass/Fail test results and record the results to table 9-1.
8. The same functionality can be achieved by sending remote
commands from a PC using HyperTerminal.
Experiment
results
Table 9-1. Results for adjusting the position of the amplitude knob.
5MHz frequency
deviation test
results.
94
