Page 86
GRF-1300A User Manual and Teaching Materials

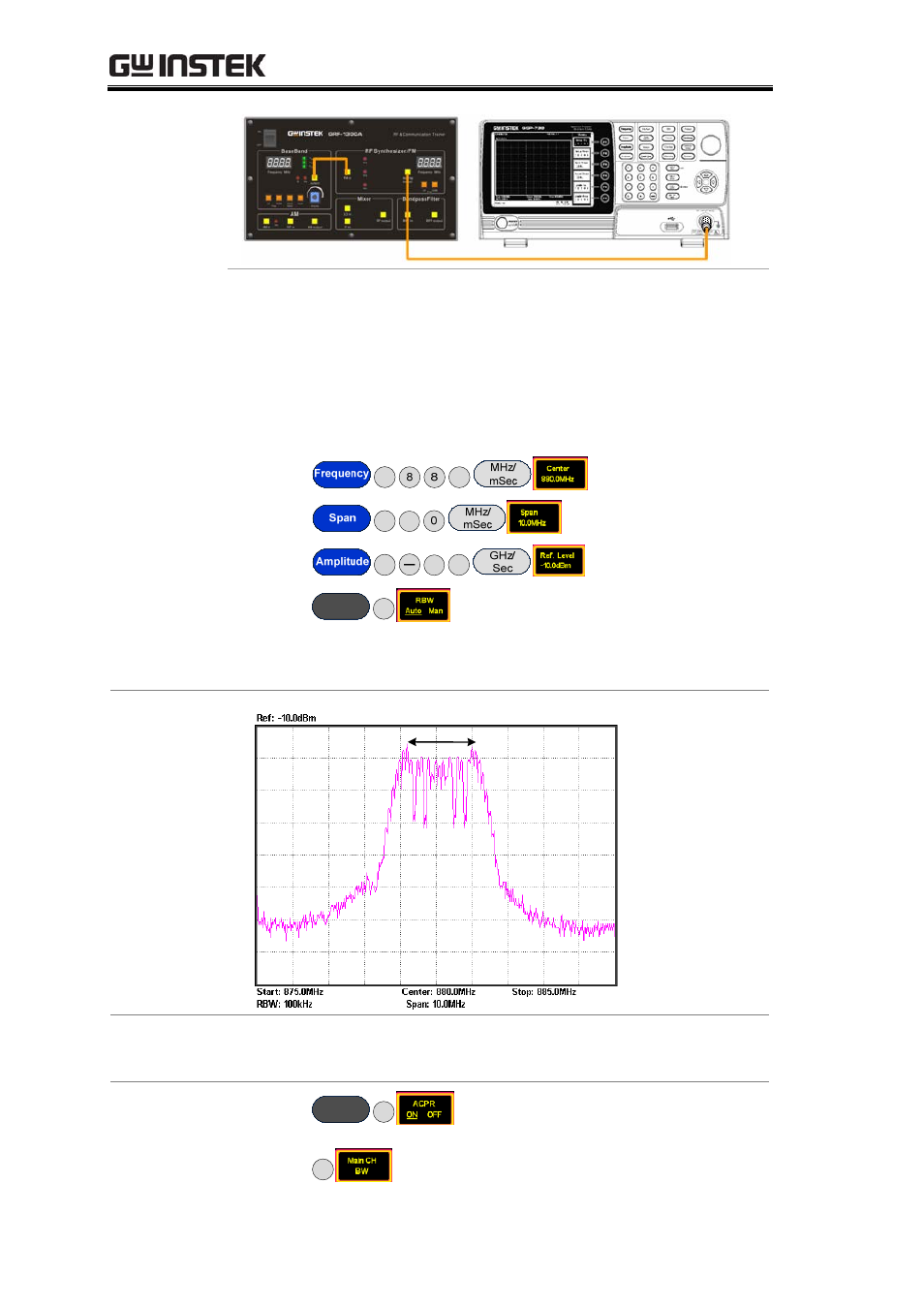

3. Set up the GSP-730 as follows:
• Center frequency:880MHz
• Span: 10MHz
• Reference level: -10dBm
• RBW: Auto
Step1
F1
0
Step2
F1
1
Step3
F1
1
0
Step4
BW
F1
4. Adjust the FM frequency deviation to 1MHz (2MHz in total)
with the amplitude knob.
2MHz
5. Measure the ACPR and OCBW after these settings are
performed.
ACPR
measurement
Step1
Meas
F2
Step2
F1
84
